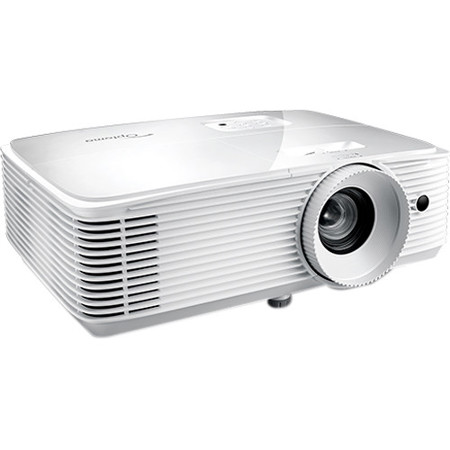

Optoma X412 Bright XGA Projection, 1024x768, 4200 Lumens, 245W Lamp

SKU: OUX412

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Optoma X412 Specifications

Technical

Technical

Jump to...
  • Aspect Ratio

    4:3 (native), 16:9, LBX and auto compatible

  • Audio

    10W

  • Brightness

    4,200 ANSI lumens

  • Compatible Aspect Ratio

    16:9, LBX and auto compatible

  • Connections

    2x HDMI 1.4a, 1x VGA, 1x audio in, 1x USB-A, 1x VGA out, 1x audio out

  • Contrast Ratio

    50,000:1

  • Control Unit

    RS232

  • Display Technology

    Texas Instruments 0.65" XGA DMD

  • Displayable Colors

    1.07 billion

  • Image Size

    27.5 - 304.4" (69.8 - 773.1cm)

  • Keystone Correction

    +/- 40 Degree Vertical

  • Light Source Type

    245W

  • Light Source Life

    4,000/10,000/15,000 (Bright/ECO/Dynamic)

  • Maximum Resolution

    UXGA (1600 x 1200)

  • Native Resolution

    XGA (1024 x 768)

  • Noise Level

    26dB

  • Offset

    115% (+/- 5% variance)

  • Operating Temperature

    41-104 Degree F (5-40 Degree C), 85% max humidity

  • Power Consumption

    325W max (Bright), 295W typical (Bright), 225W max (Eco), 205W typical (Eco)

  • Power Supply

    AC input 100-240V, 50-60Hz, auto-switching

  • Projection Distance

    3.3 - 32.8' (1 - 9.9m) (without zoom)

  • Projection Lens

    F=2.41-2.53, F=21.86-24mm

  • Projection Method

    Front, rear, ceiling count, tabletop

  • Projection Screen Size

    27.5 - 304.4" (69.8 - 773.1cm)

  • Remote Control

    Full size remote

  • Throw Ratio

    1.94 - 2.16:1 (distance/width) - 5% variance

  • Uniformity

    85%

  • Zoom Type

    1.1x optical, 0.8 - 2.0x digital

Compatibility

Jump to...
  • Computer Compatibility

    VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA

  • Horizontal Scan Rate

    15.375-91.146 KHz

  • RoHS

    Compliant

  • Vertical Scan Rate

    50- 85 Hz (120Hz for 3D feature projector)

  • Video Compatibility

    PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p

Physical

Jump to...
  • Security

    Kensington lock port, password (OSD)

  • Dimensions (W x H x D)

    12.4 x 9.5 x 4.5" (31.4 x 24.1 x 11.4cm)

  • Weight

    7.7 lb (3.49kg)

About Optoma X412

Exceptional brightness and lamp life
Project incredibly bright 4,200 lumens, XGA images with the Optoma X412. REC.709 and sRGB color profiles with a 50,000:1 contrast ratio ensures sharp and vivid images, ideal for classrooms, meeting and training rooms.

The 1.1x zoom, keystone correction and RS-232 control deliver flexible installation options. Powerful 10-watt audio fills a room with loud and crisp audio to further enhance media and presentations.

Robust inputs include HDMI and VGA for connectivity to a wide range of devices. A 15,000-hour lamp life enables many years of use with minimal maintenance.

DLP Technology
DLP (Digital Light Processing) is a proprietary technology from Texas Instruments that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

Direct Power On
Turn on the projector directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.

MHL Connectivity
Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos and share photos on the big screen.

Long Lamp Life
Reduce the number of lamp changes with long lamp life.

RS-232 Control
Take control of the projector using HEX or ASCII commands via RS-232 cable.

USB Power
Power and charge your USB devices with the USB power port. The port delivers up to 1-amp and ideal for some HDMI streaming sticks.

Signal Power On
The projector powers on when it receives a signal through the HDMI input. This ensures the projector is turned on at the same time as the source device.

Integrated Speaker
Complete your home entertainment experience with the convenience of a powerful built-in speaker. Built-in speakers provide exceptional sound quality and are easy to set up without the need for costly external speakers.

Optoma X412 Features

  • Incredible 4,200 lumens and 50,000:1 contrast ratio
  • Flexible installations with 1.1x zoom and RS232
  • Accurate color with sRGB & REC.709 color profile
  • Powerful 10 watt speaker
  • Minimal maintenance with 15,000 hour lamp life

Key Features

  • Incredible 4,200 lumens and 50,000:1 contrast ratio
  • Flexible installations with 1.1x zoom and RS232
  • Accurate color with sRGB & REC.709 color profile
  • Powerful 10 watt speaker
  • Minimal maintenance with 15,000 hour lamp life

What's in the box:

  • X412 Bright XGA Projection
  • AC Power Cord
  • Remote Control
  • Batteries for Remote
  • Carrying Case
  • Quick Start Guide
  • Optoma 3 Year Warranty on Projector and 1 Year on Lamp
