Optoma X416 XGA 3DLP Projector, 4300 Lumens, 1024x768, Full 3D

SKU: OUX416

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Optoma X416 Specifications

  • Display Technology

    Single 0.65" DarkChip 3 WXGA DLP Technology by Texas Instruments

  • Native Resolution

    XGA 1024 x 768

  • Brightness (Bright Mode)

    4300 ANSI Lumens

  • Contrast

    20,000:1

  • Lamp Life

    7000/6000/5000/3000 (hrs)

  • Throw Ratio

    1.39 - 1.9:1

  • Zoom Type

    1.36x

  • Lens Shift

    +16.9% Vertical

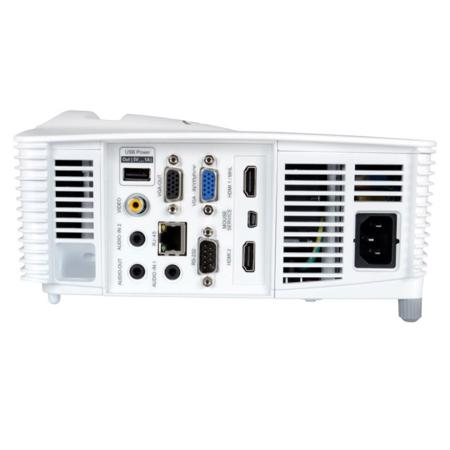

  • I/O Connectors

    2 x HDMI (1.4a 3D support) + MHL v2.2, VGA (YPbPr/RGB), Composite, 2 x Audio in 3.5mm, VGA out, Audio out 3.5mm, RS232, RJ45, USB-A Power, USB mouse/service

  • Speaker (Watts)

    10

  • Keystone Correction

    +/- 40 deg. Vertical

  • Aspect Ratio

    4:3 Native, 16:9 Compatible

  • Offset

    98.1% - 115%

  • Projection Screen Size

    0.85m 7.63m / 33.62 - 300.7" Diagonal 4:3

  • Projection Distance

    1.3 - 8.50m

  • Projection Lens

    F/2.51 - 2.93; f=15.98 - 21.42mm

  • Uniformity

    0.8

  • Computer Compatibility

    UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac

  • Video Compatibility

    PAL SECAM 576i/p, NTSC 480i/p, HD 720p/1080i/1080p

  • 3D Support

    Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D and 3D games from the Sony PS3 or Microsoft Xbox 360 are now supported as part of the HDMI v1.4a specification.

  • 3D Compatibility

    Side-by-Side:1080i50 / 60, 720p50 / 60
    Frame-pack: 1080p24, 720p50 / 60
    Over-Under: 1080p24, 720p50 / 60

  • Horizontal Scan Rate

    15 - 91kHz

  • Vertical Scan Rate

    24 - 120Hz

  • Displayable Colors

    1.07 Billion

  • Noise Level (Eco mode)

    32dB

  • Power Supply

    100-240V, 50-60Hz

  • Power Consumption

    309W Bright mode / 249W Eco mode (<0.5W Standby)

  • Lamp Type

    260W

  • Security

    Security bar, Kensington lock, password protection

  • On Screen Display

    19 Languages: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Russian, Finnish, Swedish, Greek, Norwegian/Danish, Hungarian, Czech, Arabic, Turkish, Farsi, Romanian

  • Optional Wireless

    Yes

  • RoHS

    Compliant

  • Dimensions (W x D x H)

    314 x 224 x 114mm (12.36 x 8.81 x 4.5")

  • Weight

    2.99kg (6.6lbs)

  • UPC Code

    796435440008

About Optoma X416

Make your presentations count regardless of the ambient light level using the bright X416. Designed for businesses and professional installation environments this compact and powerful projector can be installed or taken on the move. Easy to connect to with multiple inputs including two HDMI, MHL, VGA and a built in 10W speaker. You can even present wirelessly using the HDCast Pro (sold separately) or use the USB Power to connect and power HDMI dongles such as the Google Chromecast. For more complex installations, this projector is equipped with a large zoom range, vertical lens shift and networking features for remote monitoring and control.

• Bright XGA projector 4300 ANSI Lumens
• Installation flexibility Vertical lens shift and 1.36x zoom
• Ultimate Control - Full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
• Easy connectivity - HDMI, MHL, VGA, 10W speaker

High contrast
Add more depth to your image with a high contrast projector; with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.

Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles. Support for 144Hz rapid refresh rate provides ultra-smooth flicker free images.

Amazing colors
For vibrant, natural looking images, Optoma projectors incorporate BrilliantColor multi-color processing technology. This projector also conforms to sRGB standard to produce the most realistic true to life colors possible.

Energy saving
Using the specially designed lamp modes, you can reduce the power consumption by up to 70%. Each mode also has a positive effect on the lamp life, while lowering the total cost of ownership and reducing maintenance.

Quick resume
This feature allows the projector to be instantly powered on again, if it is accidentally switched off.

Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the "Auto Power Off" feature automatically turns off the projector after a set period of time if it is not being used.

Long lamp life
Reduce the number of lamp changes with lamp life of up to 10,000 hours using the Education Cycle.

Color guarantee
Enjoy dazzling colors for years to come; guaranteed by Optoma for five years' consistent performance.

Eco AV mute
Stay in control of your presentation with Eco AV mute. Direct your audience's attention away from the screen by blanking the image when no longer needed. This also reduces the power consumption by up to 70%, further prolonging the life of your lamp.

Remote mouse and laser
Keep your audience's attention focused on the right things using the simple, yet powerful remote with USB mouse control and built in laser pointer.

Direct power off
You can powered off your projector immediately or directly at the mains. Should you require to turn you projector back on immediately it will take about 90 seconds to start up.

Large zoom range
A large zoom range enables multiple placement possibilities at a variety of distances from the projection screen. An advantage to this is that expensive interchangeable lens projectors can be substituted with a more cost effective solution whilst still retaining a diverse choice of positioning options.

Wireless
Stream Full 1080p 3D content to your projector wirelessly; eliminating the hassle and extra cost of installing long cables, the WHD200 (sold separately) allows you to connect a Blu-ray player, set-top box, gaming console or AV receiver instantly.

USB power
Use the USB-Power to power an HDMI dongle, such as Google Chromecast.

MHL
Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL; now you can view presentations and documents, stream videos and share photos on the big screen. You can even use MHL to connect and power the HDCast Pro (sold separately).

Vertical lens shift
Simplify installation with vertical lens shift, which provides a wider range of projector placement possibilities. This makes it easier to position the projector in your room and enables a wider range of screen size options.

Integrated speaker
The built-in speaker offers excellent audio support. Easy to set up without the need for costly external speakers.

Networking and control
Featuring a wide range of options you can remotely control and monitor the projector.

RS232
Optoma projector's come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

AMX Compatibility
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

LAN Control
Using the compatible RoomView software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer. Schedule the projectors to power on/off. Control and alter the projector settings using the simple web browser. Emergency text broadcast capabilities for urgent or important announcements. Automatically receive email updates for lamp maintenance.

What's in the box:

  • Optoma X416 XGA 3DLP Projector
  • AC Power Cord
  • Remote Control
  • 2 x AAA Battery
  • Quick Start Card
  • CD User Manual
  • Optoma 3 Year Limited Warranty
