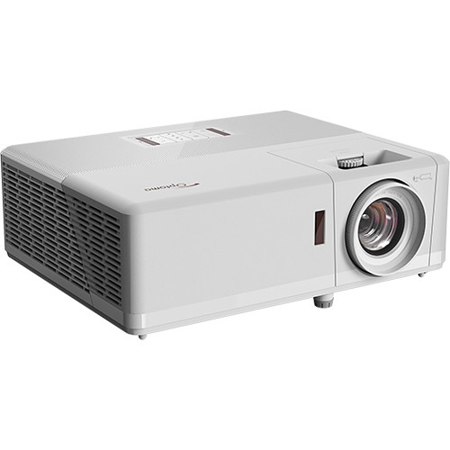

Optoma ZU406 WUXGA Laser Projector, 1920x1200, 4500 Lumens, White Chassis

SKU: OUZU406

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Optoma ZU406 Specifications

Technical

Technical

Jump to...
  • 360 Operation

    Yes, With Portrait Mode

  • Aspect Ratio

    16:10 (native), 16:9, 4:3, LBX, auto compatible

  • Audio

    2 x 15W Speakers (stereo)

  • Brightness

    4,500 ANSI lumens

  • Connections

    1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x VGA, 1x composite, 2x audio in (3.5mm), 1x mic in, 1x USB-A (power, 5V, 1.5A), 1x VGA out (VGA 1 only), 1x audio out, 1x 12v trigger, 1x 3D sync

  • Contrast Ratio

    300,000:1 (Extreme Black enabled) 1,800:1 full on/full off

  • Display Technology

    Texas Instruments 0.67" WUXGA DMD

  • Displayable Colors

    1.07 billion

  • Keystone Correction

    Auto keystone, +/-30 Degree horizontal and vertical

  • Light Source Type

    DuraCore laser

  • Light Source Life

    Up to 30,000 hours

  • Lens Shift

    10% vertical

  • Maximum Resolution

    HDMI 2.0: 4K UHD (3840 x 2160 @ 60Hz), 4K (4096 x 2160, 60Hz), HDMI 1.4: WUXGA (1920 x 1200)

  • Native Resolution

    WUXGA (1920 x 1200)

  • Noise Level

    32dB

  • Offset

    100%

  • Operating Temperature

    41 - 104 Degree F (5 - 40 Degree C), 85% max humidity

  • Power Consumption

    Bright: 272W max, Eco: 218W max

  • Power Supply

    AC input 110- 240V, 50-60 Hz

  • Projection Distance

    3.2 - 33.65' (0.9 - 10.2m) (without zoom)

  • Projection Lens

    f=12.81-16.74mm, F=1.94-2.23

  • Projection Method

    360 Degree , front, rear, ceiling mount, table top, 360 Degree : auto dims to 60% +/-5% in 195 Degree - 345 Degree orientation, Portrait: auto dims to 90% +/-5%

  • Projection Screen Size

    29 - 300.3" (73.6 - 762.7cm)

  • Remote Control

    Full size remote with laser pointer

  • Throw Ratio

    1.21-1.59:1 +/-5%

  • Uniformity

    75%

  • Zoom Type

    1.3x optical, 0.8 - 2.0x digital

Compatibility

Jump to...
  • 3D Compatibility

    Supports all HDMI 1.4a mandatory 3D formats and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz. Required 3D glasses are sold separately.

  • Computer Compatibility

    VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WUXGA, 4K, 4K UHD

  • Horizontal Scan Rate

    15.375 - 91.146 KHz

  • Vertical Scan Rate

    24 - 85 Hz (120 Hz for 1080p 3D feature)

  • Video Compatibility

    PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/50/60 Hz), 4K

Physical

Jump to...
  • Security

    Kensington lock port, password (OSD)

  • Dimensions (W x H x D)

    13.26 x 4.8 x 10.5" (33.6 x 12.1 x 26.67cm)

  • Weight

    10 lb (4.53kg)

  • UPC Code

    796435444372

About Optoma ZU406

Compact, lightweight and virtually maintenance free
Brighten any room with razor-sharp, 4,500 lumen, WUXGA projection with the remarkable Optoma ZU406. A laser light source eliminates lamp and filter replacements for up to 30,000 hours of low-cost and virtually maintenance-free operation.

Compact size, low weight and quiet operation make it perfect for classrooms, meeting rooms, board rooms and digital signage. Four corner correction, 360 Degree and portrait mode operation enable flexible installations.

HDMI and VGA inputs provide connectivity to high-quality 4K HDR digital video or legacy analog video sources while LAN and RS-232 enable control via Crestron, Extron, AMX or Telnet. Stereo speakers with 15W per channel provide rich audio for all-in-one applications.

Features

DLP Technology
DLP (Digital Light Processing) is a proprietary technology from Texas Instruments that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

Four Corner Adjustment
Four corner geometric correction enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.

Vertical Lens Shift
Vertical lens shift simplifies installations by shifting the image up and down without image distortion to provide a wider range of projector placement possibilities, making it easier to position the projector in a room.

RS-232 Control
Take control of the projector using HEX or ASCII commands via RS-232 cable.

Direct Power On
Turn on the projector directly from the power source. This feature aids installations that rely on power-on timers. The sleep timer can be used to turn the projector off after a set time.

Signal Power On
The projector powers on when it receives a signal through the HDMI input. This ensures the projector is turned on at the same time as the source device.

Crestron Roomview - NETWORK CONTROL Roomview
Software provides a custom configurable interface to monitor, manage and control every device in every room remotely from any computer.

• Manage up to 250 projectors at the same time (via master PC).
• Control and alter the projector settings using a simple web browser page, including OSD menu control.
• Set up email alerts for warning messages.
• Ideal for large installations in both educational and business environments.

Optoma ZU406 Features

  • 4,500 ANSI lumens with 300,000:1 contrast ratio
  • 4K UHD input with HDMI 2.0 (HDCP 2.2)
  • HDR10 and HLG compatible
  • DuraCore maintenance-free laser light source up to 30,000 hours
  • Vertical lens shift with four corner correction
  • 24/7, 360 Degree and portrait mode operation
  • 1.3x optical zoom

Key Features

  • 4,500 ANSI lumens with 300,000:1 contrast ratio
  • 4K UHD input with HDMI 2.0 (HDCP 2.2)
  • HDR10 and HLG compatible
  • DuraCore maintenance-free laser light source up to 30,000 hours
  • Vertical lens shift with four corner correction
  • 24/7, 360 Degree and portrait mode operation

What's in the box:

  • ZU406 WUXGA Laser Projector
  • AC Power Cable
  • Remote Control
  • Batteries
  • Quick Start Guide
  • Optoma 3 Year Limited Warranty on Projector (5 Year or 12000 Hour on Light Source (Whichever Comes F
