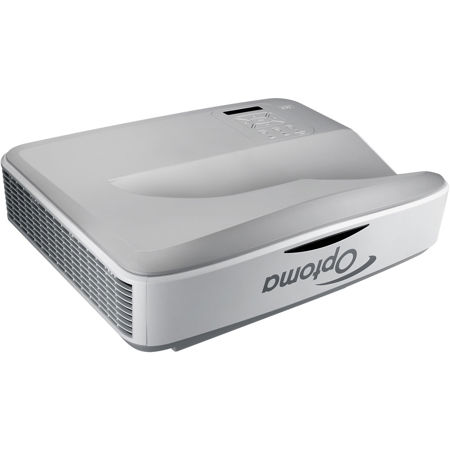

Optoma ZW300UST WXGA Ultra Short Throw 3D Multimedia Laser DLP Projector, White
See all Optoma items

Optoma ZW300UST WXGA Ultra Short Throw 3D Multimedia Laser Phosphor DLP Projector, 1280x800, 3200 Lumens, White

SKU: OUZW300UST

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Optoma ZW300UST Specifications

  • Display Technology

    Single Texas Instrument DMD, 12 degree .65" DMD X1, Type S600, DC3

  • Native Resolution

    WXGA 1280x800

  • Maximum Resolution

    WUXGA 1920x1200

  • Brightness

    3200 Lumens

  • Contrast Ratio

    100,000:1 (dynamic black enabled) / 22,000:1

  • Light Source Life and Type

    Up to 20,000 hrs - Laser Phosphor

  • Throw Ratio

    0.27:1

  • Zoom Type

    Digital 0.8 to 2.0

  • I/O Connectors

    2xHDMI with MHL, VGA-In, VGA-Out, Composite Video In, 2xAudio in (3.5mm/RCA audio), Mic-In (3.5mm), Audio out (3.5mm), RS232, USB-A (Power), USB-B (Service), RJ45 (LAN)

  • Speaker (Watts)

    10 Watt Speaker

  • Audio

    10 Watt Speaker

  • Keystone Correction

    +/- 40 deg. Vertical

  • Aspect Ratio

    16:10 (native), 16:9, 4:3, Auto

  • Offset

    120% +/- 3%

  • Projection Screen Size

    85" - 115"

  • Projection Distance

    19.4"- 27"

  • Projection Lens

    F=2.5 to 3.26, f=20.91 to 32.62mm manual focus

  • Uniformity

    80%

  • Computer Compatibility

    SVGA, VGA, SXGA, UXGA, XGA,WXGA, HD, Mac

  • 3D Compatibility

    Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e. 60 or 72 frames per eye). 3D glasses are needed and are sold separately

  • PC Compatibility

    PC Free USB Media Player and Office Document Viewer: Supports playback of video files, audio files and viewing of Office Documents and PDF files via USB 2.0 and USB 3.0 Flash Disks and Drives
    PC Free USB Media Player Video Codecs and Containers: H.264, H.263, VC-1, MPEG-1/2/4, DIVX-3/4/5/6, XVID, WMV7/8, VP8,VP6, AVS, MKV

  • PC Compatibility (Cont.)

    PC Free USB Media Player Audio Codecs and Containers: MP3, WMA, OGG, FLAC, APE, ATRA
    PC Free USB Media Player Image formats: JPEG, GIF, BMP
    PC Free Office Document and PDF Viewer formats: Word Documents (.doc, .docx), Excel Spreadsheets (.xls, .xlsx), PowerPoint Presentations (.ppt, .pptx), Adobe Acrobat files (.pdf)

  • Video Input Compatibility

    NTSC, PAL, SECAM, SDTV 480i/p, 576i/p, HDTV 720p(50/60Hz), 1080i(50/60Hz), 1080P(50/60Hz)

  • Horizontal Scan Rate

    15.375 to 91.146 KHz

  • Vertical Scan Rate

    24 to 85 Hz (120Hz for 3D feature)

  • User Controls

    Complete on-screen menu adjustment in 18 languages

  • Loop Through (Audio)

    Yes

  • Displayable Colors

    1.07 Billion

  • Noise Level (Eco mode)

    32dB

  • Power Supply

    AC input 90 - 264V, 50-60 Hz

  • Power Consumption

    335W (Bright), 225W (ECO)

  • Lamp Type

    Laser Phosphor

  • Operating Conditions

    Operating Temp at Sea Level to 10000 feet = 73F (max); must manually switch to high altitude mode at 5000 feet & above (using OSD)

  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Operating Humidity

    85% max

  • Security

    Kensington lock, security bar and keypad lock

  • Remote Control

    Full Function Remote

  • Optional Wireless

    Yes (requires optional wireless adapter)

  • Projection method

    Front, rear, ceiling mount, table top

  • Dimensions (WxDxH)

    15 x 12.5 x 5" (38.10 x 31.75 x 12.70cm)

  • Weight

    12.3 lbs (5.58kg)

About Optoma ZW300UST

Equipped with state-of-the-art laser phosphor display technology, the Optoma ZW300UST showcases superior picture quality and enhanced color performance to provide unsurpassed imagery in spaces large and small. Producing rich colors and deep black levels that outperform traditional lamp-based projectors, the ZW300UST's solid-state laser light source provides up to 20,000 hours of virtually maintenance-free operation.

With a throw ratio of .27, the WXGA ZW300UST can display a large 115" image from only 19" away, making it ideal for use in space-constrained environments including small classrooms, meeting rooms, boardrooms and digital signage applications. Allowing for presentations to transition from external sources seamlessly, the ZW300UST's PC Free USB Media Player supports playback of video and audio files along with images and presentations shared directly from any USB device.

Featuring a powerful 10-watt speaker, the ZW300UST enhances presentations, videos and audio files by delivering crisp, robust audio. In addition, streaming and presenting is made easy with an MHL-powered HDMI port that supports popular dongles including Optoma's HDCast Pro and Amazon's FireTV. The USB port can also be used to power Optoma's WHD200 Wireless HDMI system or Google's Chromecast media dongle.

Optoma ZW300UST Features

  • 3200 lumens and 100,000:1 (dynamic black enabled) contrast ratio produce bright, striking imagery along with razor sharp text
  • PC Free USB Media Player supports playback of video and audio files along with shared images and presentations
  • Extensive I/O Connectivity with Dual HDMI featuring MHL, VGA-In, RJ-45, 2x Audio-In and USB Power
  • Laser Phosphor Light Source provides 20,000+ hours of light source expectancy
  • Powerful 10-Watt speakers enhance presentations and fill every room with crisp audio
  • HDMI MHL port supports popular HDMI dongles including Optoma's HDCast Pro, Chromecast, FireTV & more

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Optoma ZW300UST WXGA Ultra Short Throw 3D Multimedia Laser Phosphor DLP Projector
  • AC Power Cord
  • VGA to VGA Cable
  • Remote Control
  • Batteries for Remote
  • Multilingual CD-ROM User's Manual
  • Quick Start Card
  • Optoma 5 Year or 20000 Hour Light Source Warranty (Whichever Comes First) / 3 Year Express Advance Exchange Warranty
