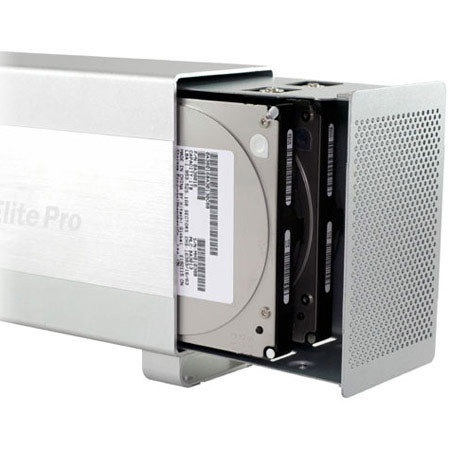

OWC / OWC / Other World Computing Mercury Elite Pro 8TB External Dual Drive Array, RAID 0
See all OWC items

OWC Mercury Elite Pro 8TB Multi-Interface External Dual Drive Array with RAID 0, USB 2.0 & 1.1 / FireWire 800/400 / eSATA

SKU: OWCME8Q7T80
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
OWC Mercury Elite Pro Dual 2-Bay 24TB (2x12TB) USB 3.2 Gen 2 RAID Array, Silver
$1,149.99
undefined undefined: Picture 1 regular
OWC Mercury Elite Pro Dual 2-Bay 40TB (2x20TB) USB 3.2 Gen 2 RAID Array, Silver
$1,679.99
undefined undefined: Picture 1 regular
OWC Mercury Elite Pro Dual 2TB (2x 1TB) 2-Drive SSD RAID Array w/3-Port USB Hub
$1,749.99
undefined undefined: Picture 1 regular
OWC Mercury Elite Pro Dual 2-Bay 12TB (2x6TB) USB 3.2 Gen 2 RAID Array, Silver
$799.99
undefined undefined: Picture 1 regular
OWC Mercury Elite Pro Dual 2-Bay 2TB (2x1TB) USB 3.2 Gen 2 RAID Array, Silver
$294.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

OWC / OWC / Other World Computing Mercury Elite Pro 8TB External Dual Drive Array, RAID 0 Specifications

  • Chipset

    Custom Oxford 946 eSATA / FW800 (1394B) / FW400(1394A) and USB 2.0 (1.1 Backwards compatible) Chipset

  • Interfaces Supported

    eSATA (SATA-II)
    FireWire 800 (1394B)
    FireWire 400 (1394A)
    USB 2.0 (1.1 Backwards compatible)

  • Recommended configurations supported

    RAID 0 Performance Striping (default setting) for maximum performance (requires two identical Hard Drives)

  • Standard Mechanism

    2 x 4.0TB HGST Deskstar 7K4000 Hard Disk Drives

  • Drive Rotation Speed

    7200 RPM

  • Drive Cache Size

    128 Megabyte (2 Drives with 64MB (65,536k) cache each)

  • Port Configuration

    eSATA - 1 port
    FireWire 800 - (2) 9 pin ports
    FireWire 400 - (1) 6 pin port
    USB 2.0/1.1 - (1) 5 pin port

  • Max Data Transfer Rate

    eSATA - 3.0 Gbit/s (or 300 MB/sec)
    FireWire 800 - 800Mbps (or 100MB/sec)
    FireWire 400 - 400Mbps (or 50MB/sec)
    USB 2.0 - 480Mbps (or 60MB/sec)
    USB 1.1 - 12Mbps (or 1.5MB/sec)

  • Port/Interface Bootability

    eSATA: Supported on Macs and PC's meeting minimum requirements
    FireWire 800: Supported on Macs and PC's meeting minimum requirements
    FireWire 400: Supported on Macs and PC's meeting minimum requirements
    USB 2.0: Supported on Macs and PC's meeting minimum requirements

  • Format

    Pre-formatted for Mac OSX

  • Macintosh System Requirements

    Mac OS 8.6 to 9.2.2 and an available USB 1.1 or FireWire 400 port.
    Mac OS X 10.2.8 or later. Including 'Lion' 10.7.x and an available USB2.0/1.1, FireWire 800/400 port, or eSATA port.
    Time Machine Compatible: Mac OS X 10.5 (version introduced) and later

  • Windows System Requirements

    Windows XP(64 bit) or later and an available USB 2.0/1.1, FireWire 800/400, or eSATA port

  • Linux Requirements

    Linux compatible via supported USB and FireWire interfaces

  • Pre-installed Backup / Utility software

    Intech Hard Disk SpeedTools Utilities OEM (For Mac OS 8.6 - X only)
    ProSoft Engineering Data Backup for Mac OS X v10.2.8 or later
    NovaStor NovaBACKUP for Windows 2000 or later
    Over 1.5GB of Freeware/Shareware/Public domain software pre-installed

  • Power Supply

    UL Listed U.S./International Auto Switching 100 - 240v, 50/60Hz input, 12 Volt 5 Amp output Power Supply (adapter plugs for International use sold separately)

  • Operating Temperature

    5deg.C - 55deg.C (41deg.F - 131deg.F)

  • Non-Operating Temperature

    -40deg.C - 65deg.C (-40deg.F - 149deg.F)

  • Operating Relative Humidity

    8% - 90% RH (Non-condensing)

  • Non-Operating Relative Humidity

    5% - 95% RH (Non-condensing)

  • Shock

    65G 2mS; (non-operating) 175G 2mS

  • Operating Vibration

    1.0G (5 - 300Hz)

  • Non-Operating Vibration

    5.0G (5 - 500Hz)

  • MTBF (hours)

    More than 300,000 power-on hours

  • Dimensions (W x D x H)

    2.9 x 9 x 5.3" / 7.36 x 22.86 x 13.46cm

  • Weight

    5.8lbs / 2.63kg

About OWC / OWC / Other World Computing Mercury Elite Pro 8TB External Dual Drive Array, RAID 0

The OWC / OWC / Other World Computing Mercury Elite Pro 8TB Multi-Interface External Dual Drive Array with RAID 0 features high-speed Oxford 946 eSATA / FireWire 800/400 & USB 2.0 chipset combined with the fastest SATA drive mechanisms available. This combination gives Mercury Elite Pro RAID Solutions some of the fastest single drive transfer rates possible, even exceeding 120 Megabytes Per Second! The Mercury Elite Pro RAID offers (1) eSATA port, (2) FireWire 800(1394B) ports, (1) FireWire 400 (1394A) port and 1 USB 2.0 port for easy plug and play on any system.

Designed to compliment any user's system, the OWC Mercury Elite Pro RAID is created in mind with the Power Macintosh G5 system as a starting point. A blue activity LED compliments the design recessed behind the front grille, showing when your drive is being accessed. The built-in sensor on the chipset detects when the solution's data cable is disconnected from a Mac or PC's native FireWire, USB, or eSATA interface and automatically spins down the solution to conserve energy during periods of disk inactivity. It is ideal for notebook users who can go mobile without needing to reach around the solution to turn it off or unplug power cord.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • OWC / OWC / Other World Computing Mercury Elite Pro 8TB Multi-Interface External Dual Drive Array wi
  • 36" Double Shielded eSATA Connecting Cable (eSATA-eSATA)
  • 36" Double Shielded Firewire 800 Connecting Cable (9-9 Pin Cable)
  • 36" Double Shielded Firewire 400 Connecting Cable (6-6 Pin Cable)
  • 36" Double Shielded USB 2.0/1.1 Connecting Cable
  • Owner's Manual
  • OWC / OWC 3 Year Warranty
