OWC / Other World Computing Mercury Rack Pro Specifications

  • Additional Item Includes

    Integrated ROHS, CE & FCC Compliant Power Supply - Anti-Skid, Vibration Dampening Desktop Mounting Feet - Screws for Rack / Desktop Conversion - Rack Mounting Handles - Mercury Rack Pro Manual - Complimentary 6 Month Level 1 Data Recovery

  • Chipset

    Custom High Performance eSATA with Port-Multiplier capability, FireWire 800 (1394B), FireWire 400 (1394A) and USB 3.0 Chipset

  • RAID / JBOD Support

    Rear panel selectable Hardware RAID settings - SPAN, 0, 1, 3, 5, 10 and Non-RAID/Raid Ready: Independent Mode - Each drive appears as independent volume
    ALL drives must be ejected (unmounted) in independent mode, from the Desktop to avoid data corruption

  • Standard Mechanism

    4x 10.0TB Seagate Enterprise Capacity Hard Disk Drives

  • Drive Rotation Speed

    7200 RPM

  • Drive Cache Size

    64MB per drive, 256MB total for the solution

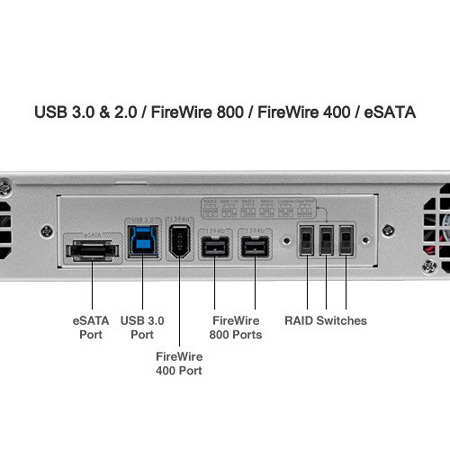

  • Port Configuration

    eSATA - 1 eSATA port with Port-Multiplier capability
    FireWire 800 - (2) 9 pin ports
    FireWire 400 - (1) 6 pin port
    USB 3.0 - (1) "A" port

  • Format

    Included Drive Guide Software will format drive for either OS X, or Windows

  • Max Data Transfer Rate

    eSATA - 300MB/s
    FireWire 800 - 100MB/s
    FireWire 400 - 50MB/s
    USB 3.0 - 500MB/s
    USB 2.0 - 60MB/s
    USB 1.1 - 1.5MB/s

  • Port/Interface Bootability

    eSATA: Supported on Macs and PC's meeting minimum requirements
    FireWire 800: Supported on Macs and PC's meeting minimum requirements
    FireWire 400: Supported on Macs and PC's meeting minimum requirements
    USB 3.0: Supported on Macs and PC's meeting minimum requirements
    USB 2.0: Supported on Macs and PC's meeting minimum requirements

  • Recommended eSATA Cards

    Cards that OWC has tested and qualified for the OWC Mercury Rack Pro
    PCIe (PCI Express) for Desktops
    PCI for Desktops and Towers
    ExpressCard/34 for Laptops

  • Recommended USB 3.0 Cards

    Cards that OWC has tested and qualified for the OWC Mercury Rack Pro
    PCIe (PCI Express) for Desktops

  • Macintosh System Requirements

    eSATA: Macintosh with eSATA PCI Interface card. eSATA requires Mac OS X 10.2 or later. Including 'Mavericks' 10.9.x
    FireWire 800 (1394B): Macintosh with FireWire 800 (1394B) interface, either built in or via PCI FireWire 800 (1394B) card. FireWire 800 (1394B) requires Mac OS X 10.2 or later. Including 'Mavericks' 10.9.x
    FireWire 400 (1394A): Macintosh with FireWire 400 interface, either built in or via PCI FireWire 400 card. FireWire 400 requires Mac OS 8.6 or later.

  • Macintosh System Requirements (Cont.)

    Including 'Mavericks' 10.9.x
    USB 3.0: Macintosh OS 8.6 to 9.2.2, OS X 10.2.x or later. Including 'Mavericks' 10.9.x, and an available USB 3.0 port
    Time Machine Compatible: Mac OS X 10.5 (version introduced) and later

  • Windows System Requirements

    eSATA: Windows system with eSATA PCI Interface, either built in or via PCI eSATA card. eSATA requires Windows XP or later
    FireWire 800 (1394B): Windows system with FireWire 800 (1394B) interface, either built in or via PCI FireWire 800 (1394B) card. FireWire 800 (1394B) requires Windows XP or later
    FireWire 400 (1394A): Windows system with FireWire 400 interface, either built in or via PCI FireWire 400 card. FireWire 400 requires Windows XP or later

  • Windows System Requirements (Cont.)

    USB 3.0: Windows 98 or later and an available USB 3.0/USB 2.0/USB 1.1 port

  • Linux Requirements

    Linux compatible via supported USB and FireWire interfaces

  • Software Included

    RAID Manager Visual Interface (for Mac OS X 10.5.x or later with Intel processor)
    Intech Hard Disk Speed Tools Utilities OEM (For Mac OS 8.6 - X only)
    ProSoft Engineering Data Backup for Mac OS X v10.2.8 or later
    NovaStor NovaBACKUP for Windows 2000 or later
    Over 1.5GB of Freeware, Shareware, Public domain software installed

  • Cooling

    Three (3) 4cm Brushless, whisper quiet, constant speed fans

  • Power Supply

    UL Listed U.S./International Adjustable 100 - 240v, 50/60Hz, 200W (Max.) input Power Supply

  • Operating Temperature

    5 to 42 deg. C (41 to 108 deg. F)

  • Non-Operating Temperature

    -40 to 65 deg. C (-40 to 149 deg. F)

  • Operating Humidity

    8% - 90% RH (Non-condensing)

  • Non-Operating Humidity

    5% - 95% RH (Non-condensing)

  • Shock

    65G 2mS; (non-operating) 175G 2mS

  • Operating Vibration

    1.0G (5 - 300Hz)

  • Non-Operating Vibration

    5.0G (5 - 500Hz)

  • Dimensions (D x W x H)

    11.9 x 17.3 x 1.7" (302.26 x 439.42 x 43.18mm)
    With rack mounting handles: 11.9 x 19.2 x 1.7" (302.26 x 487.68 x 43.18mm)

  • Weight

    Enclosure: 10lbs (4.54kg) (Approx.)

  • UPC Code

    812437028058

About OWC / Other World Computing Mercury Rack Pro

OWC Affordability, Reliability and Ease-Of-Use in a Single 1U Rack Space
OWC Mercury Rack Pro RAID 5 storage solutions come pre-configured as a hardware controlled RAID 5 "stripe with parity" array to provide both speed and data protection to meet high-performance demands. The OWC Mercury Rack Pro RAID 5 consists of four matched Enterprise Class SATA hard drives, up to 7200RPM; to provide the longest possible reliability and optimized performance.

Specifically designed to meet the performance demands of video and audio production, the OWC Mercury Rack Pro four Bay RAID 5 solution provides data transfer rates of over 300 Megabytes per second! Using the highest capacity Enterprise Class SATA hard drive mechanisms available and offering Plug & Play simplicity, the possibilities are endless! Control and manage your RAID settings with the OWC RAID Manager Visual Interface.

Outstanding Features

High Performance
The Custom High Performance Chipset eSATA with Port-Multiplier capability, FireWire 800 (1394B), FireWire 400 (1394A), & USB 3.0 chipset, combined with the fastest SATA drive mechanisms available give OWC Mercury Rack Pro four Bay storage solutions some of the fastest drive transfer rates possible with eSATA exceeding 300 Megabytes per second!

High Reliability
A Top-Notch design using the best components gives the OWC Mercury Rack Pro an industry leading 5 Year OWC Mercury Rack Pro Enterprise Limited Warranty and ensures the series is built to last!

Multi-Interface
The OWC Mercury Rack Pro RAID series offers (1) eSATA port with eSATA Port-Multiplier capability, (2) FireWire 800 (1394B) ports, (1) FireWire 400 (1394A) port and (1) USB 3.0 port for easy Plug and Play on ANY system! The OWC Mercury Rack Pro RAID even includes all needed connection cables!

Swap Drives at Will
When using the OWC Mercury Rack Pro in Independent mode, all four drives appear on your system as individual volumes drives, so you can mix and match drives of any size and brand and hot swap the drives too.

Smart Power
Smart Power regulates power during prolonged periods of inactivity to save operating costs and prolong component lifespan.

Flexible Form
The OWC Mercury Rack Pro can easily be converted to a desktop form-factor via a Phillips screwdriver by simply removing the rack ears and installing the included anti-skid, vibration dampening feet.

What's in the box:

  • Other World Computing Mercury Rack Pro 40TB 1U Multi-Interface 4 Bay Enterprise Class Performance RAID Solution
  • High Quality Double Shielded eSATA Connecting Cable
  • High Quality Double Shielded FireWire 800 (1394B) Connecting Cable (9-9 Pin Cable)
  • High Quality Double Shielded FireWire 400 (1394A) Connecting Cable (6-6 Pin Cable)
  • High Quality Double Shielded USB 3.0 Connecting Cable (A-B Cable)
  • Other World Computing 5 Year Limited Warranty (See Specs for More Item Includes)
