Review Summary
Unit provides one (1) External mini-SAS, supporting up to 24Gb/s
Enclosure uses 3.5" Serial ATA (SATA) hard drives
RAID-Ready and JBOD; 4 independent drive channels
4x 6.0TB Toshiba MG04ACA Series Hard Disk Drives
7200 RPM
64MB per drive, 256MB total for the solution

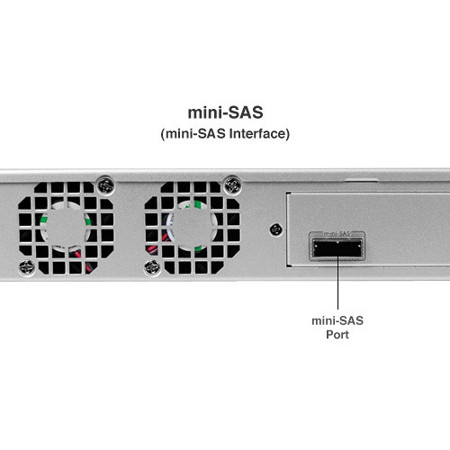

External mini-SAS up to 24Gb/s
Included Drive Guide Software will format drive for either OS X, or Windows
External mini-SAS - up to 24Gb/s (or 2400 MB/sec)
Available cards for the OWC Mercury Rack Pro
PCIe (PCI Express) for Desktops
Mini-SAS cable included: 1M mini-SAS cable (included) is required for use with SATA/SAS 6Gb/s drives due to signal integrity requirements, longer cable lengths are not supported. When using SATA/SAS 3Gb/s drives, longer cable lengths (sold separately) can be used and are available
External mini-SAS: Macintosh with external mini-SAS via 3rd party controller card interface, (not included). external mini-SAS requires Mac OS X 10.2 or later. Including 'Mavericks' 10.9.x
Time Machine Compatible: Mac OS X 10.5 (version introduced) and later
Mini-SAS cable included: 1M mini-SAS cable (included) is required for use with SATA/SAS 6Gb/s drives due to signal integrity requirements, longer cable lengths are not supported. When using SATA/SAS 3Gb/s drives, longer cable lengths (sold separately) can be used and are available
External mini-SAS: Windows with external mini-SAS via 3rd party controller card interface, (not included). external mini-SAS requires Microsoft Windows 2000 or XP
Intech Hard Disk SpeedTools Utilities OEM (For Mac OS 8.6 - X only)
ProSoft Engineering Data Backup for Mac OS X v10.2.8 or later
NovaStor NovaBACKUP for Windows 2000 or later
Over 1.5GB of Freeware, Shareware, Public domain software installed
Three (3) 4cm Brushless, whisper quiet, constant speed fans
UL Listed U.S./International Adjustable 100 - 240v, 50/60Hz, 200W (Max.) input Power Supply
5 to 42 deg. C (41 to 108 deg. F)
-40 to 65 deg. C (-40 to 149 deg. F)
8% - 90% RH (Non-condensing)
5% - 95% RH (Non-condensing)
65G 2mS; (non-operating) 175G 2mS
1.0G (5 - 300Hz)
5.0G (5 - 500Hz)
11.9 x 17.3 x 1.7" (302.26 x 439.42 x 43.18mm)
With rack mounting handles: 11.9 x 19.2 x 1.7" (302.26 x 487.68 x 43.18mm)
Enclosure: 10lbs (4.54kg) (Approx.)
812437021653
OWC Affordability, Reliability and Ease-Of-Use in a Single 1U Rack Space
Need Massive Amounts of Storage
The OWC Mercury Rack Pro Enterprise Class Storage Solution is a four bay external mini-SAS hard drive enclosure configured as four independent hard drives, up to a maximum capacity of 40.0TB (10.0TB per hard drive mechanism). The OWC Mercury Rack Pro features a single external mini-SAS interface, to not only reduce cable clutter, but to provide four full channels of data (one per drive) through a single external mini-SAS cable. It's like having four separate eSATA/SAS cables but in a single package.
Designed specifically to meet the demands of server, audio production and video production environments, the OWC Mercury Rack Pro four Bay 1U Solutions provide data transfer rates of up to 24Gb/s data rates! Using the highest capacity SATA hard drive mechanisms available and offering Plug & Play simplicity, the possibilities are endless!
Outstanding Features
Great Performance
Using the fastest SATA drive mechanisms available gives the OWC Mercury Rack Pro mini-SAS 4 Bay 1 U Solutions a solid, performance focused base. Adding a high-speed external mini-SAS card (not included) further enhances the OWC Mercury Rack Pro providing some of the fastest drive transfer rates possible, up to 24Gb/s!
High Reliability
A Top-Notch design using the best components gives the OWC Mercury Rack Pro an industry leading 5 Year OWC Mercury Rack Pro Enterprise Limited Warranty and ensures the series is built to last!
Flexible Form
The OWC Mercury Rack Pro can easily be converted to a desktop form-factor via a Phillips screwdriver by simply removing the rack ears and installing the included anti-skid, vibration dampening feet.
