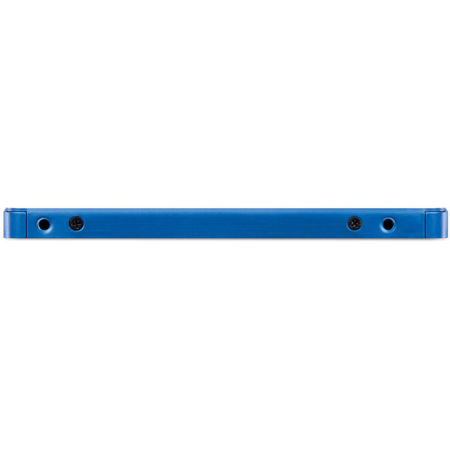

OWC 60GB Mercury Electra 3G 2.5" Serial-ATA 7mm Internal Solid State Drive, 285MB/s Read and 275MB/s Write Speed

SKU: OWCSD7E3G06

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-02-28T12:19:29

Rated 3 out of 5

Speeds up some functions, but startup slow

This drive was easy to install and definitely makes everyday operation faster, but I'm having issues with very slow response to password entry upon waking from sleep in my Macbook Pro 7,1 Mid-2010.

John A.

OWC Mercury Electra SSD Specifications

  • Controller

    SandForce 2181 Series Processor with 7% Over Provisioning

  • NAND

    Tier 1 Asynchronous MLC NAND Flash memory

  • Form Factor

    Standard 7mm 2.5"

  • Interface

    SATA 3Gb/s

  • Capacity

    60GB useable capacity
    Total Flash Memory Components - 64GB
    4GB allocated to real-time data redundancy & error correction

  • Formatted Capacity

    55GiB

  • RAID Support

    Qualified for single drive and multiple drive production workstation RAID 0/1/10/0+1 and SPAN usage

  • SMART Attributes

    Standard

  • Native Command Queuing

    Up to 32 commands

  • RoHS Compliant

    Yes

  • Format

    Unformatted

  • Data Reliability

    ECC Recovery: Up to 55 bytes correctable per 512-byte sector

  • Security

    Chip Based Data Encryption: 128-bit AES-compliant

  • TRIM Support

    OS Dependent

  • Nonrecoverable Read Errors

    Less than 1 sector per 10 bits read

  • Sustained Reads (up to)

    285MB/s

  • Sustained Writes (up to)

    275MB/s

  • Read Incompressible Data Rate (up to)

    208MB/s

  • Write Incompressible Data Rate (up to)

    235MB/s

  • Random 4K Read

    Up to 60,000 IOPS

  • Random 4K Write

    Up to 60,000 IOPS

  • Read Latency

    Less than 0.1ms

  • Write Latency

    Less than 0.1ms

  • Operating Temperature

    0 to 70 deg. C (32 to 158 deg. F)

  • Non-Operating Temperature

    -40 to 85 deg. C (-40 to 185 deg. F)

  • Acoustics

    Idle (Typical): 0.0 bels
    Seek (Typical): 0.0 bels

  • Dimensions (H x W x L)

    Max: 7 x 70.06 x 100.12mm (0.28 x 2.76 x 3.94")

  • Weight

    77g (2.72oz) (Approx.)

  • UPC Code

    794504337457

About OWC Mercury Electra SSD

When only the fastest and most reliable Solid State Drive on the market today will suffice for your data storage and backup, look no further than the OWC 60GB Mercury Electra 3G SSD. For High Speed Personal Computing, Home/Office, Gaming and Personal Photography.

The Mercury SSD line features
• DuraWrite extends the endurance of your Solid State Drive (SSD)
• Intelligent Block Management & Wear Leveling automatically distributes data evenly across the entire SSD
• Intelligent Read Disturb Management spreads the active read/write across the flash components eliminating data corruption caused by constant use
• Intelligent "Recycling" for advanced free space management gradually re-writes data across the SSD over time to ensure data never gets corrupted
• RAISE (Redundant Array of Independent Silicon Elements) protects the data on your drive similar to having a RAID setup
• Best-in-Class ECC Protection for longest data retention and drive life

This internal 2.5" SATA SSD delivers the highest transfer speed, endurance and performance available today. With sustained reads up to 285MB/s and writes up to 275MB/s, up to 100X greater data protection than enterprise class Hard Disk Drives and RAISE technology for RAID like data protection and reliability, the OWC 60GB Mercury Electra 3G SSD line delivers unbeatable performance, that's backed by a 3 Year OWC SSD Limited Warranty.

High Performance Internal Storage
Replace your conventional hard drive with a reliable solid state drive. Unlike traditional hard disk drives, OWC SSDs have no moving parts, resulting in a quiet, cool and highly rugged storage solution that also offers near instantaneous system response.

What's in the box:

  • Other World Computing 60GB Mercury Electra 3G 2.5" Serial-ATA 7mm Internal SSD
  • Other World Computing 3 Year Limited Warranty
