OWC / Other World Computing 1TB Aura Internal SSD Storage w/Envoy Pro Kit
See all OWC items

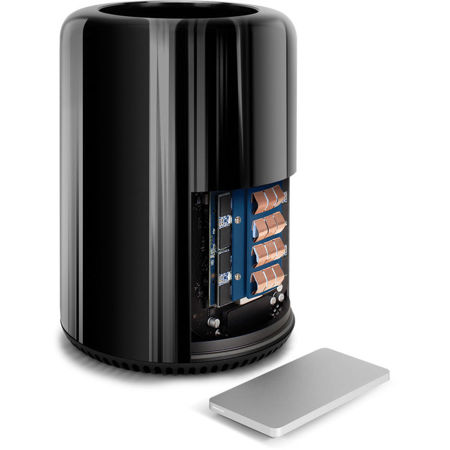

OWC 1TB Aura Internal Solid State Drive Upgrade Storage Solution with Envoy Pro Kit for 2013 Mac Pro, 726MB/s Read and 698MB/s Write Speed

SKU: OWCSDA13MP1K
(2)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-01-18T12:47:32

Rated 5 out of 5

Good flash drive.

Works flawlessly.

APRIL S.

2016-11-18T12:41:59

Rated 1 out of 5

Buggy to No Performance

Spent about a full day trying to get this card to work in my MBP. Even spent 2 hours at the Apple store where they also couldn't get the system to fully boot up. Computer boots and runs up fine using an external drive. It better to have Apple service it and install their drive. Lesson Learned.

PhilW

OWC Aura SSD Specifications

  • Compatibility

    Mac Pro (Late 2013)

  • SSD: Capacity

    1TB (960GB)

  • SSD: Form Factor

    Custom blade

  • SSD: Flash controller

    4x Sandforce SF2281 with 7% Over Provisioning

  • SSD: RAID controller

    Marvell 88SE9230

  • SSD: Interface

    PCIe 2.0 x2

  • SSD: SMART Attributes

    Standard

  • SSD: AHCI Compliant

    Yes

  • SSD: Format

    Unformatted

  • SSD: Reliability

    ECC Recovery: Up to 55 bytes correctable per 512-byte sector

  • SSD: Performance

    Read: 726MB/s
    Write: 698MB/s

  • SSD: Security

    Chip Based Data Encryption: 128-bit AES-compliant

  • SSD: Environmental (Operating)

    32 to 158 deg. F / 0 to 70 deg. C

  • SSD: Environmental (Non-Operating)

    -67 to 302 deg. F / -55 to 150 deg. C

  • SSD: Operating system compatibility

    Mac OS 10.9 and up
    Windows 8 and up

  • RoHS Compliant

    Yes

  • Envoy Pro: Chipset

    PLX

  • Envoy Pro: Interfaces Supported

    USB 3.0 interface

  • Envoy Pro: Port Configuration

    USB 3.0 interface (Micro-B port)

  • Envoy Pro: Max Data Transfer Rate

    One Micro-B USB 3.0 port, up to 500MB/s

  • Envoy Pro: Compatibility

    An Apple original SSD drive from Mac Pro, MacBook Air, MacBook Pro with Retina display, iMac and Mac mini models with the model IDs listed below can be installed in to the OWC Envoy Pro enclosure.
    MacPro6,1
    MacBookAir6,1
    MacBookAir6,2
    MacBookPro11,1
    MacBookPro11,2
    MacBookPro11,3
    Macmini7,1
    iMac14,1
    iMac14,2
    iMac14,3
    iMac15,1

  • Envoy Pro: Functions

    Bus-powered via USB 3.0 port (no AC adapter required)
    Complements rMBP design, aluminum finish
    Super-quiet, fanless operation
    Non-skid rubber feet

  • Envoy Pro: System Requirements

    Mac Requirements: Mac OS 10.3 or later and an available and supported USB 3.0 port
    PC Requirements: Windows XP or later and an available and supported USB 3.0 port
    Linux Requirements: Linux OS versions and an available and supported USB 3.0 port

  • Envoy Pro: Cooling

    Silent, fanless operation

  • Envoy Pro: Power Supply

    Bus-powered via USB 3.0 port

  • Envoy Pro: Drive Requirements

    Compatible with the stock Apple Flash SSD module for all PCIe SSD based Macs

  • Dimensions (H x W x D)

    SSD: 3.5 x 3.3 x 0.79" / 8.89 x 8.38 x 2.01cm
    Envoy Pro: 5 x 2.2 x 4.5" / 12.70 x 5.59 x 11.43cm

  • Weight

    SSD: 3.4oz / 96.39g
    Envoy Pro: 3.4oz / 96.39g

  • UPC Code

    812437021165

About OWC Aura SSD

FEATURED REVIEWS

Good flash drive.

By APRIL S.

Works flawlessly.

1.0TB Internal Solid State Drive Upgrade and Envoy Pro Storage Solution
• First internal SSD upgrade for 2013 Mac Pro
• 1TB internal capacity - up to four times more than the factory drive
• Free how-to videos and all tools included
• Re-purpose the factory-installed SSD as a blazing fast portable drive
• 3 year comprehensive OWC SSD warranty

Get Up To Sixteen Times Factory Capacity
For the first time, upgrade your 2013 Mac Pro's internal SSD and gain up to eight times the original capacity. Available in 1TB, 2TB and 4TB capacities, the Aura SSD for Mac Pro continues OWC's dedication to giving you more from your Mac.

Take the Factory SSD With You
The OWC Aura SSD for Mac Pro kit includes the award-winning Envoy Pro SSD enclosure, allowing you to easily repurpose the factory-installed Mac Pro SSD as an elegant aluminum-body USB 3.0 external drive for incredible portable performance.

Freedom To Do More
Regardless of which size factory SSD you're replacing, an Aura SSD upgrade gives you more space to work, create and play. Store large photo, music and video libraries and improve efficiency in creative workflows. Such a huge capacity boost removes the factory capacity limit, giving you the freedom to do more on your Mac Pro.

Innovative, Dependable and Made for Mac
Built on the time-tested Aura platform of high-performance SSDs, the Aura SSD for Mac Pro is the only internal SSD upgrade solution custom engineered for your Mac Pro. OWC SSDs feature an industry leading suite of controller technologies to deliver longevity and dependable performance along with up to double the maximum internal factory capacity.

Upgrade Easy with OWC
The Aura SSD for Mac Pro upgrade kit comes complete with everything you need for a simple DIY upgrade.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Other World Computing 1TB Aura Internal Solid State Drive Upgrade Storage Solution
  • Envoy Pro USB 3.0 Enclosure
  • Carrying Case
  • High-Quality Double-Shielded USB 3.0 Standard A to Micro-B Connecting Cable
  • Torx T5 Screwdriver
  • Envoy Pro User Guide
  • Other World Computing 3 Year Limited Warranty
