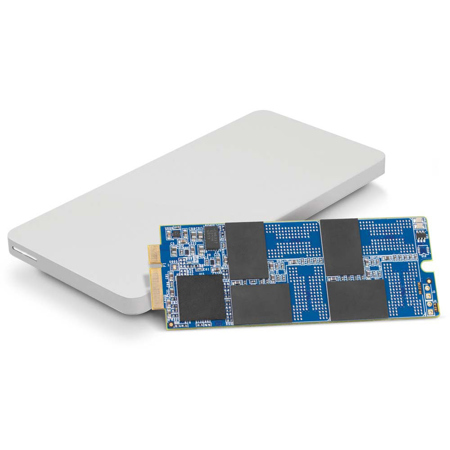

OWC 1TB Aura Internal 6G mSATA SSD with Envoy Pro Storage Solution for MacBook Pro 2012-Early 2013 with Retina Display, 560MB/s Read Speed and 460MB/s Write Speed

SKU: OWCSSDA1960

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

OWC 1TB Aura SSD Specifications

  • Capacity

    960GB useable capacity
    Total Flash Memory Components 1024GB
    64GB allocated to real-time data redundancy & error correction

  • Formatted Capacity

    894GiB

  • DRAM Cache

    1GB DDR3

  • NAND

    Tier 1 Major Multi-Level Cell (MLC)
    High-Performance
    Sync-NAND Flash

  • Controller

    Silicon Motion SM2246EN Processor with 7% Over Provisioning

  • SMART Attributes

    Standard

  • Native Command Queuing

    Up to 32 commands

  • RoHS Compliant

    Yes

  • Format

    Unformatted

  • Data Reliability

    Built-in BCH ECC: Up to 66 bits correctable per 1024 bytes

  • Security

    Chip Based Data Encryption: 256-bit AES-compliant

  • TRIM Support

    OS Dependent

  • Nonrecoverable Read Errors

    Less than 1 sector per 1016 bits read

  • Sustained Reads (up to)

    560MB/s

  • Sustained Writes (up to)

    460MB/s

  • Random 4K Read

    Up to 74000 IOPS

  • Random 4K Write

    Up to 73000 IOPS

  • Read Latency

    Less than 0.1ms

  • Write Latency

    Less than 0.1ms

  • Power

    Active Power: 2W
    Idle Power: 0.7W
    Power nap compatible

  • Environmental: Operating

    32 to 158 deg. F / 0 to 70 deg. C

  • Environmental: Non-Operating

    -40 to 185 deg. F / -40 to 85 deg. C

  • Chipset

    High-performance ASMedia 1053e chipset

  • Interfaces Supported

    USB 3.0 interface

  • Port Configuration

    USB 3.0 interface (Micro-B port)

  • Maximum Data Transfer Rate

    One Micro-B USB 3.0 port
    Up to 500MB/s

  • System Requirements

    Mac Requirements: Mac OS 10.3 or later and an available and supported USB 3.0 port.
    PC Requirements: Windows XP or later and an available and supported USB 3.0 port.
    Linux Requirements: Linux OS versions and an available and supported USB 3.0 port.

  • Cooling

    Silent
    fanless operation

  • Envoy Pro Power Supply

    Bus-powered via USB port (no AC adapter required)

  • Drive Requirements

    Compatible with the stock Apple Flash SSD module for the 13" or 15" MacBook Pro Retina model.

  • Dimensions (W x D x H)

    2.125 x 4.5 x .4375" / 53.98 x 114.3 x 11.11mm

  • Weight

    3.4oz / 1.5g

About OWC 1TB Aura SSD

• One of the fastest Internal SSDs available.
• Includes sleek, anodized aluminum Envoy Pro storage solution, Torx T-5 screwdriver and a Pentalobe compatible driver.

The 1TB Aura SSD features a suite of industry leading controller technologies for performance and reliability.
• Global wear leveling algorithm automatically distributes data evenly and manages program/erase count, maximizing SSD lifespan.
• StaticDataRefresh technology manages free space, gradually refreshing data across the SSD over time, enhancing data integrity.
• Hardware BCH ECC corrects errors up to 66-bit/1KB for superior data retention and drive health.
• Best-in-class power consumption.
• Advanced security protocols support AES 128/256-bit full-drive encryption.

The Only Complete 2-in-1 Upgrade Solution:
• Upgrade your rMBP's factory installed SSD with greater performance and capacity via the Aura.
• Retask the replaced factory SSD as a bus-powered, pocket-sized external storage solution via the Envoy Pro.

First and Only Complete Storage Upgrade
Once again, OWC provides Mac users the only upgrade solution that delivers higher performance, functionality and reliability! When first introduced, the MacBook Pro with Retina display base model offered a 256GB SSD configuration with no upgrade option. Current base models start from 128GB to 256GB. Now, instead of being "factory locked", the OWC Aura 6G gives you the freedom to upgrade your capacity to meet your storage needs. Just like other OWC upgrades, we include the installation tools you need plus a free 'how-to' video to make this an easy and money-saving DIY upgrade.

Ultra-portable, bus-powered external storage solution designed to complement the MacBook Pro with Retina display
The OWC Envoy Pro combines elegance and functionality into a sleek, portable external storage solution that complements the design and finish of the MacBook Pro with Retina display. Its anodized aluminum body protects your drive and data, while its minimal size allows for simple stowing in coat pockets, backpacks or briefcases. The USB 3.0 interface offers speedy transfer rates of up to 500MB/s and the Envoy Pro requires no AC power.

Better by Design
"Mean Time To Failure" - We all know that nothing lasts forever, but that doesn't mean you shouldn't get the most out of your investment. The 1TB Aura 6G SSD is designed and built using tier-1 NAND flash. Utilizing a suite of industry-leading controller technologies and backed by a 3-year warranty, OWC SSD's are engineered to keep working reliably at max performance long into the future. This adds up to a MTTF that is higher than most enterprise class hard drives and SSDs on the market today.

OWC Envoy Pro
• Power Supply Bus-powered via USB 3.0 port (no AC adapter required).
• Complements rMBP design, anodized aluminum finish.
• Super-quiet, fanless operation.
• Non-skid rubber feet.

What's in the box:

  • Other World Computing 1TB Aura Internal 6G mSATA SSD
  • Envoy Pro USB 3.0 Bus-Powered Storage Solution
  • Carrying Case
  • Double-Shielded USB 3.0 Connecting Cable
  • Pentalobe Compatible Driver
  • Torx T6S Security Driver
  • Torx T-5 Screwdriver
  • Other World Computing 3 Year Limited Warranty
