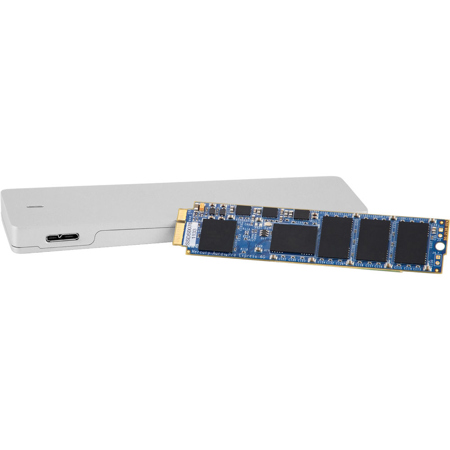

OWC 480GB Aura Internal SSD with Envoy Storage Solution for MacBook Air 2010-2011 Edition, 507MB/s Read Speed and 454MB/s Write Speed

SKU: OWCSSDA6480

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2017-01-18T12:47:32

Rated 5 out of 5

Good flash drive.

Works flawlessly.

APRIL S.

2016-11-18T12:41:59

Rated 1 out of 5

Buggy to No Performance

Spent about a full day trying to get this card to work in my MBP. Even spent 2 hours at the Apple store where they also couldn't get the system to fully boot up. Computer boots and runs up fine using an external drive. It better to have Apple service it and install their drive. Lesson Learned.

PhilW

OWC Aura SSD Specifications

  • Capacity

    480GB useable capacity
    Total Flash Memory Components 512GB
    32GB allocated to real-time data redundancy & error correction

  • Formatted Capacity

    447GiB

  • NAND

    Tier 1 Multi-Level Cell (MLC)
    Sync-NAND Flash Memory

  • Controller

    SandForce Processor with full SF2200 Series 7% Over Provisioning firmware set.

  • SMART Attributes

    Standard

  • RAID Support

    Yes

  • RoHS Compliant

    Yes

  • MTBF (Mean Time Between Failures)

    2000000

  • Data Reliability

    ECC Recovery: Up to 24 bytes correctable per 512-byte sector

  • Security

    Chip Based Data Encryption: 128-bit AES-compliant

  • TRIM Support

    Yes

  • Nonrecoverable Read Errors

    Less than 1 sector per 1016 bits read

  • Sequential Read 6Gb/s (up to)

    507MB/s

  • Sequential Write 6Gb/s (up to)

    454MB/s

  • Sequential Read 3Gb/s (up to)

    285MB/s

  • Sequential Write 3Gb/s (up to)

    275MB/s

  • Random 4K Read

    Up to 50000 IOPS

  • Random 4K Write

    Up to 50000 IOPS

  • Read Latency

    Less than 0.1ms

  • Write Latency

    Less than 0.1ms

  • Power

    Read Power: 2.2W
    Write Power: 2.5W
    Idle Power: 0.09W
    Power Nap compatible

  • Environmental: Operating

    32 to 158 deg. F / 0 to 70 deg. C

  • Environmental: Non-Operating

    -40 to 185 deg. F / -40 to 85 deg. C

  • Chipset

    High-performance ASMedia 1051e chipset

  • Interfaces Supported

    USB 3.0 interface Backwards compatible

  • Port Configuration

    USB 3.0 interface (Micro-B port)

  • Maximum Data Transfer Rate

    One USB 3.0 (Micro-B) port, up to 500MB/s

  • System Requirements

    Macintosh: Mac OS 8.6 or later and an available and supported USB 3.0 port.
    PC: Windows 98SE or later and an available and supported USB 3.0 port.
    Linux: Linux OS versions and an available and supported USB 3.0 port.

  • Cooling

    Silent
    fanless operation

  • Power Supply

    Bus-powered via USB port (no AC adapter required)

  • Drive Requirements

    Compatible with the Flash SSD module used in 2010-2011 11.1" and 13.3" MacBook Air models.

  • Dimensions (W x D x H)

    1.79 x 5.90 x 0.279 to 0.466" / 4.55 x 14.99 x 0.71 to 1.18cm

  • Weight

    2.8oz / 79.38g

  • UPC Code

    812437020144

About OWC Aura SSD

FEATURED REVIEWS

Good flash drive.

By APRIL S.

Works flawlessly.

OWC's Aura SSD provides up to nearly 8x the capacity over factory SSDs while over factory SSDs while offering Faster Performance vs. Factory Options.

• One of the fastest Internal SSDs available.
• Includes sleek, tapered aluminum Envoy storage solution, Torx T-5 screwdriver and a Pentalobe compatible driver.

Get 3G speeds with 2010 MacBook Air
• More SPEED get up to 275MB/s 68% faster than factory.
• More STORAGE get up to nearly 8x more capacity!
• More COMPLETE includes all the tools and free video necessary for installation.

Get 6G speeds with 2011 MacBook Air
• More SPEED get up to 507MB/s 3x faster than factory.
• More STORAGE get up to nearly 8x more capacity!
• More COMPLETE includes all the tools and free video necessary for installation.

Once again, OWC provides Mac users an upgrade path that delivers higher performance, functionality and reliability! Whether you own or are considering a 2010 or 2011 base model 11" MacBook Air with a 64GB Solid State Drive or the top of the line 13" model with a 256GB SSD, OWC's Aura SSD offers higher speed than the factory SSD. Get up to 275MB/s speeds and up to 8X more storage capacity than factory options with your 2010 MacBook. And get up to 507MB/s speeds and up to 8x more storage capacity than factory options with your 2011 MacBook Air!

And unlike the factory pre-configured models with no other SSD choices offered. Now thanks to OWC and the Aura SSD line, you can buy the MacBook Air you want today and enjoy the flexibility of upgrading for higher performance when you need it.

Everything you need in one package, immediately ready to assemble:
• Reuse the factory SSD via the OWC Envoy as an external storage solution.
• Take your data with you - Small enough to keep in a pocket or laptop case!
• Easily add additional laptop storage with no AC adapter required.

The Aura SSD line features industry leading SandForce DuraClass Technologies:
• DuraWrite extends the endurance of your Solid State Drive (SSD).
• Intelligent Block Management & Wear Leveling automatically distributes data evenly across the entire SSD.
• Intelligent Read Disturb Management spreads the active read/write across the flash components eliminating data corruption caused by constant use.
• Intelligent "Recycling" for advanced free space management gradually re-writes data across the SSD over time to ensure data never gets corrupted.
• RAISE (Redundant Array of Independent Silicon Elements) protects the data on your drive similar to having a RAID setup.
• Best-in-Class ECC Protection for longest data retention and drive life.

The Envoy offers the perfect companion storage solution for your MacBook Air
Get the ultimate combination of elegance and functionality in a sleek, portable external storage solution designed to complement the MacBook Air - in both appearance and performance. Its super-speed USB 3.0 interface is capable of speeds up to 500MB/s to ensure your workflow moves as fast as you do and is backwards compatible with USB 2.0. Its bus-powered design means no AC power adapter is required making it an ideal portable Plug and Play solution - just plug the USB cord into your computer and the Envoy is ready to go.

Better by Design
"Mean Time To Failure" - We all know that nothing lasts forever. But that doesn't mean you shouldn't get the most out of your investment. OWC SSD with DuraWrite Technology, optimizes writes to the flash memory over conventional controllers increasing the overall endurance and reliability of the complete SSD. Highly intelligent block management and wear leveling also extends the overall endurance.

With this technology, even MLC-based SSDs can operate for years in demanding use applications without daily write restrictions. This adds up to a MTTF that is higher than most enterprise class hard drives and SSDs on the market today. Additionally, as there are no volatile memory elements in this storage device, the need for cache is completely negated. The drive is just that fast from the get-go!

OMC Envoy
• Integrated power/activity LED light.
• Non-skid rubber feet for secure placement on any surface.
• Durable painted aluminum body complements Mac aluminum finish.

What's in the box:

  • Other World Computing 480GB Aura Internal SSD with Envoy Storage Solution
  • Carrying Case
  • High-Quality Double-Shielded USB 3.0 Standard A to Micro-B Connecting Cable
  • Pentalobe Compatible Driver
  • Torx T-5 Screwdriver
  • Assembly Manual
  • User Guide
  • Other World Computing 3 Year Limited Warranty
