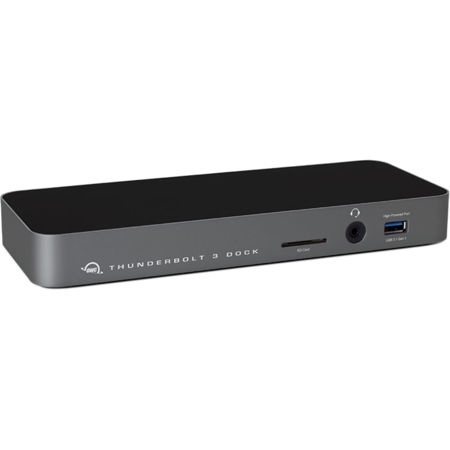

OWC 12-Port Thunderbolt 3 Dock with Cable for iMac Pro, iMac and MacBook Pro, Space Gray

SKU: OWCT3DK12PGY

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-07-25T09:40:09

Rated 3 out of 5

Disappointing

The audio jack is too noisy to be usable. I can't get working video from the mini-displayport output (via two different mini-dp to hdmi adapters that have worked fine in the past).

Dan C.

2020-08-05T13:39:20

Rated 5 out of 5

Great Hub

I read several negative reviews on this hub most IMO are related to using improper cables. This hub is a must with new MacBook Pro 16. If you have a mix of old and new technology this enables communication. I got this unit a couple of weeks ago and it worked flawlessly out of the box.

GARY L.

2019-07-11T08:40:18

Rated 4 out of 5

OWC delivers again

This has worked without issue from the moment I plugged it in. What else can you expect?

SCHOOL P.

2019-06-18T08:45:50

Rated 5 out of 5

Best dock

It work great, just what I needed

Ken B.

2018-12-14T13:15:08

Rated 1 out of 5

Don't bother if buying for Mini-Display Port - it won't work

It's not clear to me why most all the reviews here are 5 star - the main reason I bought this to replace my OWC thunderbolt 2 dock was for the mini display port - save your money - to confirm bunches of reviews at other sites, the mini display port doesn't work properly - apparently even for 5K displays, letalone my old Apple Cinema Display. I'll keep the device because I can't be bothered to package/return but suggest looking elsewhere. NOTE TO REVIEWER: if this review doesn't get posted I will make it clear at other websites that Adorama does not post negative reviews. If I had seen the other reviews, I would not have purchased.

dr g.

2018-11-11T00:20:09

Rated 5 out of 5

Great solution for my iMac 27" 4K

Really need the extension for the thunderbolt 3 to connect with external hardware, speakers, secondary display printer and scanner. It dose all the jobs that I need.

XIN S.

2018-06-15T05:39:31

Rated 5 out of 5

Functional

Very functional

Marco S.

2018-05-21T13:07:18

Rated 3 out of 5

T3 Dock

I have found the Dock to be useful for many ports of entry for devices, especially because it is the only Dock on the market with a Firewire port. However, there are times when the computer iMac pro with High Sierra) and Thunderbolt 3 Dock do not speak to each other completely. This requires some technical adjustments and restarting. This slight instability is unfortunate and causes me to withhold some stars in their rating.

SCOTT F.

2018-02-01T09:23:53

Rated 5 out of 5

Great for the iMac/iMac Pro

Having the extra ports accessible, yet also unobtrusive, is a welcome addition to my work area. I'm happy with dock and its performance.

CHRISTOPHER F.

2018-01-15T16:16:24

Rated 4 out of 5

Good but not perfect

I just got a new 2017 Macbook Pro and bought this to hook up my peripherals including 2 external monitors. One hooked up via displayport and the other via thunderbolt 3. The one via displayport does not give full resolution. Otherwise, I have no complaints.

STANLEY S.

2018-01-12T15:27:54

Rated 4 out of 5

Nice combination of connectivity for a hefty price.

Good: 1. Helpful in my case to have an old Firewire 800, for importing Digital Video, even through outdated, and also 2. The SD card slot, for downloading photos, I really needed 3. I look forward to rigging up the Digital audio port to my receiver at some point and or ethernet port at some point. 4. Just lots of options, and I like the form factor and the general arrangement of ports. Bad: 5. The only other thing would be to have a third Thunderbolt 3 (USB C) port, just for long power cord on the front panel. 6. I haven't got to downloading drivers, though apparently it needs a few, which is not good hardware design, in my opinion. Everything should work without separate drivers. 7. And I think it is really quite a bit too much money for this little box, but it had what I needed and not too much extra. In a year, I'm sure it will be available for $, which is as much as it should cost.

Ragan M.

2018-01-10T10:41:50

Rated 4 out of 5

Must have for Mac Pro book

it's a great units...the only downside is that it does not have enought usb c port for the price....I wish it would have at least 4 or 6 port... the pirce is a bit to high too..

KHAM Y.

2017-10-26T08:46:45

Rated 4 out of 5

Great but not perfect

The only complaint I have about this device is if you have a MacBook Pro that has Windows 10 and OSX on it, you have to restart the MacBook Pro after each disconnect from the OWC Dock in order to get the mouse to work in Windows again. Not a huge issue but definitely an annoyance. Outside of that it's a great product.

Miles P.

2017-09-26T13:29:52

Rated 4 out of 5

Lots of ports, solid build quality

I like the fit and finish of this dock. The SD card slot and USB port on the front work well for my setup. Everything else is plugged into the back, keeping all of the cord clutter out of the way. Overall, it works very well to add a bunch of peripherals to a MacBook Pro 13". It has a wide variety of ports. I have no need for the Firewire, ethernet and optical audio ports, so those end up being wasted opportunities for my setup (but I know they are helpful for other users). I would have preferred another USB port instead of some of these three. I would have liked a USB-C port (or another Thunderbolt 3 port) in place of these ports as well. There's 2 thunderbolt 3 ports, but one of them is used to connect the dock to the computer. I'm using the other one to connect a monitor using a DisplayPort to USB-C cable. I wish the miniDisplayPort was a Thunderbolt 2 port. It works well for running a monitor, but doesn't work with an external storage device that uses Thunderbolt 2 (same shape plug, but not the same interface). If it was a Thunderbolt 2 port, I think I would have been able to plug the monitor into the extra port on the storage device and then plug the storage device into this dock. Bottom line, it works very well and looks great with my setup. I just wish the port configuration was a little different … but they'll never please everybody in terms of this.

LAURA G.

2017-09-25T22:52:47

Rated 5 out of 5

Great Product

I recently had my old mac pro 2009 crash out on me, and replaced it with a 2017 macbook pro. Needed a solution to connect my monitors and such, and this is it! Hooked up to a 4k monitor and 1080p second screen with no issues. Plug one usb c and your good to go!

Brian B.

2017-09-19T11:39:22

Rated 5 out of 5

Excellent product

Excellent product with my new MacBook Pro 15" with touch bar. I have my cat5 cable plugged in from my att router and still get 865 mbps of download speeds and 789 Mbps of upload speeds without any drops of quality issues with 4K videos and games. This is the best hub I have purchased so far.

Montreal D.

2017-09-13T11:36:09

Rated 5 out of 5

Great tool

Two purchased for co-workers with MacBook Pro. Keeps add-on devises together. Great tool. JO

James H.

2017-09-12T15:00:50

Rated 5 out of 5

Great Thunderbolt 3 Hub

Works great

PAUL C.

2017-09-06T13:36:49

Rated 3 out of 5

Not as expected

This was a disappointment after all the wait for it to finally be released. I don't know if the lower charge wattage caused my issue or what, but I was not able to get usb ports and audio port to work without a lot of troubleshooting and a reboot. I'm using a 2016 15" MBP and was looking for a single cable look for the desk and I just couldn't get this to work. I worked with OWC to try and figure it out as well and their solution was to plug in the manufactures power adapter and just use the TB3 cable for data and not power as well. I didn't want to mess with reboots and drivers (which I did install) and to have the ports disappear after sleeping or unplugging for a bit so I returned this unit.

Steve L.

2017-08-31T13:05:19

Rated 4 out of 5

Expensive, but works well.

Very convenient! Sit my macbook down and 1 USB-C cable to plug in and I'm in desktop mode. Makes for a very clean setup. Took 1 star away just because I feel that it's overpriced :-/

Jordon K.

2017-08-31T08:48:12

Rated 4 out of 5

Excellent construction and easy to install

Has oodles of extra ports and includes charging. Would be nice to have software included to be able to unmount any disks with one click.

Alvin P.

2017-08-31T04:43:56

Rated 5 out of 5

Worth the Wait

It took forever to ship, but the product was worth the wait. I went from hooking up a USB hub (with adapter), thunderbolt 2 display (with adapter) and power cable every morning to a single thunderbolt 3 cable. Haven't experience a single dropped connection, which is an improvement from my prior workflow when USB devices would suddenly become unresponsive.

Scott B.

2017-08-30T14:25:43

Rated 3 out of 5

Challenges connecting 4k monitor to mini DP port on dock - otherwise good

4K Dell monitor will only work @60Hz refresh rate when connected to the OWC Thunderbolt 3 dock via DP monitor port to USBC cable connected to Thunderbolt 3 port on the dock. I was able to get the monitor to also work @30Hz refresh rate when connected via HDMI port on monitor to mini DP port on the dock. Great customer service from Adorama.

Trevor L.

2017-08-30T10:43:26

Rated 5 out of 5

Make the macbook great again!

Really convenient, i have 2 thunderbolt monitors and my headphones plugged into this at my office, i used to have to carry my charger around and plug it in when i get to work, then also plug in the monitors, the charger and my headphones. Now i carry my charger only for use when not at the office, and i have a single thunder bolt cable plugged in that connects everything and charges my laptop. Totally worth it, and worth the wait too

Pieter T.

2017-08-06T09:10:22

Rated 5 out of 5

THUNDERBOLT 3 DOCKING

VERY EASY TO SETUP, AND NECESSARY WITH THE NEW MACBOOK PROS AS IS MUCH EASIER TO CONNECT YOUR DEVICES AND MONITORS. A LITTLE PRICEY BUT WELL WORTH IT.

Robert M.

2017-07-26T08:49:19

Rated 5 out of 5

Great hub from MacBook Pro 2016

Waited ages for this to finally ship and I'm glad I did. Really great hub for connecting everything. plus it charges the laptop. No issues so far

Robert M.

OWC Thunderbolt 3 Dock Specifications

  • Compatibility

    iMac Pro, iMac and MacBook Pro

  • Software Requirements

    OS: macOS 10.12 or later
    Windows 10 or later
    Windows Server 2016 or later
    Driver: Driver required for macOS

  • Hardware Requirements

    Mac or PC featuring built-in Thunderbolt 3 interface

  • Bootability

    Compatible with bootable USB devices

  • Chipsets

    Thunderbolt 3: Intel DSL6540
    USB: Fresco Logic FL1100EX
    Ethernet: Intel i210
    S/PDIF Audio: C Media CM6533
    Headphone / Mic: C Media CM6533
    SD 3.0: Genesis Logic GL3224

  • Device Ports

    (2) Thunderbolt 3 ports (downstream port can support USB 3.1 Gen 2 devices)
    (1) mini DisplayPort
    (4) USB 3.1 Gen 1 Standard-A ports (rear) - 1 compliant with Battery Charging 1.2 spec
    (1) USB 3.1 Gen 1 Standard-A port (front) - compliant with Battery Charging 1.2 spec
    (1) SD 3.0 media card reader
    (1) Gigabit Ethernet
    (1) S/PDIF digital audio port (output only)
    (1) Hybrid 3.5 mm headphone / mic jack

  • Display Support

    Supports up to one 5K display at 60Hz or two 4K displays at up to 60Hz
    Thunderbolt 3 port supports video up to 5K at 60Hz via a native Thunderbolt 3 display or 4K at 60Hz via a Thunderbolt display or a USB-C display adapter
    Mini DisplayPort 1.2 port supports up to 4K at 60Hz

  • Power

    Can power / charge TB3 laptops up to 60W
    External UL-listed universal auto-switching power supply
    AC input: 100 ~ 240V, 50/60Hz
    DC output: 20V, 6.75A

  • Cable Length

    1.5' (0.46m)

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Non-Operating Temperature

    -4 to 158 deg. F (-20 to 70 deg. C)

  • Dimensions (HxWxL)

    1 x 9.1 x 3.5" (25.40 x 231.14 x 88.90mm)

  • Weight

    500g (17.64 oz)

  • UPC Code

    812437029505

About OWC Thunderbolt 3 Dock

FEATURED REVIEWS

Great hub from MacBook Pro 2016

By Robert M.

Waited ages for this to finally ship and I'm glad I did. Really great hub for connecting everything. plus it charges the laptop. No issues so far

Great Hub

By GARY L.

I read several negative reviews on this hub most IMO are related to using improper cables. This hub is a must with new MacBook Pro 16. If you have a mix of old and new technology this enables communication. I got this unit a couple of weeks ago and it worked flawlessly out of the box.

Now for Mac and Windows PC
OWC's Thunderbolt 3 Dock set the standard for amazing connectivity and now its 12-port flexibility is available to the Windows world. It's the perfect single cable dock solution that enables Mac and Windows PC laptops to serve double duty as a desktop powerhouse or for equipping your desktop with easy-to-access ports.

• Easily connect all of your devices
• Mac and Windows PC compatible
• Dual Thunderbolt 3 (USB-C) ports
• (5) USB 3.1 Gen 1 ports
• Daisy chain 6 Thunderbolt devices
• Connect two 4K displays or one 5K display
• Includes Thunderbolt 3 cable

Convenient rear and front-facing ports make it easy to connect any device, interface, audio jack or SD card. It's the perfect dock with a sleek design and small footprint designed to occupy minimal space.

Make Your Laptop a Desktop Powerhouse
Stop juggling countless adapters and connections to make your laptop serve desktop duty. All you need to do is plug the OWC Thunderbolt 3 Dock into your computer to instantly connect to all of your desktop devices and displays. When it comes to power, there's no need to worry. The OWC Thunderbolt 3 Dock also charges your connected laptop and smart devices to ensure your batteries are fully charged when you go portable.

Add Connectivity to Your Desktop
Many desktop or studio workflows tuck the computer out of sight, which makes port access difficult. Upgrade your workstation with the OWC Thunderbolt 3 Dock for easy access to 12 amazing ports of connectivity.

• (2) Thunderbolt 3 USB-C ports
• (5) USB 3.1 Gen 1 ports, 1 forward facing
• (1) SD card reader
• (1) Mini DisplayPort
• (1) Gigabit Ethernet port
• (1) Analog audio in/out for headphones, speakers and mics
• (1) S/PDIF digital audio output

Dual 4K, Dual HD or Single 5K
Take your digital view to the next level when you connect the latest generation 5K displays or up to dual 4K displays. If your Mac or Windows PC can drive the displays, the OWC Thunderbolt 3 Dock can make the connection.

OWC Thunderbolt 3 Cables
An Thunderbolt 3 cable is included with the OWC Thunderbolt 3 Dock, but if your workflow demands a longer cable to make the connection, OWC Premium Thunderbolt 3 (USB-C) cables are the perfect choice.

What's in the box:

  • OWC 12-Port Thunderbolt 3 Dock
  • 1.5' Thunderbolt 3 Cable
  • External Power Supply & Power Cable
  • Quick Start Guide
  • User Guide (Download Only)
  • OWC 2 Year Limited Warranty
