This item is no longer available.
Review Summary
2019-09-10T10:12:37
I was replacing an old Mac Pro tower with a new computer that is all display, but no room for storage. I had 4 hard drives inside the old tower, so I put them all into the new OWC enclosure. The build of the enclosure is excellent. Very solid with lots of vibration dampening. I migrated my old data from my old bootable hard disk to the new SSD via the Thunderbolt 3 connection. It took about 5 hrs. to transfer 1 TB of data. The Thunderbolt 3 is rated at 40Gb/s. The migration assistant displayed the speed of flow which ran between 35 Gb and 59 Gb. It produced all it was advertised to do. Noise?. The fan does make some noise. It's not bad. The hard drives themselves make most of the noise as they read or write. The enclosure sits on a desk about two feet from either myself or the computer, so there is going to be some sound. I'm really happy with it and definitely say it's worth a look.
DON M.
2017-05-14T04:31:14
After two data recoveries from my external hard drive for my pics nearly lost as a result of crashes/ accidental drops . I needed a better system. I was able to recover my images, but at a cost. I now have comfort and confidence my images will be safe. Though costly, but as I have said- it's cheaper than a data recovery ( I was lucky to get them back. ) I no longer worry about losing my pics. Peace of mind is priceless.
GARY M.
2016-10-24T08:43:35
This thing is amazing! I mainly shoot photos but I'm moving into video and my single disk USB 3.0 external (Lacie porche 4tb) was not fast enough for my needs. I first tried out a Mediasonic proraid 4, loading it with four Toshiba 3tb 7200rpm drives in raid 5 and I just wasn't happy with the speeds I was getting in Black magic's speed test. I sent it back and bought this OWC Thunderbay. The Proraid 4 is fine for photos and backup but for speed, the Thunderbay is 2 or 3 times faster. Yes, this is way 2 or 3 times more expensive but you are paying for speed and getting a bonus in the quality of the product. The thunderbay is a very solid build. I raid 5 with the the same drives I got around 200mbps read and write in the Proraid4, in the OWC Thunderbay 4, I'm getting about 520-530mbps.The software was easy to use as well. Only took about 10mins to install the drives and set up the raid 5 once I figured out where the softraid app was. I definitely recommend this enclosure to anyone working with photos and video. Excellent storage solution.
CHRISTOPHER S.
2016-01-21T14:34:48
This is really the best option for those editing on a Mac. No only do you get speeds that are slightly faster than the average SSD, you also get MUCH more storage capacity AND data protection. In my tests with the 20TB version I get about 505MB/s write and 580MB/s read. It's setup from the factory in Raid5 so you don't have to initialize the drives which saves time. In Raid 5 mode (best mode) you get 15TB of usable space as 5TB is setup for data protection. If one of the drives ever dies you slide it out and replace with a new one and you won't loose any data. I've been suggesting these to people for over a year now and I'm going to keep doing so. I have a video review of this drive on YouTube if you want to see it in action, speed tests, unboxing, and daisy chaining to a display just do a search for Max Yuryev Thunderbay and you'll find it. The 1.5 to 2.5 times as much. I would recommend it to anyone who needs a fast and reliable drive.
MAKSIM Y.
Thunderbolt 2
Thunderbolt 2
JBOD: Utilize each of the four drives independently
RAID: Use any Software RAID of your choice to setup the ThunderBay 4 for multi-drive performance or data redundancy.
4x 8.0TB Seagate NAS Enterprise Capacity Hard Disk Drives
7200 RPM
256MB per drive, 1024MB total for the solution
Thunderbolt - (2) Thunderbolt 2 ports
Thunderbolt 2 - 20Gb/sec
It can be used as a Thunderbolt startup drive on Macs running Mac OS X.
Any Mac with a Thunderbolt port running OS X 10.9 or later
Any PC running Windows 7 Service Pack 1 or later with a Thunderbolt port. Driver required for proper installation. (3.3MB ZIP)
Boot Camp is not supported. The Thunderbolt certification process does not include Macs running Windows through Boot Camp.
Internal UL Listed U.S./International Auto Switching 100 to 240v, 50/60Hz input, 12 Volt 16.66 Amp output Power Supply (power cords for International use sold separately).
Operating: 5 to 42 deg. C (41 to 108 deg. F)
Non-operating: -40 to 65 deg. C (-40 to 149 deg. F)
Operating: 8% - 90% RH (Non-condensing)
Non-operating: 5% - 95% RH (Non-condensing)
65G 2mS; (non-operating) 175G 2mS
Operating: 1.0G (5 - 300Hz)
Non-operating: 5.0G (5 - 500Hz)
Intech Hard Disk SpeedTools Utilities OEM (For Mac OS 8.6 - X only)
ProSoft Engineering Data Backup for Mac OS X v10.2.8 or later
Over 1.5GB of Freeware, Shareware, Public domain software installed
9.65 x 5.31 x 6.96" (245.11 x 134.87 x 176.78mm)
Approximately 8.6lbs (93.90kg) (no accessories)
812437024227
Best video editing drive
By MAKSIM Y.
This is really the best option for those editing on a Mac. No only do you get speeds that are slightly faster than the average SSD, you also get MUCH more storage capacity AND data protection. In my tests with the 20TB version I get about 505MB/s write and 580MB/s read. It's setup from the factory in Raid5 so you don't have to initialize the drives which saves time. In Raid 5 mode (best mode) you get 15TB of usable space as 5TB is setup for data protection. If one of the drives ever dies you ...
View full Review
OWC ThunderBay 4-Bay Thunderbolt 3 Enclosure
By DON M.
I was replacing an old Mac Pro tower with a new computer that is all display, but no room for storage. I had 4 hard drives inside the old tower, so I put them all into the new OWC enclosure. The build of the enclosure is excellent. Very solid with lots of vibration dampening. I migrated my old data from my old bootable hard disk to the new SSD via the Thunderbolt 3 connection. It took about 5 hrs. to transfer 1 TB of data. The Thunderbolt 3 is rated at 40Gb/s. The migration assistant displa...
View full Review
The Speed You Need
Empower your creative production workflow with this super-fast, 4-Bay, RAID-ready drive with dual Thunderbolt ports. Add vast amounts of high-performance storage with ThunderBay 4. Utilize each of the four internal drives independently or use the software RAID of your choice to setup a multi-drive array for high-performance or data-redundancy.
Four 3.5" drive bays
Incredible Thunderbolt 2 performance
Plug and play RAID-ready
Up to 859MB/s read / 838MB/s write RAID 0 performance
Edit, Experiment, Create, Design
With ThunderBay's performance capabilities you can complete projects faster, have more time to experiment and push your creations to the next level. Enhance editing capabilities in video apps like Apple Final Cut Pro, Adobe Premiere and Avid Media Composer. Empower greater audio production capabilities in audio apps like Avid Pro Tools and Logic Pro X. Edit large photos in apps like Adobe Photoshop and browse large photo libraries in apps like Apple Aperture and Adobe Lightroom. Simply put, you can do more with a ThunderBay 4 enhanced workflow and with a RAID 5 array you get data redundancy on top of great performance!
Certified and Tested
Each ThunderBay undergoes OWC's multi-hour drive "burn-in" performance certification procedure prior to shipping. This ensures your ThunderBay arrives operating properly and ready for demanding use.
4 drive bays plus so much more
Time-Tested Cooling

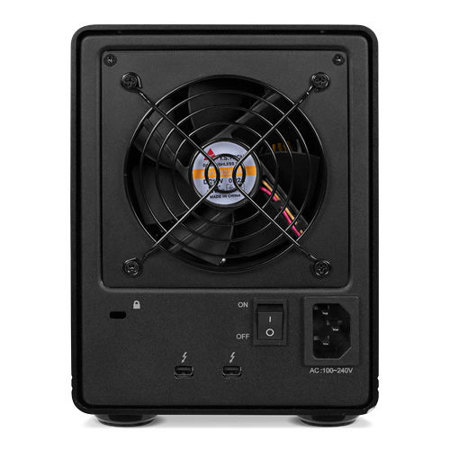

Built on OWC's time-tested enclosure cooling technology, ThunderBay utilizes an open "flow-thru" vented design with an oversized 92 mm, low-turbulence, noise-quieting fan to keep the drives running cool and reliably.
Multi-Drive
Daisy-chain up to six ThunderBays for massive storage capabilities and increased performance or connect multiple ThunderBays to multiple Thunderbolt 2 ports to achieve exponential speed capabilities.
Vibration Dampened
ThunderBay's drive isolating design reduces sonic resonance and is aided by over-sized, rugged, vibration-absorbing, non-skid feet.
DisplayPort 1.2 Support
Dual Thunderbolt ports let you connect the display of your choice that your computer can support, including 4K displays.
OWC Thunderbolt Cable
ThunderBay comes with an OWC one-meter certified Thunderbolt cable.
