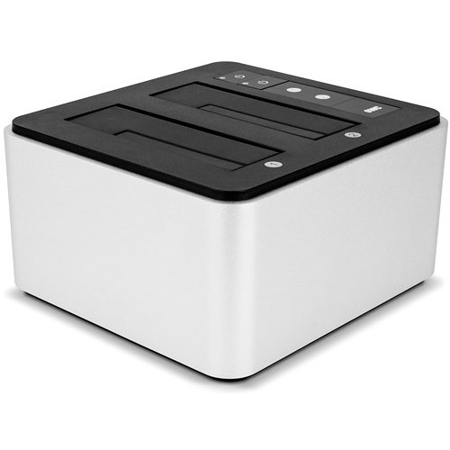

OWC Drive Dock Dual Drive Bay for Bare 2.5" and 3.5" SATA Drives

SKU: OWCTB2U3DKR2
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

OWC Drive Dock Specifications

  • Software Requirements: OS

    Thunderbolt: OS X 10.10 or later
    Windows 7 SP1 or later
    USB 3.0: OS X 10.6 or later
    Windows XP or later
    Linux Kernel v. 2.6.31 or later
    Driver: Driver not required for OS X
    Driver required for Windows over a Thunderbolt connection
    (Note): Thunderbolt connectivity for OWC Drive Dock is not supported in Boot Camp

  • Hardware Requirements

    Minimum: Mac or PC featuring Thunderbolt or USB 2.0 interface
    Recommended (Best Performance): Mac or PC featuring Thunderbolt 2 or USB 3.0 interface

  • Bootability

    Thunderbolt: OS X 10.10 or later
    USB: Any Mac that supports booting via USB

  • Interface (Chipset)

    2x Thunderbolt 20Gbps
    1x USB 3.0 (ASMedia ASM1153E)

  • Drives Supported

    2x 3.5" SATA 6Gb/s drives
    2x 2.5" SATA 6Gb/s drives

  • Performance: Benchmarks

    Single Drive: Thunderbolt: 522MB/s Read and 477MB/s Write
    USB 3.0: 427MB/s Read and 347MB/s Write
    RAID 0: Thunderbolt: 521 MB/s Read and 482 MB/s Write
    USB 3.0: 429 MB/s Read and 352 MB/s Write
    (Note): Speeds will vary based on drives used
    setup and other factors.

  • Power Supply

    Internal UL-listed universal auto-switching
    AC input: 100 to 240V
    50/60Hz
    DC output: 12V, 6.25A
    Adapter plugs for international use sold separately.

  • Environmental: Operating

    41 to 86 deg. F / 5 to 30 deg. C

  • Environmental: Non-Operating

    -4 to 122 deg. F / -20 to 50 deg. C

  • Relative Humidity: Operating

    8 to 90% (non-condensing)

  • Relative Humidity: Non-Operating

    5 to 95% (non-condensing)

  • Dimensions (H x W x L)

    3.3 x 6.3 x 5.8" / 8.4 x 16.0 x 15.0cm

  • Weight

    Without Drivers: 2.5lbs / 0.975kg

  • UPC Code

    812437022483

0 Accessories for OWC Drive Dock Dual Drive Bay for Bare 2.5" and 3.5" SATA Drives

About OWC Drive Dock

The Ultimate Drive Dock
Drive Dock is the ultimate, high-performance bare drive access tool. For creative workflows, backup or other tasks requiring constant access to multiple drives, Drive Dock delivers a compact, easy solution with the exceptional performance of Thunderbolt 2 technology.

• Two drive bays for 2.5" or 3.5" hard drives and SSDs
• Dual Thunderbolt 2 ports and a USB 3.0 port
• Independent power switches and simultaneous operation
• Internal power supply with universal compatibility
• Mac and PC compatible

An Essential Workflow Solution
OWC Drive Dock is the fastest way to access bare SATA drives. Hot swap, read multiple drives simultaneously or boot from bare drives, all at the speed of the Thunderbolt 2 and USB 3.0 interfaces. For video and audio content pros working with multiple bare drives on big projects, Drive Dock delivers extreme transfer speeds with amazing flexibility and convenience, making it an indispensable drive tool.

Designed to Accommodate Your Life
Drive Dock's unique design makes hot-swapping a breeze. Two drive bays accommodate both 2.5" and 3.5" drives and can access a drive in each simultaneously. Each bay features its own independent power switch and LED activity monitor. Dual Thunderbolt 2 ports deliver extreme-speed data transfers and support daisy-chain expansion with up to five additional Thunderbolt devices. Drive Dock also includes a USB 3.0 port for versatile compatibility and the auto-switching internal power supply is compatible with any dual prong cable.

Customized Flexibility
Drive Dock is flexible enough to use on almost any system. It works perfectly as an on-location backup solution or for industry professionals using multiple bare drives. Featuring rugged aluminum construction, quiet, fanless operation and complete with USB 3.0 and Thunderbolt cables, the OWC Drive Dock is an essential component to any high-demand workflow.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Other World Computing Drive Dock Dual Drive Bay
  • 24" USB 3.0 Cable (Standard-A to Standard-B)
  • 39" Thunderbolt Cable
  • Internal Power Supply
  • Power Cable
  • User Guide
  • Other World Computing 3 Year Limited Warranty
