OWC ThunderBay 8 Specifications

General

General

Jump to...
  • Number of Bays

    8x 2.5"/3.5"

  • Connections

    2x USB Type-C Thunderbolt 3 (40 Gb/s)
    1x DisplayPort (DisplayPort 1.2)

  • Compatible Drive Interface

    SATA

  • Form Factor

    Desktop

  • Maximum RAID Transfer Rate

    2586 MB/s (Read/Write)

  • RAID Modes

    RAID 0, 0+1, 1, 4, 5, JBOD

  • Hot-Swap Support

    Yes

  • Operating System Support

    Windows, macOS/OS X

  • OS Compatibility

    Windows 10
    macOS 10.13
    macOS 10.14
    macOS 10.15

  • Total Raw Capacity

    96 TB (8x 12 TB)

  • Type

    Hard Disk Drive

  • Interface

    SATA

  • Initial RAID Configuration

    RAID 5

Electrical

Jump to...
  • Power Source

    Internal Power Supply

  • AC Input Power

    115 to 230 VAC, 50 / 60 Hz at 1.8 to 3.5 A

Security

Jump to...
  • Security Features

    Kensington Security Slot, Lockable Bay Door

Environmental

Jump to...
  • Temperature

    Operating: 41 to 95 Degree F (5 to 35 Degree C)
    Storage: -4 to 140 Degree F (-20 to 60 Degree C)

  • Certifications

    BSMI, CE, FCC, RCM, VCCI, as per Manufacturer

Physical

Jump to...
  • Cooling

    1x 92 mm Fan

  • Status Monitoring

    LED Indicator

  • Dimensions (H x W x D)

    10.2 x 7.1 x 9.4" (259.08 x 180.34 x 238.76mm)

  • Weight

    16.14 lbs (7.32kg)

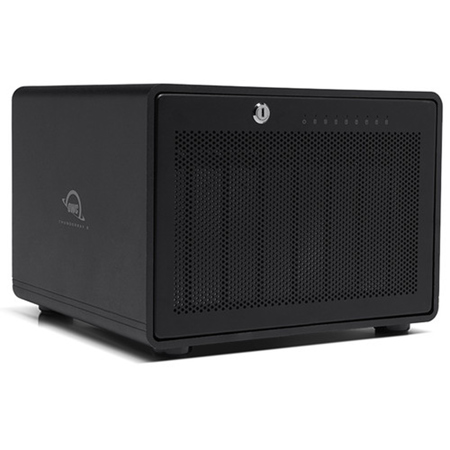

About OWC ThunderBay 8

This latest addition to the popular ThunderBay line, introduced in 2014, now offers eight drive bays for either 2.5-inch or 3.5-inch HDDs and/or SSDs in any combination. The OWC ThunderBay 8 is like a high-performance personal data center that offers multiple configuration options to suit ever-expanding storage needs.

Photo, film and video editors can take advantage of the largest capacity desktop RAID storage solution we've ever offered to handle the voracious drive space appetite of RAW, 4K, large format, and VR workflows.

Conquer High Bandwidth Demands
With Thunderbolt 3 offering real-world transfer rates up to 2586MB/s and the ability to RAID together eight SSDs or HDDs, ThunderBay 8's rugged, field-tested aluminum design has the under-the-hood horsepower needed to conquer high-bandwidth requirements.

You can even configure multiple ThunderBay 8 solutions connected via multiple Thunderbolt 3 ports on your Mac or PC to achieve exponential speed increases. Whatever your set up, when you're racing against a deadline, ThunderBay 8 puts you in the winner's circle.

Monstrous Capacity
Need even more capacity Daisy-chain up to six of these capacity behemoths together for up to a staggering 864TB. Now you can capture vast amounts of footage from multiple cameras or store vast libraries of production work with a unified and reliable storage solution.

Includes Softraid XT: Easy And Complete Drive Management
SoftRAID XT is the most powerful, intuitive software RAID utility on the market. Multiple RAID options let you select the RAID level that fits you or your project's needs best. If you need maximum volume capacity, optimum drive performance, data protection, or a combination of attributes, SoftRAID has you covered.

Packed with features like drive validation, verification and failure prediction-SoftRAID includes features you simply don't get with hardware RAID. It's like having a datacenter on your desktop! From home users looking to protect photos and documents to professionals needing to protect and quickly access projects, SoftRAID is the perfect solution.

• Advanced: Create RAID 0/1/4/5/1+0 (10) arrays
• Protected: SoftRAID Monitor constantly watches your disks and alerts you if problems are detected
• Validated: Volume validation ensures sectors can be read and parity is correct
• Certified: Checks disks before use to ensure they are safe for data storage
• Vigilant: Error prediction helps protect against unexpected failure
• Universal: Move SoftRAID arrays seamlessly between Macs and PCs with built-in OWC MacDrive technology

Swap And Identify Drives Easily
ThunderBay 8 makes it easy to keep large data sets organized for every project thanks to its eight hot swappable drive bays. Whether you're using 2.5-inch or 3.5-inch HDDs and/or SSDs, the drives mount in alphabetically labeled trays for easy identification and are secured by a thumb screw. If you want the freedom to access an extensive collection of drives quickly, you can create a drive "bullpen" with additional OWC drive trays (sold separately).

As Secure As A Bank Vault
With a locking front panel and security slot on the backside, the ThunderBay 8 is like an ironclad vault l for your data. Plus, with front panel LEDs indicating the status of each drive, you'll know at a glance if your data is secure.

See More, Do More
ThunderBay 8 isn't just about high-capacity, high-performance storage. It's about giving you all the options you need to work at your best. Attach a 5K Thunderbolt display or two 4K displays. Place a USB 3.1 device at the end of a daisy chain. With an extra Thunderbolt 3 port, you have the flexibility to add more devices to your workflow and master any task at hand.

Secure Your Workflow With Owc Clingon
Greatly reduce - if not eliminate - cable strain and accidental disconnects with the OWC ClingOn. These custom cable stabilizers (sold separately) screw into the ThunderBay 8's housing to secure your Thunderbolt 3 and USB-C connections and prevent work session interruption and possible data loss.

Your Digital Life...Protected For Free
Backing up and protecting your data is critically important. But all too often it's a task that falls to the bottom of the "to do" list, and you don't realize it until it is too late. That's why OWC has partnered with Acronis to give you 1 full year of the #1 personal backup and antivirus software to integrate into your workflow.

Acronis Cyber Protect Home Office safeguards you from today's data threats-from accidents to failures to attacks. With easy, intuitive backup and Ai-enhanced antimalware technology, your digital life is protected-photos, files, applications, systems, and the devices they are on.

• Complete Backup and Fast Recovery: quickly restore your files or entire system at any time
• Easy Disk Cloning and Full Image Backup: just two clicks to start a full disk image backup
• Cloud, Local or Hybrid Cloud: back up locally, to the cloud, or both. It's your choice

OWC ThunderBay 8 Features

  • Pro-grade transfer speeds: up to 2586MB/s real-world tested speed with Thunderbolt 3 port (Thunderbolt 2/Thunderbolt backward compatible)
  • Eight hot-swappable universal drive bays: mix or match 2.5" (no adapter needed) and 3.5" HDDs and SSDs
  • Includes SoftRAID: robust software for creating, monitoring, and managing advanced RAID sets
  • See your work: DisplayPort 1.2 for connecting up to a 4K display
  • Daisy-chain expansion: second Thunderbolt 3 port for adding up to five additional Thunderbolt devices
  • Quick drive swaps: thumb screw release trays
  • Plug-and-play ready: no drivers needed and includes Thunderbolt 3 cable
  • Thunderbolt certified for Mac and Windows
  • OWC ClingOn ready: cable stabilizer prevents work session interruption and possible data loss

Key Features

  • Pro-grade transfer speeds: up to 2586MB/s real-world tested speed with Thunderbolt 3 port
  • Eight hot-swappable universal drive bays: mix or match 2.5"and 3.5" HDDs and SSDs
  • Includes SoftRAID: robust software for creating, monitoring, and managing advanced RAID sets
  • See your work: DisplayPort 1.2 for connecting up to a 4K display
  • Daisy-chain expansion: second Thunderbolt 3 port for adding up to 5 additional Thunderbolt devices
  • Quick drive swaps: thumb screw release trays

What's in the box:

  • OWC ThunderBay 8 96TB (8x 12TB) 8-Bay Thunderbolt 3 RAID 5 HDD Storage Solution
  • Thunderbolt 3 Cable
  • External Power Cable
  • 2x Keys for Front Panel Lock
  • SoftRAID XT Software
  • Quick Start Guide
  • OWC 3 Year Limited Warranty
