This item is no longer available.
Review Summary
2022-07-25T09:40:09
The audio jack is too noisy to be usable. I can't get working video from the mini-displayport output (via two different mini-dp to hdmi adapters that have worked fine in the past).
Dan C.
2020-08-05T13:39:20
I read several negative reviews on this hub most IMO are related to using improper cables. This hub is a must with new MacBook Pro 16. If you have a mix of old and new technology this enables communication. I got this unit a couple of weeks ago and it worked flawlessly out of the box.
GARY L.
2019-07-11T08:40:18
This has worked without issue from the moment I plugged it in. What else can you expect?
SCHOOL P.
2019-06-18T08:45:50
It work great, just what I needed
Ken B.
2018-12-14T13:15:08
It's not clear to me why most all the reviews here are 5 star - the main reason I bought this to replace my OWC thunderbolt 2 dock was for the mini display port - save your money - to confirm bunches of reviews at other sites, the mini display port doesn't work properly - apparently even for 5K displays, letalone my old Apple Cinema Display. I'll keep the device because I can't be bothered to package/return but suggest looking elsewhere. NOTE TO REVIEWER: if this review doesn't get posted I will make it clear at other websites that Adorama does not post negative reviews. If I had seen the other reviews, I would not have purchased.
dr g.
2018-11-11T00:20:09
Really need the extension for the thunderbolt 3 to connect with external hardware, speakers, secondary display printer and scanner. It dose all the jobs that I need.
XIN S.
2018-06-15T05:39:31
Very functional
Marco S.
2018-05-21T13:07:18
I have found the Dock to be useful for many ports of entry for devices, especially because it is the only Dock on the market with a Firewire port. However, there are times when the computer iMac pro with High Sierra) and Thunderbolt 3 Dock do not speak to each other completely. This requires some technical adjustments and restarting. This slight instability is unfortunate and causes me to withhold some stars in their rating.
SCOTT F.
2018-02-01T09:23:53
Having the extra ports accessible, yet also unobtrusive, is a welcome addition to my work area. I'm happy with dock and its performance.
CHRISTOPHER F.
2018-01-15T16:16:24
I just got a new 2017 Macbook Pro and bought this to hook up my peripherals including 2 external monitors. One hooked up via displayport and the other via thunderbolt 3. The one via displayport does not give full resolution. Otherwise, I have no complaints.
STANLEY S.
2018-01-12T15:27:54
Good: 1. Helpful in my case to have an old Firewire 800, for importing Digital Video, even through outdated, and also 2. The SD card slot, for downloading photos, I really needed 3. I look forward to rigging up the Digital audio port to my receiver at some point and or ethernet port at some point. 4. Just lots of options, and I like the form factor and the general arrangement of ports. Bad: 5. The only other thing would be to have a third Thunderbolt 3 (USB C) port, just for long power cord on the front panel. 6. I haven't got to downloading drivers, though apparently it needs a few, which is not good hardware design, in my opinion. Everything should work without separate drivers. 7. And I think it is really quite a bit too much money for this little box, but it had what I needed and not too much extra. In a year, I'm sure it will be available for $, which is as much as it should cost.
Ragan M.
2018-01-10T10:41:50
it's a great units...the only downside is that it does not have enought usb c port for the price....I wish it would have at least 4 or 6 port... the pirce is a bit to high too..
KHAM Y.
2017-10-26T08:46:45
The only complaint I have about this device is if you have a MacBook Pro that has Windows 10 and OSX on it, you have to restart the MacBook Pro after each disconnect from the OWC Dock in order to get the mouse to work in Windows again. Not a huge issue but definitely an annoyance. Outside of that it's a great product.
Miles P.
2017-09-26T13:29:52
I like the fit and finish of this dock. The SD card slot and USB port on the front work well for my setup. Everything else is plugged into the back, keeping all of the cord clutter out of the way. Overall, it works very well to add a bunch of peripherals to a MacBook Pro 13". It has a wide variety of ports. I have no need for the Firewire, ethernet and optical audio ports, so those end up being wasted opportunities for my setup (but I know they are helpful for other users). I would have preferred another USB port instead of some of these three. I would have liked a USB-C port (or another Thunderbolt 3 port) in place of these ports as well. There's 2 thunderbolt 3 ports, but one of them is used to connect the dock to the computer. I'm using the other one to connect a monitor using a DisplayPort to USB-C cable. I wish the miniDisplayPort was a Thunderbolt 2 port. It works well for running a monitor, but doesn't work with an external storage device that uses Thunderbolt 2 (same shape plug, but not the same interface). If it was a Thunderbolt 2 port, I think I would have been able to plug the monitor into the extra port on the storage device and then plug the storage device into this dock. Bottom line, it works very well and looks great with my setup. I just wish the port configuration was a little different … but they'll never please everybody in terms of this.
LAURA G.
2017-09-25T22:52:47
I recently had my old mac pro 2009 crash out on me, and replaced it with a 2017 macbook pro. Needed a solution to connect my monitors and such, and this is it! Hooked up to a 4k monitor and 1080p second screen with no issues. Plug one usb c and your good to go!
Brian B.
2017-09-19T11:39:22
Excellent product with my new MacBook Pro 15" with touch bar. I have my cat5 cable plugged in from my att router and still get 865 mbps of download speeds and 789 Mbps of upload speeds without any drops of quality issues with 4K videos and games. This is the best hub I have purchased so far.
Montreal D.
2017-09-13T11:36:09
Two purchased for co-workers with MacBook Pro. Keeps add-on devises together. Great tool. JO
James H.
2017-09-12T15:00:50
Works great
PAUL C.
2017-09-06T13:36:49
This was a disappointment after all the wait for it to finally be released. I don't know if the lower charge wattage caused my issue or what, but I was not able to get usb ports and audio port to work without a lot of troubleshooting and a reboot. I'm using a 2016 15" MBP and was looking for a single cable look for the desk and I just couldn't get this to work. I worked with OWC to try and figure it out as well and their solution was to plug in the manufactures power adapter and just use the TB3 cable for data and not power as well. I didn't want to mess with reboots and drivers (which I did install) and to have the ports disappear after sleeping or unplugging for a bit so I returned this unit.
Steve L.
2017-08-31T13:05:19
Very convenient! Sit my macbook down and 1 USB-C cable to plug in and I'm in desktop mode. Makes for a very clean setup. Took 1 star away just because I feel that it's overpriced :-/
Jordon K.
2017-08-31T08:48:12
Has oodles of extra ports and includes charging. Would be nice to have software included to be able to unmount any disks with one click.
Alvin P.
2017-08-31T04:43:56
It took forever to ship, but the product was worth the wait. I went from hooking up a USB hub (with adapter), thunderbolt 2 display (with adapter) and power cable every morning to a single thunderbolt 3 cable. Haven't experience a single dropped connection, which is an improvement from my prior workflow when USB devices would suddenly become unresponsive.
Scott B.
2017-08-30T14:25:43
4K Dell monitor will only work @60Hz refresh rate when connected to the OWC Thunderbolt 3 dock via DP monitor port to USBC cable connected to Thunderbolt 3 port on the dock. I was able to get the monitor to also work @30Hz refresh rate when connected via HDMI port on monitor to mini DP port on the dock. Great customer service from Adorama.
Trevor L.
2017-08-30T10:43:26
Really convenient, i have 2 thunderbolt monitors and my headphones plugged into this at my office, i used to have to carry my charger around and plug it in when i get to work, then also plug in the monitors, the charger and my headphones. Now i carry my charger only for use when not at the office, and i have a single thunder bolt cable plugged in that connects everything and charges my laptop. Totally worth it, and worth the wait too
Pieter T.
2017-08-06T09:10:22
VERY EASY TO SETUP, AND NECESSARY WITH THE NEW MACBOOK PROS AS IS MUCH EASIER TO CONNECT YOUR DEVICES AND MONITORS. A LITTLE PRICEY BUT WELL WORTH IT.
Robert M.
2017-07-26T08:49:19
Waited ages for this to finally ship and I'm glad I did. Really great hub for connecting everything. plus it charges the laptop. No issues so far
Robert M.
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
iMac Pro (27" Late 2017)
iMac with Retina 5K display (27" Mid 2017)
iMac with Retina 4K display (21.5" Mid 2017)
iMac (21.5" Mid 2017)
MacBook Pro (15" Touch Mid 2018)
MacBook Pro (13" Touch Mid 2018)
MacBook Pro (15" Touch Mid 2017)
MacBook Pro (13" Touch Mid 2017)
MacBook Pro (13" Retina display Mid 2017)
MacBook Pro (15" Touch Late 2016)
MacBook Pro (13" Touch Late 2016)
MacBook Pro (13" Retina display Late 2016)
PC Compatible
OS:
macOS 10.12 or later
Windows 10 or later
Driver:
High-power USB support is required for compatibility with the Apple SuperDrive and Apple USB keyboard and is required to enable high-speed charging for Apple iPads, iPhones and other higher-power capable devices. To enable high-power USB support, an easy software update is required, including restart following this installation. Driver for macOS
Any Thunderbolt 3 equipped computer
Compatible with bootable USB devices in macOS
Thunderbolt 3: Intel DSL6540
USB Type-A: Fresco Logic FL1100EX (x2)
USB Type-C: ASMedia ASM1142
Ethernet: Intel i210
S/PDIF Audio: C Media CM6533
Headphone / Mic: C Media CM6533
SD 4.0: Genesys Logic GL3227
Mini DisplayPort DP++: Parade PS181
(1) Thunderbolt 3 port (dedicated power delivery port)
(1) Thunderbolt 3 port (for downstream devices)
(1) mini DisplayPort 1.2 (supports DP++)
(4) USB 3.1 Gen 1 Type-A ports (rear) - 1 compliant with Battery Charging 1.2 spec
(1) USB 3.1 Gen 1 Type-A port (front) - compliant with Battery Charging 1.2 spec
(1) USB 3.1 Gen 2 Type-C port (front) - power delivery 5V up to 3A
(1) Gigabit Ethernet port
(1) S/PDIF digital audio port (output only)
(1) SD 4.0 media card reader (front)
(1) Micro SD 4.0 media card reader (front)
(1) Hybrid 3.5mm headphone / mic jack
SD, SDHC and SDXC cards up to 2TB
UHS-II speeds up to 312 MByte/s (HD312)
Supports one 5K display at 60Hz or two 4K via Thunderbolt 3 port and Mini DisplayPort
Dual displays require a native Thunderbolt 3 display or the appropriate Thunderbolt 3 adapter. Dual 4K setups will run at different refresh rates depending on which OS and connection types are being utilized
Can power / charge TB3 laptops up to 85W
External UL-listed universal auto-switching power supply
AC Input: 100 - 240V, 50/60Hz
DC Output: 20V, 9A
Adapter plugs for international use sold separately
0 to 40 deg. C (32 to 104 deg. F)
-20 to 70 deg. C (-4 to 158 deg. F)
25 x 230 x 89mm (0.98 x 9.06 x 3.50")
522g (18.41 oz)
810586030533
Great hub from MacBook Pro 2016
By Robert M.
Waited ages for this to finally ship and I'm glad I did. Really great hub for connecting everything. plus it charges the laptop. No issues so far
Great Hub
By GARY L.
I read several negative reviews on this hub most IMO are related to using improper cables. This hub is a must with new MacBook Pro 16. If you have a mix of old and new technology this enables communication. I got this unit a couple of weeks ago and it worked flawlessly out of the box.

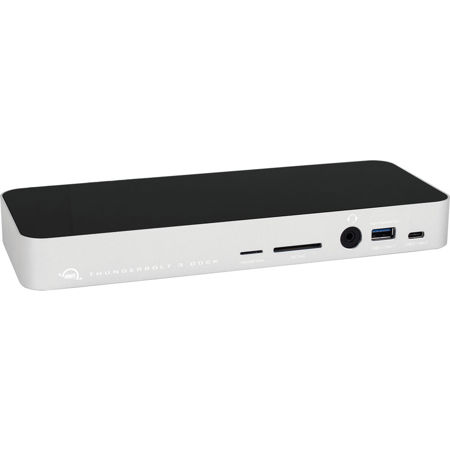

One Cable. Connectivity for Your World
Through a single cable the OWC Thunderbolt 3 Dock brings an unprecedented combination of ports, convenience and power to your Thunderbolt 3 equipped Windows PC or Mac. Bring functionality back to your notebook. Quickly access all of the displays and peripherals at your desk while minimizing desk clutter. Charge your computer and all of your mobile devices simultaneously. Connect and make any shared workspace feel like home. Welcome to your new world of connectivity.
Connect. Work. Disconnect. Go
The days of only working at your desk are gone. We're always on the move bouncing between our desks, meetings and couches - often in a hurry. With a single connection to your notebook computer, the OWC Thunderbolt 3 Dock makes coming back to your desk to work and leaving your desk to run to a meeting, a much quicker endeavor.
The right ports, right where you need them
Our engineers evaluated thousands of possibilities in discovering the optimal port configuration for nearly any environment. With its 14 ports of connectivity thoughtfully placed, the OWC Thunderbolt 3 Dock delivers convenience while keeping desktops clutter-free. The docking station's front is designed for the easy connection of your portable devices, headphones and media cards, while the rear features a multitude of ports for your static devices so cables stay out of sight.
Front-facing
(1) USB-C (USB 3.1 Gen 2) port
(1) USB-A (USB 3.1 Gen 1) port
(1) SD card reader slot
(1) microSD card reader slot
(1) Combo in/out audio jack
Rear-facing
(2) Thunderbolt 3 (USB-C) ports
(1) Mini DisplayPort 1.2
(4) USB-A (USB 3.1 Gen 1) ports
(1) Gigabit Ethernet
(1) S/PDIF digital audio output jack
Power to the ports
Leave your power adapters in your bag! The OWC Thunderbolt 3 Dock provides 85W of power to your computer via the Thunderbolt 3 connection and has multiple high-power USB ports to charge your mobile devices. The days of searching for your power adapter are officially over.
Thoughtful design - inside and out
Carefully chosen ports and functionality bring a new world of possibilities to your desktop, but we've also worked to ensure the OWC Thunderbolt 3 Dock is built to last. A seamless design wrapped in a single piece of aluminum brings a rugged exterior to endure your day-to-day, while maintaining a stylish design that complements any workspace.
