What is the speed capacity of the Thunder Bay 4 Mini 8TB (4x 2TB) 4-Drive SSD Thunderbolt 3 RAID 5 Array?

The Thunder Bay 4 Mini is equipped with two Thunderbolt 3 ports, providing real-world speeds of up to 1556MB/s. This makes it ideal for handling high-resolution audio, photo, and video formats, as well as comprehensive personal and business backups.

What is the drive flexibility of the Thunder Bay 4 Mini?

The Thunder Bay 4 Mini offers a high level of drive flexibility with four hard drive populated bays. You can operate the drives independently or combine them as a RAID using the included OWC SoftRAID XT setup and management software.

What creative platforms can the Thunder Bay 4 Mini expand production capabilities in?

The Thunder Bay 4 Mini is ideal for expanding production capabilities in industry-leading creative platforms such as Final Cut X, Avid Pro Tools, Apple Pro Logic, and Adobe Lightroom.

How easy is it to install or swap drives in the Thunder Bay 4 Mini?

The Thunder Bay 4 Mini is designed for easy installation or swapping of drives. Simply open the front panel security lock to access the four individual bays. Each drive mounts to a tray that slides back in and automatically plugs into a drive connector.

What is the function of the included SoftRAID XT in the Thunder Bay 4 Mini?

The included SoftRAID XT in the Thunder Bay 4 Mini is a highly intuitive RAID management software for macOS and Windows. It offers advanced RAID array creation, constant disk monitoring, volume validation, disk safety checks, and error prediction for optimal data protection and drive performance.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

OWC Thunder Bay 4 Mini Specifications

  • Color

    Black

  • Material

    Aluminum

  • Number of Bays

    4

  • Total Capacity

    8TB

  • Standard Mechanism

    4x 2TB OWC Mercury Extreme Pro 6G 2.5" 7mm SATA 6.0Gb/s Solid-State Drive

  • Boot Support

    Independent volumes bootable in macOS.

  • Drive Interface

    SATA

  • RAID Capable

    Yes

  • Default RAID Level

    RAID 4

  • RAID Levels Supported

    RAID 0
    RAID 1
    RAID 4
    RAID 5
    RAID 10
    JBOD

  • RAID Features

    Software RAID

  • Device Ports

    1x Host Port - Thunderbolt 3 (USB-C) up to 40 Gb/s (5000 MB/s)
    1x Thunderbolt 3 (USB-C) Port

  • Data Transfer Rate (Maximum)

    Thunderbolt 3 : Up to 40 Gb/s (or 5000 MB/s)

  • Benchmark Speed, Read (Max)

    Up to 1413 MB/s

  • Benchmark Speed, Write (Max)

    Up to 1558 MB/s

  • Chipset

    Thunderbolt: Intel JHL6540
    SATA Controller: AS Media ASM-1062

  • Host Port Requirements

    Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt)

  • Mac OS Compatibility

    macOS 10.13 High Sierra
    macOS 10.14 Mojave
    macOS 10.15 Catalina
    macOS 11.x Big Sur
    macOS 12.x Monterey
    macOS 13.x Ventura
    macOS 14.x Sonoma

  • PC OS Compatibility

    Windows 10 64-bit Edition
    Windows 11

  • Driver Required

    SoftRAID Only

  • Other Requirements

    SoftRAID XT works with macOS 10.14 or later and Windows 10 or later. SoftRAID is licensed per computer. The SoftRAID serial number will work with both Mac and Windows but can only be active on one computer at a time. Additional seats can be purchased. RAID 4/1+0 (10) are currently Mac only at this time.

  • External Power Adapter

    Yes

  • Power Supply

    External UL-listed universal auto-switching power supply

  • AC Input

    100-240V, 50-60Hz, 2.0A

  • DC Output

    +12V, 6A

  • Wattage

    72W

  • Cooling

    1x 60mm cooling fan

  • Security Slot

    Yes

  • Power/Activity LED

    Yes

  • Certifications

    CE
    FCC
    VCCI
    RCM
    BSMI

  • Ambient Temperature

    Operating: 41 Degree F to 95 Degree F (5 Degree C to 35 Degree C)
    Non-Operating: -4 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Altitude

    Operating: -1,000 to 10,000" (-304.8 to 3,048m)
    Non-Operating: -1,000 to 40,000' (-304.8 to 12,192m)

  • Humidity

    Operating: 8% to 90% non-condensing
    Non-Operating: 5% to 95% non-condensing

  • Dimensions (H x L x W)

    4.6 x 7.5 x 3.8" (11.7 x 19.1 x 9.6cm)

  • Weight

    3.19 lbs (1.4kg)

  • UPC Code

    810586032421

About OWC Thunder Bay 4 Mini

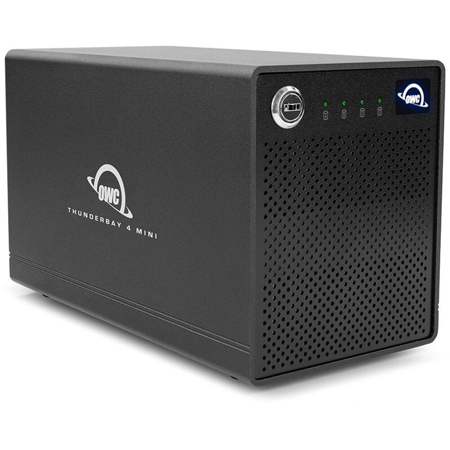

From compact design to high-performance, the Thunder Bay 4 Mini 8TB (4x 2TB) 4-Drive SSD Thunderbolt 3 RAID 5 Array, Black, offers a powerful storage solution for both personal and business needs. Despite its size, roughly equivalent to the length of a pencil, this device is packed with features that make it a standout in the realm of RAID systems.

Constructed with a rugged, heat-dissipating aluminum enclosure, the Thunder Bay 4 Mini comes equipped with two Thunderbolt 3 ports. These ports are backward compatible with Thunderbolt 2 and Thunderbolt, providing real-world speeds of up to 1556MB/s. This impressive speed capacity makes it an ideal choice for handling high-resolution audio, photo, and video formats, as well as comprehensive personal and business backups.

The Thunder Bay 4 Mini offers an unprecedented level of drive flexibility. With four hard drive populated bays, you can operate the drives independently or combine them as a RAID using the included OWC SoftRAID XT setup and management software. This feature also makes the device perfect for repurposing or maximizing the use of bare 2.5-inch HDDs and SSDs you already own.

Expand your production capabilities with industry-leading creative platforms such as Final Cut X, Avid Pro Tools, Apple Pro Logic, and Adobe Lightroom. Whether you're editing large images, managing extensive photo and audio libraries, storing drone videos, or using it as a transport drive, the Thunder Bay 4 Mini is the ultimate workflow solution.

The device's design allows for easy installation or swapping of drives in minutes. Simply open the front panel security lock to access the four individual bays. Each drive mounts to a tray that slides back in and automatically plugs into a drive connector, minimizing downtime and maximizing productivity.

The Thunder Bay 4 Mini comes with the powerful SoftRAID XT, a highly intuitive RAID management software for macOS and Windows. With over 20 years of development, SoftRAID's RAID creation and management technology offers an unbeatable combination of speed, protection, and compatibility. It provides advanced RAID array creation, constant disk monitoring, volume validation, disk safety checks, error prediction, and seamless array movement between Mac and PC with built-in OWC MacDrive technology.

Unlike hardware RAID, SoftRAID provides a level of storage performance that is unparalleled, offering increased power and control over your RAID drives and disks.

Every Thunder Bay 4 Mini hard drive solution undergoes OWC's rigorous multi-hour "burn-in" performance certification before shipping. This ensures that your Thunder Bay 4 Mini arrives operating properly and is immediately ready for demanding use, providing the reliability that creative professionals need.

OWC Thunder Bay 4 Mini Features

  • The Perfect Combination of Speed, Size, and Convenience for Permanent Access to Your Data
  • Four 2.5" drive bays
  • Up to 1558MB/s peak performance (RAID 0)
  • Daisy-chain up to five additional Thunderbolt devices
  • Includes SoftRAID: robust software for creating, monitoring, and managing advanced RAID sets
  • Thunderbolt certified for Mac and Windows

Key Features

  • Compact design with high-performance 8TB (4x 2TB) 4-Drive SSD Thunderbolt 3 RAID 5 Array
  • Equipped with two Thunderbolt 3 ports for real-world speeds of up to 1556MB/s

What's in the box:

  • OWC / Other World Computing Thunder Bay 4 Mini 8TB (4x 2TB) 4-Drive SSD Thunderbolt 3 RAID 5 Array (
  • 28" Thunderbolt Cable
  • External Power Supply
  • Power Cable
  • 2x Security Keys
  • OWC SoftRAID XT Software Bundle
  • User Manual
  • OWC / Other World Computing 3 Year Limited Warranty
