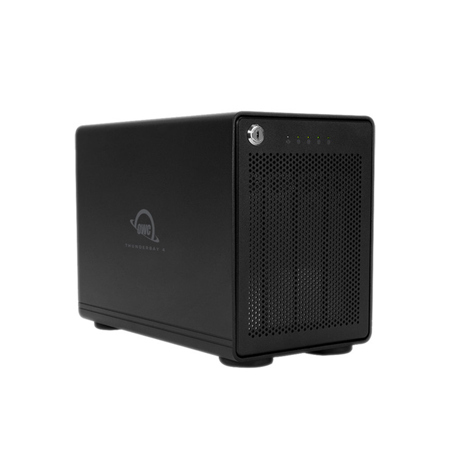

OWC ThunderBay 4 Thunderbolt 3 RAID Enterprise Drive External Storage Solution 64TB

SKU: OWCTB3SRE64S MFR: OWCTB3SRE64.0S
Earn VIP Reward Points

Key Features

  • Enhanced Thunderbolt 3 interface for superior speed and performance
  • Massive storage capacity of up to 80TB for extensive data needs
  • Dual Thunderbolt 3 ports with DisplayPort 1.2 for versatile connectivity
  • Supports both 3.5-inch and 2.5-inch drives without adapters
  • Ultra-quiet, heat-dissipating aluminum chassis for efficient cooling
  • Includes SoftRAID for easy RAID volume creation and management
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$279.00

2 Year

$459.00

3 Year

$749.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

OWC ThunderBay 4 Thunderbolt 3 RAID Enterprise Drive External Storage Solution Specifications

  • Color

    Black

  • Housing Material

    Aluminum

  • Number of Bays

    4

  • Available Capacities

    32TB, 56TB, 80TB, 64TB

  • Total Solution Cache Size

    32TB: 1024 MB
    56TB & 80TB: 2048 MB

  • Mechanisms Supported

    32TB: 4x 8.0TB Toshiba N300 Series 7,200RPM Enterprise Class NAS Hard Disk Drive with 256 MB cache
    56TB: 4x 14.0TB Toshiba MG09ACA Series 7,200RPM Enterprise Capacity Hard Disk Drive with 512 MB cache
    80TB: 4x 20.0TB Toshiba MG10 Series 7,200RPM Enterprise Capacity Hard Disk Drive with 512 MB cache

  • Plug and Play

    Yes

  • Hot Swap Support

    Yes

  • Rotational Speed

    7,200RPM

  • Drive Interface

    SATA 6.0 Gb/s

  • RAID Capable

    Yes

  • Default RAID Level

    RAID 5

  • RAID Levels Supported

    JBOD
    RAID 0
    RAID 1
    RAID 4
    RAID 5
    RAID 10

  • RAID Features

    Software RAID

  • Device Ports

    1x Host Port - Thunderbolt 3 (USB-C) up to 40 Gb/s (5000 MB/s)
    1x Thunderbolt 3 (USB-C) Port
    1x DisplayPort Port

  • Data Transfer Rate

    Maximum: Thunderbolt 3 : Up to 40 Gb/s (or 5000 MB/s)

  • Benchmark Speed, Read (Max)

    32TB: Up to 1083 MB/s
    56TB: Up to 1161 MB/s
    80TB: Up to 1167 MB/s
    64TB: Up to 1127 MB/s

  • Benchmark Speed, Write (Max)

    32TB: Up to 1164 MB/s
    56TB: Up to 1184 MB/s
    80TB: Up to 1060 MB/s
    64TB: Up to 1122 MB/s

  • Chipset

    SATA Controller: 2x ASM1062
    Thunderbolt 3: 1x Intel DSL6540

  • Contact Start Stops

    600000

  • Host Port Requirements

    Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt)

  • Mac OS Compatibility

    macOS 10.12 Sierra
    macOS 10.13 High Sierra
    macOS 10.14 Mojave
    macOS 10.15 Catalina
    macOS 11.x Big Sur
    macOS 12.x Monterey
    macOS 13.x Ventura

  • PC OS Compatibility

    Windows 10 64-bit Edition
    Windows 11

  • Other Requirements

    SoftRAID XT works with macOS 10.12 or later and Windows 10 or later. SoftRAID is licensed per computer. The SoftRAID serial number will work with both Mac and Windows but can only be active on one computer at a time. Additional seats can be purchased. RAID 4/1+0 (10) are currently Mac only at this time.

  • External Power Adapter

    No

  • Power Supply

    Internal UL-listed universal auto-switching power supply

  • AC Input

    100-230V

  • Replacement Adapter Part Number

    OWCMNEPWR3PUS (sold separately)

  • Cooling

    1x 92mm Temperature-controlled cooling fan

  • Security Slot

    Yes

  • Power Button

    Yes

  • Power/Activity LED

    Yes

  • Reach Certification

    Yes

  • Ambient Temperature

    Operating: 50 Degree F to 95 Degree F (10 Degree C to 35 Degree C)
    Non-Operating: -40 Degree F to 149 Degree F (-40 Degree C to 65 Degree C)

  • Altitude

    Operating: -1,000 to 10,000' (-304.8 to 3,048.0m)
    Non-Operating: -1,000 to 40,000' (-304.8 to 12,192.0m)

  • Humidity

    Operating: 8% to 90% non-condensing
    Non-Operating: 5% to 95% non-condensing

  • Dimensions (H x L x W)

    7 x 9.6 x 5.3" (17.7 x 24.5 x 13.5cm)

  • Weight

    8.60 lbs (3.9kg)

  • UPC Code

    810586034807

16 Accessories for OWC / Other World Computing ThunderBay 4 4-Bay Thunderbolt 3 RAID Enterprise Drive External Storage Solution

  • All Accessories (16)
  • Drives & Storage (6)
  • SSD Drives (2)
  • Cables & Adapters (4)
  • Hubs (2)
  • Power Supply & Accessories (2)

About OWC ThunderBay 4 Thunderbolt 3 RAID Enterprise Drive External Storage Solution

What makes the OWC ThunderBay 4 4-Bay Thunderbolt 3 RAID Enterprise Drive External Storage Solution a standout choice for professionals is its enhanced internals, superior performance, and unmatched flexibility. As OWC's flagship RAID powerhouse, it has been meticulously redesigned to leverage the exceptional speed and power of the Thunderbolt 3 interface. With a massive storage capacity of up to 80TB, this external storage solution is now faster, cooler, and quieter than ever before.

Featuring dual Thunderbolt 3 ports and a DisplayPort 1.2, the ThunderBay 4 maximizes the potential of four 3.5-inch or four 2.5-inch drives without the need for adapters. Its ultra-quiet, heat-dissipating aluminum chassis ensures optimal performance while maintaining a sleek and professional appearance. Whether you choose the RAID-ready configuration or opt for the RAID 5 setup, you can edit, experiment, create, and design with ease. This storage solution is perfect for enhancing your 2K, 4K, and audio production workflows, allowing you to edit, view, stream, and produce more efficiently.

The ThunderBay 4 significantly boosts editing capabilities in video applications such as Apple Final Cut Pro, Adobe Premiere, and Avid Media Composer. It also empowers greater audio production capabilities in software like Avid Pro Tools and Logic Pro X. For photographers, it facilitates editing large photos in Adobe Photoshop and browsing extensive photo libraries in Apple Aperture and Adobe Lightroom. With a RAID 5 array, you benefit from data redundancy alongside outstanding performance, ensuring your projects are secure and swiftly completed.

The OWC ThunderBay 4 is designed for seamless integration with Thunderbolt and Thunderbolt 2 systems, thanks to its Thunderbolt 3 backward compatibility. By adding a Thunderbolt 3 (USB-C) to Thunderbolt 2 adapter, you can easily incorporate this storage solution into any workflow, regardless of the interface or speed required. Additionally, the Thunderbolt ports support daisy-chaining of up to six devices per port, expanding your laptop or desktop's peripheral capabilities.

Included with the ThunderBay 4 is SoftRAID, a comprehensive drive management tool that simplifies the creation of RAID volumes. With SoftRAID's intuitive setup, you can maximize disk space, achieve the fastest access speeds, and protect against disk failure with plug-and-play simplicity. OWC enclosures come with the XT version of SoftRAID, which is fully featured and designed exclusively for OWC solutions.

For professionals engaged in finishing and mastering, creating proxies, or working with cutting-edge VFX and AR, the OWC ThunderBay 4 offers dependable technology that keeps pace with demanding workflows. Delivering processing speeds up to 2800MB/s and supporting all five levels of RAID, this storage solution provides the freedom to daisy-chain and hot-swap, ensuring your workflow and storage needs are comprehensively met.

OWC ThunderBay 4 Thunderbolt 3 RAID Enterprise Drive External Storage Solution Features

  • Four hot-swappable universal drive bays: mix or match 2.5-inch and 3.5-inch HDDs and SSDs (no adapter needed)
  • Versatile: two Thunderbolt ports so you can daisy chain up to five additional Thunderbolt devices
  • View more: connect up to a 4K display via DisplayPort 1.2
  • Easy: offers same functionality and performance with Thunderbolt 3 & 4 machines (Thunderbolt 2/Thunderbolt backward compatible)
  • Reliable: heat dissipating aluminum chassis keeps things quietly cool
  • Convenient: built-in power supply eliminates hassle of bulky power brick
  • Complete: Includes SoftRAID XT: robust software for creating, monitoring, and managing advanced RAID sets

Product Documents

User Manual

Key Features

  • Enhanced Thunderbolt 3 interface for superior speed and performance
  • Massive storage capacity of up to 80TB for extensive data needs
  • Dual Thunderbolt 3 ports with DisplayPort 1.2 for versatile connectivity
  • Supports both 3.5-inch and 2.5-inch drives without adapters
  • Ultra-quiet, heat-dissipating aluminum chassis for efficient cooling
  • Includes SoftRAID for easy RAID volume creation and management

What's in the box:

  • OWC ThunderBay 4 4-Bay Thunderbolt 3 RAID Enterprise Drive External Storage Solution
  • 28" Thunderbolt Cable
  • US Power Cable
  • 2x Security Keys for Front Panel Lock
  • SoftRAID License
  • Quick Start Guide
  • OWC / Other World Computing 5 Year Limited Warranty
