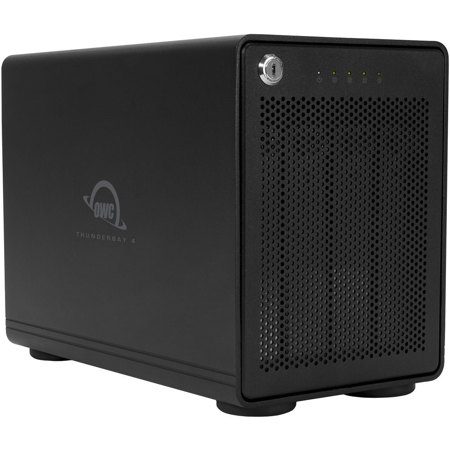

OWC / Other World Computing ThunderBay 4 Four-Bay Storage Enclosure with Dual Thunderbolt 3 Ports, RAID-5 Ready with Cable

SKU: OWCTB3SRKIT0 MFR: OWCTB3SRKIT0GB
Earn VIP Reward Points

Key Features

  • Experience blazing-fast data transfers with speeds up to 40 Gb/s using Thunderbolt 3 ports.
  • Safeguard your important files with flexible RAID configurations (0, 1, 4, 5, 10) via SoftRAID.
  • The ThunderBay 4 enclosure supports both 2.5" and 3.5" SATA drives for ultimate versatility.
  • Easily expand your storage capacity with four bays, perfect for large media libraries and backups.
  • This durable hard drive enclosure features a Kensington lock slot for added physical security.
  • Enjoy seamless plug-and-play compatibility with macOS and Windows systems for effortless setup.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2019-01-31T05:59:40

Rated 4 out of 5

Like the Drive, but a bit Noisy

This is my first RAID drive. Everything seems to work great, the software it comes with is great, given this is my first RAID. Now maybe I am just sensitive to noise, but with this drive sitting right under my desk next to me, I only run it when I have to. This thing puts out some noise, regardless of what the write up says about it, I think its noisy. I tried putting it in a large cabinet, but after an hour or so of running I think it was getting to warm and took it out. I would think there are probably some actual covers out there that would ventilate enough to safely keep this thing quieter? I am sure if I took the time to get it setup far away from my chair it would be better, but given the room I have, that would be a very large task to do. Depending on your setup and where you can put it, this may completely not be an issue for you? Well just my two cents worth on my very first RAID. Cheers

Chad D.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

OWC / Other World Computing ThunderBay 4 RAID 5 Specifications

  • Software Requirements

    macOS 10.12 or later
    Windows 10 or later

  • Hardware Requirements

    Mac or PC featuring Thunderbolt 3 interface
    Mac or PC featuring Thunderbolt or Thunderbolt 2 interface

  • Interface (Chipset)

    (2) Thunderbolt 3 (Intel DSL6540)
    (1) DisplayPort

  • Max Transfer Rate

    Thunderbolt 3: 40 Gb/s (5000 MB/s)

  • JBOD / RAID Support

    JBOD: Utilize each of the four drives independently
    RAID: Use the included SoftRAID software RAID to setup the ThunderBay 4 for RAID 0, 1, 4, 5, and 10

  • Drives Supported

    (4) 3.5" SATA 6Gb/s drives or (4) 2.5" SATA 6Gb/s drives
    SATA revision 3.0 (6Gb/s) compliant
    Compatible with SATA revisions 2.0 (3Gb/s) and 1.0 (1.5Gb/s)

  • Kensington Lock Slot

    Yes

  • LED

    Yes (Power and disk activity)

  • Plug and Play

    Yes

  • Power supply

    AC input: 100 - 230V

  • Operating Temperature

    10 to 35 deg. C (50 to 95 deg. F)

  • Non-Operating Temperature

    -40 to 65 deg. C (-40 to 149 deg. F)

  • Dimensions (HxWxL)

    7 x 5.3 x 9.6" (17.78 x 13.46 x 24.38cm)

  • Weight

    3.9kg (8.60 lbs)

  • UPC Code

    812437029666

About OWC / Other World Computing ThunderBay 4 RAID 5

Because speed and reliability are paramount in today's digital world, the ThunderBay 4 Four-Bay Storage Enclosure with Dual Thunderbolt 3 Ports, RAID-5 Ready with Cable, is engineered to deliver unparalleled performance. This high-performance storage solution, a flagship product from OWC, is designed to meet the demands of professionals who work with large files and data sets.

The ThunderBay 4 is equipped with the power of Thunderbolt 3, offering an impressive sustained performance of up to 1527MB/s. This makes it an ideal external storage solution for tasks that require high bandwidth, such as multi-stream compressed 4K video editing and other data-intensive operations.

This storage enclosure is natively compatible with both 2.5" and 3.5" drives, eliminating the need for adapters. It also features a dedicated DisplayPort 1.2 port, allowing you to connect the display of your choice, including 4K displays.

The ThunderBay 4 is user-configurable in RAID 0, 1, 4, 5 & 1+0, offering you the flexibility to choose the optimal balance of performance and data redundancy. With its RAID 5 configuration, you can experience up to 35% faster performance and exponentially faster rebuild times compared to similar hardware RAID arrays.

Designed with an ultra-quiet, heat-dissipating aluminum chassis, the ThunderBay 4 ensures your drives run cool and reliably. It also features an open "flow-thru" vented design with an oversized 92mm, low-turbulence, noise-quieting fan. The drive isolating design reduces sonic resonance, further enhanced by rugged, vibration-absorbing, non-skid feet.

The ThunderBay 4 also supports daisy-chaining up to six units for massive storage capabilities and increased performance. Alternatively, you can connect multiple ThunderBay 4s to multiple Thunderbolt 3 ports to achieve exponential speed capabilities.

Each ThunderBay 4 undergoes OWC's rigorous multi-hour drive "burn-in" performance certification procedure prior to shipping, ensuring it arrives operating properly and ready for demanding use. It also comes with a 2.0-meter certified OWC Thunderbolt 3 cable, with other lengths available separately.

In summary, the ThunderBay 4 Four-Bay Storage Enclosure with Dual Thunderbolt 3 Ports, RAID-5 Ready with Cable, is a high-performance, reliable, and flexible storage solution designed to meet the needs of professionals working with large files and data sets.

OWC / Other World Computing ThunderBay 4 RAID 5 Features

  • High-speed Thunderbolt 3 connectivity with up to 1527MB/s sustained performance
  • RAID-5 ready enclosure with customizable configurations for data redundancy
  • Compatible with both 2.5" and 3.5" drives, no adapters required
  • Durable aluminum chassis with advanced cooling technology for reliable operation
  • Supports daisy-chaining of up to six units for expansive storage solutions
  • Includes certified OWC Thunderbolt 3 cable for immediate setup and use

Key Features

  • Experience blazing-fast data transfers with speeds up to 40 Gb/s using Thunderbolt 3 ports.
  • Safeguard your important files with flexible RAID configurations (0, 1, 4, 5, 10) via SoftRAID.
  • The ThunderBay 4 enclosure supports both 2.5" and 3.5" SATA drives for ultimate versatility.
  • Easily expand your storage capacity with four bays, perfect for large media libraries and backups.
  • This durable hard drive enclosure features a Kensington lock slot for added physical security.
  • Enjoy seamless plug-and-play compatibility with macOS and Windows systems for effortless setup.

What's in the box:

  • OWC ThunderBay 4 Four-Bay Storage Enclosure
  • 2.0m Thunderbolt 3 Cable
  • External Power Cable
  • 2x Security Keys
  • ThunderBay 4 Quick Start Guide
  • SoftRAID XT Lite
  • SoftRAID XT Lite Quick Start Guide
  • OWC 1 Year Limited Warranty
