Review Summary
2019-01-31T05:59:40
This is my first RAID drive. Everything seems to work great, the software it comes with is great, given this is my first RAID. Now maybe I am just sensitive to noise, but with this drive sitting right under my desk next to me, I only run it when I have to. This thing puts out some noise, regardless of what the write up says about it, I think its noisy. I tried putting it in a large cabinet, but after an hour or so of running I think it was getting to warm and took it out. I would think there are probably some actual covers out there that would ventilate enough to safely keep this thing quieter? I am sure if I took the time to get it setup far away from my chair it would be better, but given the room I have, that would be a very large task to do. Depending on your setup and where you can put it, this may completely not be an issue for you? Well just my two cents worth on my very first RAID. Cheers
Chad D.
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
macOS 10.12 or later
Windows 10 or later
Mac or PC featuring Thunderbolt 3 interface
Mac or PC featuring Thunderbolt or Thunderbolt 2 interface
(2) Thunderbolt 3 (Intel DSL6540)
(1) DisplayPort
Thunderbolt 3: 40 Gb/s (5000 MB/s)
JBOD: Utilize each of the four drives independently
RAID: Use the included SoftRAID software RAID to setup the ThunderBay 4 for RAID 0, 1, 4, 5, and 10
RAID 5
4x 4.0TB HGST Deskstar NAS Hard Disk Drives
Read: Up to 1527MB/s
Yes
Yes (Power and disk activity)
Yes
AC input: 100 - 230V
10 to 35 deg. C (50 to 95 deg. F)
-40 to 65 deg. C (-40 to 149 deg. F)
7 x 5.3 x 9.6" (17.78 x 13.46 x 24.38cm)
5.7kg (12.57 lbs)
812437029703

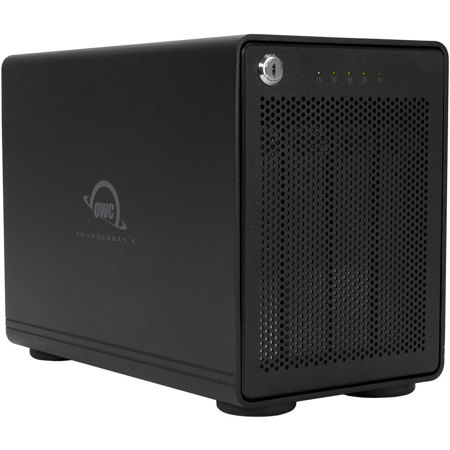

If you're seeking a robust and high-capacity external storage solution, the ThunderBay 4 16TB by OWC stands out as a formidable choice. This 4-drive HDD storage powerhouse is engineered for power users and professionals who demand high-performance, reliability, and spacious storage capacity. With a preconfigured RAID 5 setup, the ThunderBay 4 offers both speed and security, ensuring your data is protected and accessible when you need it.
The ThunderBay 4 is equipped with dual Thunderbolt 3 ports, delivering astonishing data transfer speeds of up to 1527MB/s sustained performance. This makes it an ideal choice for tasks that require rapid data access and transfer, such as editing multi-stream compressed 4K video, high-resolution photography, and complex design projects.
The newly designed chassis of the ThunderBay 4 not only supports both 2.5" and 3.5" drives without the need for adapters but also enhances the device's cooling and noise reduction capabilities. The ultra-quiet, heat-dissipating aluminum chassis ensures that your drives operate at optimal temperatures while minimizing sound, making it a discreet addition to any workspace.
Configurability is at the heart of the ThunderBay 4, allowing users to tailor the device to their specific needs. Whether you require maximum speed with RAID 0, data redundancy with RAID 1, or a combination of both with RAID 1+0, this storage solution adapts to your workflow. The intelligent drive monitoring system provides desktop and email notifications to keep you informed about the health and status of your drives.
The ThunderBay 4's performance is further enhanced by SoftRAID, OWC's cutting-edge software RAID platform. This offers advanced RAID modes, superior performance, real-time disk monitoring, and rapid rebuild capabilities that hardware RAID cannot match. Experience up to 35% faster RAID 5 performance and significantly quicker rebuild times, empowering your workflow like never before.
Each ThunderBay 4 unit undergoes OWC's rigorous multi-hour drive "burn-in" testing, ensuring that it arrives ready for intensive use. The device's cooling efficiency is a testament to OWC's time-tested enclosure cooling technology, featuring an open "flow-thru" vented design and an oversized 92mm fan that keeps drives cool under heavy operation.
For those who require even more storage, the ThunderBay 4 can be daisy-chained with up to six units, creating a colossal storage network that can handle even the most demanding storage needs. The vibration dampening design and rugged, non-skid feet ensure stability and reduce sonic resonance, maintaining the integrity of your data.
With support for DisplayPort 1.2, you can connect a high-resolution display to enhance your productivity. The ThunderBay 4 also includes a certified 2.0-meter OWC Thunderbolt 3 cable, with additional lengths available to suit your setup requirements.
Backed by OWC's award-winning U.S.-based support and a limited warranty, the ThunderBay 4 16TB 4-Drive HDD Storage Solution with Dual Thunderbolt 3 Ports is more than just a storage device - it's a commitment to performance, durability, and reliability for professionals who cannot afford to compromise.
