Review Summary
2019-01-31T05:59:40
This is my first RAID drive. Everything seems to work great, the software it comes with is great, given this is my first RAID. Now maybe I am just sensitive to noise, but with this drive sitting right under my desk next to me, I only run it when I have to. This thing puts out some noise, regardless of what the write up says about it, I think its noisy. I tried putting it in a large cabinet, but after an hour or so of running I think it was getting to warm and took it out. I would think there are probably some actual covers out there that would ventilate enough to safely keep this thing quieter? I am sure if I took the time to get it setup far away from my chair it would be better, but given the room I have, that would be a very large task to do. Depending on your setup and where you can put it, this may completely not be an issue for you? Well just my two cents worth on my very first RAID. Cheers
Chad D.
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
macOS 10.12 or later
Windows 10 or later
Mac or PC featuring Thunderbolt 3 interface
Mac or PC featuring Thunderbolt or Thunderbolt 2 interface
(2) Thunderbolt 3 (Intel DSL6540)
(1) DisplayPort
Thunderbolt 3: 40 Gb/s (5000 MB/s)
JBOD: Utilize each of the four drives independently
RAID: Use the included SoftRAID software RAID to setup the ThunderBay 4 for RAID 0, 1, 4, 5, and 10
RAID 5
4x 6.0TB Toshiba MD04ACA Series Hard Disk Drives
Read: Up to 1527MB/s
Yes
Yes (Power and disk activity)
Yes
AC input: 100 - 230V
10 to 35 deg. C (50 to 95 deg. F)
-40 to 65 deg. C (-40 to 149 deg. F)
7 x 5.3 x 9.6" (17.78 x 13.46 x 24.38cm)
5.7kg (12.57 lbs)
812437029727

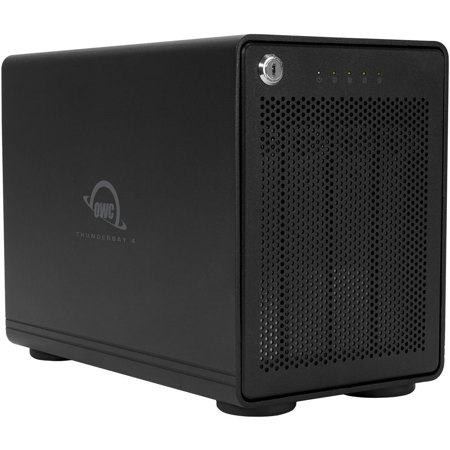

Become a master of data management with the ThunderBay 4 24TB 4-Drive HDD Storage Solution. This high-performance, durable, and reliable storage powerhouse is equipped with dual Thunderbolt 3 ports, offering an impressive sustained performance of up to 1527MB/s. It's an advanced external storage solution designed to meet the needs of demanding data-intensive operations.
The ThunderBay 4 is natively compatible with both 2.5" and 3.5" drives, eliminating the need for adapters. It's housed in an ultra-quiet, heat-dissipating aluminum chassis, ensuring your drives stay cool and perform optimally. The redesigned chassis also contributes to a quieter operation, making it a perfect fit for any workspace.
This spacious storage solution comes with a dedicated DisplayPort 1.2 port and is user-configurable in RAID 0, 1, 4, 5 & 1+0. It's pre-tested rigorously with a multi-hour burn-in to ensure it arrives operating properly and ready for demanding use. The intelligent drive monitoring system provides desktop and email notifications, keeping you updated on your drive's status.
Designed to harness the power of Thunderbolt 3, the ThunderBay 4 is an incredibly flexible solution, perfect for supporting multi-stream compressed 4K video and other bandwidth-intensive operations. You can use each drive independently or in the RAID configuration of your choice, providing the optimal balance of performance and data redundancy.
Experience the most advanced software RAID available with the ThunderBay 4 RAID 5 Edition. It offers up to 35% faster RAID 5 performance and exponentially faster rebuild times than comparable hardware RAID arrays. The ThunderBay 4's drive isolating design reduces sonic resonance, and it's aided by oversized, rugged, vibration-absorbing, non-skid feet.
With the ability to daisy-chain up to six ThunderBay 4s, you can achieve massive storage capabilities and increased performance. Alternatively, connect multiple ThunderBay 4s to multiple Thunderbolt 3 ports to achieve exponential speed capabilities. The ThunderBay 4 comes with a 2.0 meter certified OWC Thunderbolt 3 cable, ensuring you have everything you need to get started.
In conclusion, the ThunderBay 4 24TB 4-Drive HDD Storage Solution with Dual Thunderbolt 3 Ports and RAID 5 Preconfigured Solution is a reliable, spacious, and advanced storage solution designed to meet your data storage and backup needs.
