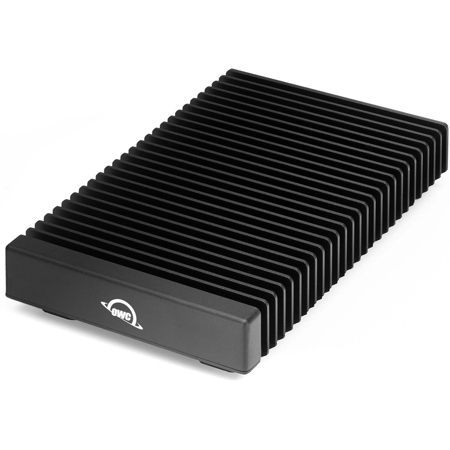

OWC / Other World Computing ThunderBlade X8 8-Bay Thunderbolt 3 RAID Array 32TB (8x4TB)

SKU: OWCTBTBL8X32 MFR: OWCTB3TBL8X32
Earn VIP Reward Points

Key Features

  • Experience blazing-fast speeds with this Thunderbolt 3 RAID array, perfect for demanding workflows.
  • Safeguard your critical data with flexible RAID configurations (0/1/4/5/10) for superior data redundancy.
  • Achieve rapid file transfers with NVMe interface, boosting your productivity with speeds up to 2949MB/s.
  • Enjoy ample storage capacity, up to 32TB, ideal for large media files and extensive project archives.
  • This portable RAID array is compatible with macOS and Windows, ensuring seamless integration.
  • Benefit from included SoftRAID XT software, offering easy RAID management and enhanced drive monitoring.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$599.00

2 Year

$949.00

3 Year

$1,499.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

OWC / Other World Computing ThunderBlade X8 8-Bay Thunderbolt 3 RAID Array Specifications

Drives
  • Available Capacities

    8 TB (8x 1TB SSD), 16TB (8x 2TB SSD), 32TB (8x 4TB SSD)

  • Initial RAID Configuration

    RAID 0

  • Interface

    NVMe

General

Jump to...
  • Number of Bays

    8xM.2 (2242)

  • Default OS Support

    macOS

  • Inputs/Outputs

    2xUSB-C Thunderbolt 3 (40 Gb/s) Input/Output

  • Compatible Drive Interface

    NVMe

  • Form Factor

    Portable

  • RAID

    RAID 0/1/4/5/10

  • Transfer Rates

    2949 MB/s (Read in RAID 0)
    2826 MB/s (Write in RAID 0)
    2565 MB/s (Read in RAID 5)
    2464 MB/s (Write in RAID 5)

  • UASP Support

    No

Software

Jump to...
  • OS Compatibility

    macOS 10.13 to 14
    Windows 11 (64-Bit Only)

Security

Jump to...
  • Encryption

    Yes

Electrical

Jump to...
  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz at 2.0 A

  • Power Source

    AC Adapter

  • PSU Wattage

    1 x 90 W

Environmental

Jump to...
  • Operating Temperature

    50 to 95 Degree F (10 to 35 Degree C)

  • Operating Humidity

    8 to 90%

  • Storage Temperature

    -40 to 149 Degree F (-40 to 65 Degree C)

  • Storage Humidity

    5 to 95%

  • Certifications

    CE, FCC, VCCI, RCM, UKCA, IC

Physical

Jump to...
  • Color

    Black

  • Material

    Aluminum

  • Status Monitoring

    LED Indicator

  • Cooling

    Yes

  • Noise Level

    0 dBA

  • Cable Length

    2.3' (0.7m)

  • Dimensions

    8.2 x 4.9 x 1.3" (20.8 x 12.4 x 3.3cm)

  • Weight

    2.4lbs (1.1kg)

  • UPC Code

    810149208898

About OWC / Other World Computing ThunderBlade X8 8-Bay Thunderbolt 3 RAID Array

ThunderBlade
The Fastest Thunderbolt Shuttle and Editing RAID SSD in the Universe

Time Saver, Life Changer
ThunderBlade is fervently revered among DITs, production companies, video editors, and creative professionals for good reason. Hailed as the fastest production drive in the universe. Legendary confidence inspiring reliability. Shuttle use ready with a compact footprint and ballistic case.

With ThunderBlade, you don't merely reduce the time you need to work. You gain precious time back for your personal life. More than anything, people want more time. ThunderBlade isn't just a drive. It's a life changer.

Created For Pros Like You
Our team is filled with creatives highly experienced in all phases of the video production world. We understand your need for more speed and capacity when it comes to making everything from backups to editing faster. ThunderBlade was purposefully built to be the fastest Thunderbolt shuttle and editing RAID SSD in the universe for:

DITs needing to offload memory cards on set at maximum transfer speeds while also having the option to choose RAID 5 reliability for peace-of-mind or production requirements.

DITs and productions needing a blazing fast, highly reliable shuttle drive that can be easily and safely shipped.

Creative professionals working with cutting edge workflows such as multicam sequences, 8K RAW video, and VFX looking for the best possible performance from an easy to transport, plug and play external storage solution.

Remote editors working with cloud-based workflows such as LucidLink which require a high performance cache drive solution to ensure flawless video editing performance.

Professional video editors desiring a seamless editing experience when working on large projects with all their files centralized for easy access.

Trust the Truth
We understand your workflow requires real-world speed you can count on. Instead of promoting eye-catching maximum theoretically possible performance numbers, we take the time-consuming step to run our storage solutions through intensive performance testing and share our test parameters in the results. By truthfully listing the speeds we observed, our commitment to the "OWC Difference" ensures your ThunderBlade will deliver the performance you require and expect.

Unlimited Workflow Possibilities
Working at your best means getting more than blazing through uncompressed high bandwidth content streams with unrivaled speed and reliability. With an extra Thunderbolt port, you have the flexibility to daisy-chain devices and place a USB-C device at the end of your chain to create unlimited possibilities.

When Reliability Is a Requirement
Using RAID 5 with most solutions means giving up precious capacity and taking a big hit on performance. Our 8 drive ThunderBlade model solves that problem by offering the most amount of useable capacity while still offering eye-popping write speeds up to 2464MB/s. Now you can streamline ingestion and backup times on set, edit ultra-high-res multi-cam sequences, and adhere to mandatory requirements (the 3-2-1 Principle) when producing content for large studios such as Netflix.

Really Cool Details
You'll never have to worry about heat throttling slowing you down because we focus on the little details that will keep you working at consistent top speed. Besides keeping ThunderBlade securely in place, the non-skid rubber feet elevate the heat dissipating aluminum housing to create a highly effective silently cool encompassing airflow.

Pre-Tested = Ready to Work
We understand having confidence in gear reliability is paramount to creative professionals. That's why every ThunderBlade undergoes our rigorous multi-hour "burn-in" performance certification prior to shipping and includes a Thunderbolt connecting cable. This ensures your ThunderBlade arrives operating properly and immediately ready for demanding use.

Combine & Conquer
While one ThunderBlade is great, two are awesome when daisy chained together for additional speed and capacity gains. Keep them running cool and fast by stacking them vertically with the OWC ThunderBlade X Spacer. This innovative, no tools required aluminum drive spacer keeps your drives secure while enhancing your conquer any challenge image.

Work with Ultimate Confidence
Active workspaces expose gear to unexpected bumps and shoves. OWC ClingOn custom cable stabilizers (available separately) screw into the OWC Dock or OWC Drive housing to reduce - if not completely eliminate - cable strain on Thunderbolt and USB-C connections so you can work with ultimate confidence even in the highest foot traffic environments.

OWC / Other World Computing ThunderBlade X8 8-Bay Thunderbolt 3 RAID Array Features

  • Incomparable: up to 2949MB/s ready-to-run, time-saving speed that has no competitor
  • Spacious: up to eight NVMe M.2 SSDs for up to 32TB
  • Includes SoftRAID XT: Robust software for creating, monitoring, and managing advanced RAID sets
  • Versatile: daisy-chain up to five additional Thunderbolt devices or connect a USB-C device or display via the second Thunderbolt port
  • Stable: non-skid rubber feet keep ThunderBlade in place while OWC ClingOn secures the included Thunderbolt connecting cable
  • Reliable: heat-dissipating fanless aluminum chassis keeps you working silently at top speed
  • Informative: confirm use status instantly via integrated LED
  • Mobile: compact footprint and custom-fit ballistic hard-shell case make this the perfect shuttle drive
  • Certified: meets Intel Thunderbolt and OWC operating certifications for assured performance and reliability

Product Documents

User Manual

Key Features

  • Experience blazing-fast speeds with this Thunderbolt 3 RAID array, perfect for demanding workflows.
  • Safeguard your critical data with flexible RAID configurations (0/1/4/5/10) for superior data redundancy.
  • Achieve rapid file transfers with NVMe interface, boosting your productivity with speeds up to 2949MB/s.
  • Enjoy ample storage capacity, up to 32TB, ideal for large media files and extensive project archives.
  • This portable RAID array is compatible with macOS and Windows, ensuring seamless integration.
  • Benefit from included SoftRAID XT software, offering easy RAID management and enhanced drive monitoring.

What's in the box:

  • OWC / Other World Computing ThunderBlade X8 8-Bay Thunderbolt 3 RAID Array
  • Thunderbolt Cable (2.3')
  • 90W External Power Supply
  • US Power Cable (3-Prong IEC C13)
  • Ballistic Hard-Shell Travel Case
  • SoftRAID XT Upgrade and Support Plan (3-Year)
  • OWC / Other World Computing 3 Year Limited Warranty
