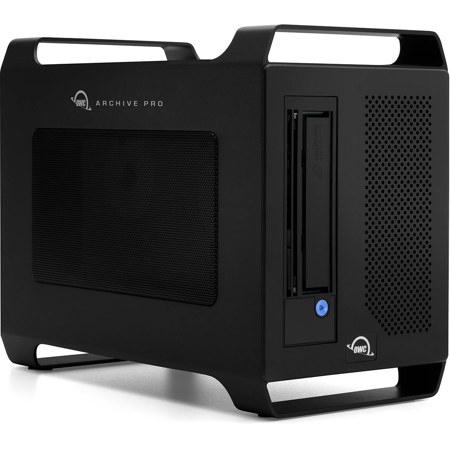

OWC / Other World Computing Archive Pro LTO-9 Thunderbolt Tape Storage Drive with 4TB Staging and Canister, Black

SKU: OWCTBLTMP904 MFR: OWCTBLTMP90N04H
Earn VIP Reward Points

Key Features

  • Utilize LTO-9 tape drive technology for reliable, long-term data archive storage.
  • Enjoy fast performance with Thunderbolt 3 connectivity, reaching speeds up to 5000MB/s.
  • Ensure data security with LTO-9's advanced encryption, protecting your valuable assets.
  • Benefit from a 4TB staging SSD for quick data transfers to LTO tape for archiving.
  • Easily set up this OWC Archive Pro with your Mac or Windows system via Thunderbolt.
  • Trust in the reliable brand of OWC for professional-grade data storage solutions.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

OWC / Other World Computing Archive Pro Specifications

  • Color

    Black

  • Material

    Aluminum

  • Drive Bays

    1 bay supporting: 2.5" SATA drives, 3.5" SATA drives, 2.5" SAS drives, 3.5" SAS drives

  • Total Capacity

    3840GB Useable Capacity
    Total Capacity: 4096GB
    256GB Allocated to real-time data redundancy and error correction

  • Drive Mechanism

    1x 4TB OWC Aura Pro IV PCIe 4.0 NVMe M.2 2280 Solid-State Drive

  • Boot Support

    No

  • LTO Mechanism

    IBM LTO Ultrium 9

  • LTO Speed (Max)

    LTO-9: Up to 300MB/s native (750MB/s compressed)

  • LTO Media Supported

    LTO-9
    LTO-8

  • LTO Media Included

    Fujifilm LTO-9 18TB data cartridge

  • LTO Cleaning Media

    Included

  • Device Ports

    1x Host Port - Thunderbolt 3 (USB-C) up to 40Gb/s (5000MB/s)
    1x Thunderbolt 3 (USB-C) Port
    1x Mini-SAS HD (12Gb/s) SFF-8644 Port
    1x DisplayPort Port

  • Power Delivery

    Thunderbolt 3 host port provides up to 85W of power to the host computer
    Thunderbolt 3 device port provides up to 15W of power to external drives and other devices

  • Display Support

    Up to one 8K display @ 60Hz,
    or one 4K display @ 120Hz,
    or one 5K display @ 60Hz,
    or two 4K displays @ 60Hz,
    or one 4K display @ 60Hz and one 4K display @ 30Hz,
    or one 4K display @ 60Hz,
    or one 4K display @ 30Hz

  • Data Transfer Rate (Maximum)

    Thunderbolt 3 : Up to 40Gb/s (or 5000MB/s)

  • Chipset / Controller

    Thunderbolt: Intel JHL7440

  • MTBF (Mean Time Between Failures)

    Varies depending on drive mechanism installed

  • Contact Start Stops

    Varies depending on drive mechanism installed

  • Host Interface Requirements

    Thunderbolt (USB-C) port

  • Mac OS Compatibility

    macOS 11.x Big Sur
    macOS 12.x Monterey
    macOS 13.x Ventura
    macOS 14.x Sonoma
    macOS 15.x Sequoia

  • PC OS Compatibility

    Windows 10 64-bit Edition
    Windows Server 2022
    Windows 11

  • Linux OS Compatibility

    Yes

  • Driver Required

    Yes
    The OWC Archive Pro LTO tape drive communicates over a SAS connection and requires a driver to enable this interface.

  • Driver Required (Contd.)

    New LTO-9 devices and media required that the media be initialized when used in a drive for the first time.

  • Other Requirements

    Archive Pro will work in Windows 10, but does not support hot plug/unplug during sleep/hibernate modes and may encounter issues.

  • External Power Adapter

    No

  • Power Supply

    Internal UL-listed universal auto-switching power supply

  • AC Input

    90-264V, 47-63Hz, 1.0A-1.8A

  • DC Output

    +12V, 16.7A

  • Wattage

    200W

  • Cooling

    1x cooling fan

  • Security Slot

    Yes

  • Power Button

    Yes

  • Power/Activity LED

    Yes

  • Certifications

    BSMI
    CE
    FCC
    RCM
    VCCI

  • Ambient Temperature

    Operating: 41 Degree F to 95 Degree F (5 Degree C to 35 Degree C)
    Non-Operating: -4 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Altitude

    Operating: -1,000 to 10,000' (-304.8 to 3,048m)
    Non-Operating: -1,000 to 40,000' (-304.8 to 12,192m)

  • Humidity

    Operating: 8% to 90% non-condensing
    Non-Operating: 5% to 95% non-condensing

  • Shock

    Operating: Varies depending on drive mechanism installed
    Non-Operating: Varies depending on drive mechanism installed

  • Noise

    Varies depending on drive mechanism installed

  • Dimensions (L x W x H)

    11.5 x 6.1 x 9.1" (29.2 x 15.5 x 23.2cm)

  • Weight

    12.23 lbs (5.5kg)

  • UPC Code

    810159628815

About OWC / Other World Computing Archive Pro

Take control of your data management with the OWC Archive Pro LTO-9 Thunderbolt Tape Storage Drive, designed to meet the growing demands of media and entertainment professionals, corporations, government agencies, and small businesses. As data complexity and volume increase, the need for efficient and reliable storage solutions becomes paramount. The OWC Archive Pro offers a robust answer to these challenges, providing a seamless tape backup and archiving solution that integrates easily into your existing workflow.

This compact and rugged storage drive is equipped with a built-in handle, making it highly portable for on-set use or easy transfer between studio, department, or office environments. With the ability to add up to a 16TB SSD in its universal 2.5/3.5-inch drive expansion bay, the Archive Pro offers expansive storage options. Additionally, the second Thunderbolt (USB-C) port allows you to connect up to five additional Thunderbolt devices or your choice of USB-C or DisplayPort devices, enhancing your workflow capabilities.

The Archive Pro supports DisplayPort 1.4, enabling you to connect up to an 8K display, and features an 85W charging capability to keep your notebook powered while you work. Its user-friendly design includes the Hedge Canister archiving app, allowing for simple drag-and-drop file management. This solution comes complete with LTO data tape, cleaning tape, and a Thunderbolt cable, ensuring you have everything you need for immediate use.

Utilizing industry-standard Linear Tape Open (LTO) tapes formatted with the Linear Tape File System (LTFS), the Archive Pro makes data archiving as straightforward as using a hard drive or SSD. Compatible with macOS, Windows, and Linux, it eliminates the need for additional software or proprietary hardware, offering a future-ready solution that supports LTO-7, LTO-8, and LTO-9 tapes.

The OWC Archive Pro significantly reduces Total Cost of Ownership (TCO) compared to traditional hard drives, offering up to a 577% ROI over a 10-year period. This makes it an economically sound choice for long-term data storage, with LTO tapes providing the lowest cost per TB and the longest lifespan among storage options.

Designed to meet stringent regulatory requirements, the Archive Pro is ideal for industries such as healthcare, finance, and government, where data confidentiality and integrity are critical. By using WORM (Write Once, Read Many) LTO tapes, you can secure your data in a non-erasable, non-rewritable format, protecting it from accidental or malicious alterations.

The OWC Archive Pro is a versatile solution for various industries, including video surveillance, motion picture production, digital media, and education. It supports seamless workflow integration with options to expand storage, connect additional devices, and maintain efficient data management practices.

With the OWC Archive Pro, you gain a reliable, certified solution that undergoes rigorous performance testing to ensure it meets the demands of creative professionals. Included with the Archive Pro is a certified 0.7-meter OWC Thunderbolt Cable, with additional lengths available to suit your specific workflow needs. Experience the OWC difference with a storage solution that combines ease of use, reliability, and future-proof technology, empowering you to manage your data with ultimate confidence.

OWC / Other World Computing Archive Pro Features

  • Compatible: built-in LTO-9 drive read and writes LTO-9 and LTO-8 tapes
  • Expansive Storage: LTO-9 up to 18TB native
  • Store More: add optional 2.5/3.5" drive with expansion bay
  • Store Longer: 30+ years tape longevity
  • Instant ROI: offers a 577% ROI with up to 53% lower costs vs HDD storage
  • Flexible: works with your favorite archiving software
  • Compliance Ready: supports WORM cartridges required by legal and regulatory record keeping
  • Fast Tape Creation: up to 300MB/s native

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Utilize LTO-9 tape drive technology for reliable, long-term data archive storage.
  • Enjoy fast performance with Thunderbolt 3 connectivity, reaching speeds up to 5000MB/s.
  • Ensure data security with LTO-9's advanced encryption, protecting your valuable assets.
  • Benefit from a 4TB staging SSD for quick data transfers to LTO tape for archiving.
  • Easily set up this OWC Archive Pro with your Mac or Windows system via Thunderbolt.
  • Trust in the reliable brand of OWC for professional-grade data storage solutions.

What's in the box:

  • OWC / Other World Computing Archive Pro LTO-9 Thunderbolt Tape Storage Drive with 4TB Staging and Canister (Black)
  • LTO-9 Tape (18TB Native/45TB Compressed)
  • Cleaning Cartridge
  • 28" Thunderbolt Cable
  • US Power Cable
  • Hedge Canister Archival/Backup Software
  • User Manual
  • OWC / Other World Computing 3 Year Limited Warranty
