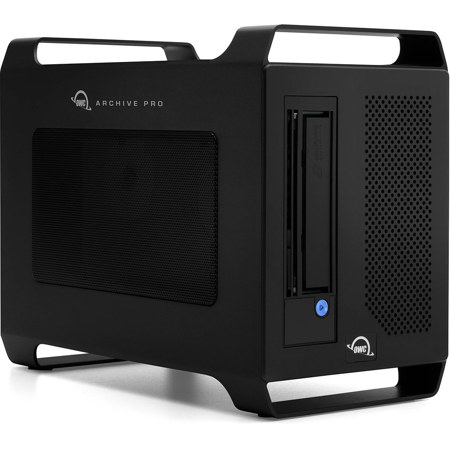

OWC / Other World Computing Archive Pro LTO-9 Thunderbolt Tape Storage Drive with Canister, Black

SKU: OWCTBLTMP90H MFR: OWCTBLTMP90000H
Earn VIP Reward Points

Key Features

  • Utilize LTO-9 tape drive technology for reliable, long-term data archive solutions.
  • Experience fast data transfer rates up to 300MB/s native for efficient workflows.
  • Ensure data security with robust LTO-9 technology, safeguarding your critical assets.
  • Enjoy easy setup via Thunderbolt for seamless integration with your existing systems.
  • Benefit from remote access capabilities, managing your data from anywhere, anytime.
  • Get reliable performance with included Hedge Canister archival/backup software.
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

OWC / Other World Computing Archive Pro Specifications

  • Color

    Black

  • Material

    Aluminum

  • Drive Bays

    1 bay supporting: 2.5" SATA drives, 3.5" SATA drives, 2.5" SAS drives, 3.5" SAS drives

  • Boot Support

    No

  • LTO Mechanism

    IBM LTO Ultrium 9

  • LTO Speed (Max)

    LTO-9: Up to 300MB/s native (750MB/s compressed)

  • LTO Media Supported

    LTO-9
    LTO-8

  • LTO Media Included

    Fujifilm LTO-9 18TB data cartridge

  • LTO Cleaning Media

    Included

  • Device Ports

    1x Host Port - Thunderbolt 3 (USB-C) up to 40Gb/s (5000MB/s)
    1x Thunderbolt 3 (USB-C) Port
    1x Mini-SAS HD (12Gb/s) SFF-8644 Port
    1x DisplayPort Port

  • Power Delivery

    Thunderbolt 3 host port provides up to 85W of power to the host computer
    Thunderbolt 3 device port provides up to 15W of power to external drives and other devices

  • Display Support

    Up to one 8K display @ 60Hz,
    or one 4K display @ 120Hz,
    or one 5K display @ 60Hz,
    or two 4K displays @ 60Hz,
    or one 4K display @ 60Hz and one 4K display @ 30Hz,
    or one 4K display @ 60Hz,
    or one 4K display @ 30Hz

  • Display Support by Port

    Thunderbolt 3: Up to 5K @ 60Hz via a native Thunderbolt 3 display or 4K @ 60Hz via a Thunderbolt display or a USB-C display adapter
    DisplayPort 1.4: Up to 8K @ 60Hz or 4K @ 120Hz

  • Data Transfer Rate (Maximum)

    Thunderbolt 3 : Up to 40Gb/s (or 5000MB/s)

  • Chipset / Controller

    Thunderbolt: Intel JHL7440

  • MTBF (Mean Time Between Failures)

    Varies depending on drive mechanism installed

  • Contact Start Stops

    Varies depending on drive mechanism installed

  • Host Interface Requirements

    Thunderbolt (USB-C) port

  • Mac OS Compatibility

    macOS 11.x Big Sur
    macOS 12.x Monterey
    macOS 13.x Ventura
    macOS 14.x Sonoma
    macOS 15.x Sequoia

  • PC OS Compatibility

    Windows 10 64-bit Edition
    Windows Server 2022
    Windows 11

  • Linux OS Compatibility

    Yes

  • Driver Required

    Yes
    The OWC Archive Pro LTO tape drive communicates over a SAS connection and requires a driver to enable this interface.

  • Driver Required (Contd.)

    New LTO-9 devices and media required that the media be initialized when used in a drive for the first time.

  • Other Requirements

    Archive Pro will work in Windows 10, but does not support hot plug/unplug during sleep/hibernate modes and may encounter issues.

  • External Power Adapter

    No

  • Power Supply

    Internal UL-listed universal auto-switching power supply

  • AC Input

    90-264V, 47-63Hz, 1.0A-1.8A

  • DC Output

    +12V, 16.7A

  • Wattage

    200W

  • Cooling

    1x cooling fan

  • Security Slot

    Yes

  • Power Button

    Yes

  • Power/Activity LED

    Yes

  • Certifications

    BSMI
    CE
    FCC
    RCM
    VCCI

  • Ambient Temperature

    Operating: 41 Degree F to 95 Degree F (5 Degree C to 35 Degree C)
    Non-Operating: -4 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Altitude

    Operating: -1,000 to 10,000' (-304.8 to 3,048m)
    Non-Operating: -1,000 to 40,000' (-304.8 to 12,192m)

  • Humidity

    Operating: 8% to 90% non-condensing
    Non-Operating: 5% to 95% non-condensing

  • Shock

    Operating: Varies depending on drive mechanism installed
    Non-Operating: Varies depending on drive mechanism installed

  • Noise

    Varies depending on drive mechanism installed

  • Dimensions (L x W x H)

    11.5 x 6.1 x 9.1" (29.2 x 15.5 x 23.2cm)

  • Weight

    12.21 lbs (5.5kg)

  • UPC Code

    810159629102

About OWC / Other World Computing Archive Pro

The OWC Archive Pro LTO-9 Thunderbolt Tape Storage Drive with Canister in Black is an essential solution for managing and preserving vast amounts of data, tailored for media and entertainment professionals, corporations, government agencies, and small businesses. As data complexity and volume continue to rise, with projections indicating a 50-70% annual growth in digitalized content, the need for efficient data management becomes critical. The OWC Archive Pro addresses these challenges by offering a robust tape backup and archiving solution that integrates seamlessly into existing workflows, providing a cost-effective alternative to traditional disk-based storage.

Designed for portability, the Archive Pro features a rugged, compact form with a built-in handle, making it ideal for on-set use or easy transport between studios, departments, or offices. This shared data protection solution is configurable, allowing the addition of up to a 16TB SSD in its universal 2.5/3.5-inch drive expansion bay. Its expansive capabilities are further enhanced by a second Thunderbolt (USB-C) port, which supports up to five additional Thunderbolt devices or a USB-C or DisplayPort device, including an 8K display via DisplayPort 1.4.

The Archive Pro simplifies data archiving with its drag-and-drop functionality, facilitated by the included Hedge Canister archiving app. This user-friendly interface allows files to be managed as easily as on a hard drive or SSD, thanks to the industry-standard Linear Tape Open (LTO) tapes formatted with the Linear Tape File System (LTFS). This ensures compatibility across macOS, Windows, and Linux systems without the need for additional software or proprietary hardware.

Future-proof and advanced, the Archive Pro supports the latest LTO-7, LTO-8, and LTO-9 tapes, ensuring long-term data accessibility with any LTO hardware brand. A 10-year Total Cost of Ownership (TCO) study by the Enterprise Strategy Group highlights LTO tape-based archiving as offering a 577% ROI, the highest among storage media, due to its low cost per TB and extended lifespan.

Meeting stringent regulatory requirements, the Archive Pro is ideal for industries needing secure data storage, such as healthcare, finance, and government sectors. Utilizing WORM (Write Once, Read Many) LTO tapes, it safeguards data against accidental overwrites and malicious alterations, ensuring compliance with legal and regulatory standards.

The Archive Pro is versatile, serving a wide range of industries, from video surveillance and motion picture production to educational institutions and digital media companies. Its seamless integration into workflows is enhanced by optional expansions, such as additional storage via the drive expansion bay, connectivity through USB 3.0, USB-C, or Thunderbolt devices, and the ability to charge notebooks with its 85W Thunderbolt port.

With Hedge Canister, creating LTO tapes is straightforward, offering cross-platform LTFS archives, tape spanning, and xxHash64 verification for data integrity. Catalogs are generated for each tape, mounting as network drives for easy searchability, thus minimizing tape wear and extending their lifespan.

The OWC Archive Pro is a critical component for data management, exemplified by its use in Netflix's data management workflows, adhering to the 3:2:1 rule for safeguarding original camera footage and long-term archiving. As part of OWC's comprehensive data solutions, the Archive Pro complements portable and desktop options like the OWC ThunderBlade and ThunderBay, ensuring a complete "ingest to archive" solution.

Certified for demanding use, each Archive Pro undergoes rigorous performance testing before shipping, ensuring reliability and readiness for professional environments. Included with the Archive Pro is a certified 0.7-meter OWC Thunderbolt Cable, with additional lengths available to suit specific workflow needs. Experience the OWC difference with Thunderbolt Certified products, offering seamless performance across Thunderbolt 3 and 4, with adapters available for Thunderbolt 2 compatibility.

OWC / Other World Computing Archive Pro Features

  • Compatible: built-in LTO-9 drive read and writes LTO-9 and LTO-8 tapes
  • Expansive Storage: LTO-9 up to 18TB native
  • Store More: add optional 2.5/3.5" drive with expansion bay
  • Store Longer: 30+ years tape longevity
  • Instant ROI: offers a 577% ROI with up to 53% lower costs vs HDD storage
  • Flexible: works with your favorite archiving software
  • Compliance Ready: supports WORM cartridges required by legal and regulatory record keeping
  • Fast Tape Creation: up to 300MB/s native

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Utilize LTO-9 tape drive technology for reliable, long-term data archive solutions.
  • Experience fast data transfer rates up to 300MB/s native for efficient workflows.
  • Ensure data security with robust LTO-9 technology, safeguarding your critical assets.
  • Enjoy easy setup via Thunderbolt for seamless integration with your existing systems.
  • Benefit from remote access capabilities, managing your data from anywhere, anytime.
  • Get reliable performance with included Hedge Canister archival/backup software.

What's in the box:

  • OWC / Other World Computing Archive Pro LTO-9 Thunderbolt Tape Storage Drive (Black)
  • LTO-9 Tape (18TB Native/45TB Compressed)
  • Cleaning Cartridge
  • 28" Thunderbolt Cable
  • US Power Cable
  • Hedge Canister Archival/Backup Software
  • User Manual
  • OWC / Other World Computing 3 Year Limited Warranty
