OWC / Other World Computing ThunderBay 6 Specifications

  • Software Requirements

    macOS 10.12 or later
    Windows 10 or later

  • Hardware Requirements

    Mac or PC featuring Thunderbolt 3 interface
    Mac or PC featuring Thunderbolt or Thunderbolt 2 interface

  • Interface (Chipset)

    1x Thunderbolt 3 (JHL6540)
    1x DisplayPort

  • Max Transfer Rate

    Thunderbolt 3: 40 Gb/s (5000 MB/s)

  • JBOD / RAID Support

    JBOD: Utilize each of the six drives independently
    Includes SoftRAID XT with support for RAID 5, 4, 0, 1 and 10
    RAID: Use any Software RAID of your choice to setup for multi-drive performance or data redundancy

  • Initial Configuration

    RAID 5

  • Standard Mechanism

    6x 6.0TB Toshiba MD04ACA Series Hard Disk Drives

  • Drive Interface

    SATA

  • Power Supply

    Internal UL-listed universal auto-switching
    AC input: 100 to 240V

  • Kensington Lock Slot

    Yes

  • LED

    Yes (Power and disk activity)

  • Ambient Temperature

    Operating: 41 to 107.6 deg. F (5 to 42 deg. C)
    Non-Operating:-40 to 149 deg. F (-40 to 65 deg. C)

  • Humidity

    Operating: 8% to 90% non-condensing
    Non-Operating: 5% to 95% non-condensing

  • Dimensions (HxLxW)

    18.4 x 24.1 x 19.7cm (7.24 x 9.49 x 7.76")

  • Weight

    5.25kg (11.57 lbs)

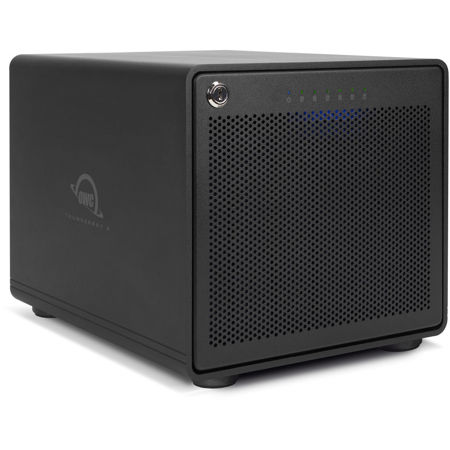

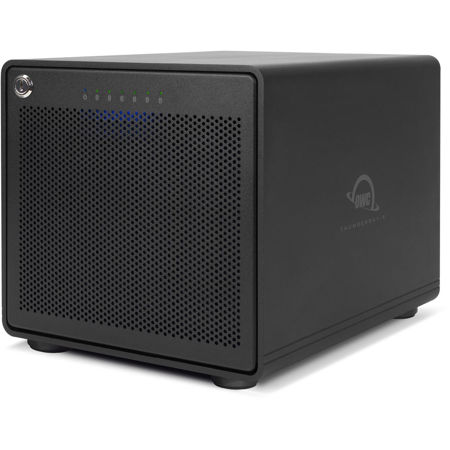

About OWC / Other World Computing ThunderBay 6

Storage Maximizer for Multimedia Workloads
When it comes to big jobs and tight deadlines, you don't want anything to slow your workflow down. The content you create and edit tends to grow the more you work with it; your equipment needs to keep up. The OWC ThunderBay 6 provides an exceptional level of performance to help you meet the demands of your most complex projects.

Room to Move
Whether you're working with tons of small files or editing and streaming the latest 8K or VR footage, ThunderBay 6 enables you to complete your products faster, giving you more time to create. And with dual Thunderbolt 3 ports and a DisplayPort, integrating it into your workstation has never been easier. ThunderBay 6 features six bays for hot-swappable hard drives or SSDs - or a combination - all housed in a rugged aluminum enclosure with an integrated power supply. Drives run quietly and are kept cool via a fan that operates quieter than a whisper.

Want even more storage?
To keep your workflow on the cutting edge, we've included an additional slot for an M.2 NVMe SSD to help future-proof your storage needs. NVMe is an incredibly efficient communications interface protocol to properly take advantage of SSD technology and high-performance connection buses. The result is exponentially faster and more efficient SSD storage, ideal for additional storage or a scratch disk.

The better and simpler way to RAID
The RAID version of ThunderBay 6 comes configured for RAID 5, giving you the best combination for maximizing disk space, the fastest access speeds plus protection against disk failure. While other RAID levels may give you faster data access or fail-safe data protection, no other RAID level combines speed, space and safety so well. Soft RAID is also packed with features from active predictive disk failure monitoring to multiple array volume spanning. Soft RAID from OWC brings technology typically found only in data centers to your workstation or editing bay. It constantly monitors your disks, alerting you when a disk is becoming unreliable and is likely to fail. Replacing a failing disk before it fails saves you precious uptime.

Storage pools
ThunderBay 6, coupled with Windows Storage Spaces (available in Windows 10), allows you to create storage pools and simple, mirror or parity spaces based on the mix of data protection and performance you need. If you run low on capacity, just add more ThunderBay units to the storage pool.

Expand and connect as needed
Link up to six Thunderbolt units together with Thunderbolt's daisy-chaining capabilities. Combined with our Soft RAID technology, you can configure a storage solution tailored to your unique workflow. Soft RAID can create volumes that span multiple arrays or generate a nested RAID configuration for even greater performance and protection. As a member of the OWC external storage line, ThunderBay 6 eliminates bottlenecks in accessing, transferring or archiving your work. Use it with your Thunderbolt 3 equipped Mac or Windows PC to take your workflow to the next level.

Certified, Tested and Backed by OWC
From the seamless aluminum enclosure and slip-resistant feet to the multi-hour drive "burn-in" performance certification procedure ThunderBay 6 is designed and built to the highest standards or reliability and performance. This ensures your ThunderBay 6 arrives operating properly, ready for demanding use.

Quality You Can Trust
Our commitment doesn't end there. Along with our OWC Limited Warranty, you can rely on OWC's award-winning, 24/7, U.S.-based support for your ThunderBay 6.

OWC / Other World Computing ThunderBay 6 Features

  • Works with 3.5" or 2.5" drives - no adapter needed
  • Supports RAID 0,1,4,5 and 1+0(10) via the advanced SoftRAID engine
  • Daisy chain up to six units
  • Rugged, field-tested enclosure
  • Whisper-quiet fan and non-skid feet

What's in the box:

  • OWC / Other World Computing ThunderBay 6 6-Bay Thunderbolt 3 RAID 5 Array with 36TB (6x 6TB) HDD
  • Thunderbolt 3 Cable
  • External Power Cable
  • 2x Keys for Front Panel Lock
  • User Guides
  • Other World Computing 3 Year Limited Warranty
