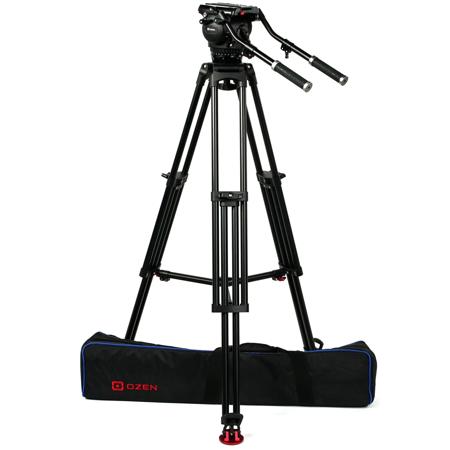

OZEN 20AL1HDS 2-Section Heavy-Duty Aluminum Tripod with AGILE 20S 100mm Fluid Head and S-Loc Plate

SKU: OZOZ20AL1HDS

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

OZEN 20AL1HDS Specifications

  • Payload Capacity

    Counterbalanced: 8.8-61.6 lb (4-28kg)
    Tripod: 99 lb (45kg)

  • Counterbalance Increments

    16

  • Pan/tilt Fluid Drag Increments

    9/9+0

  • Tilt Range

    +90 Degree /-80 Degree

  • Mounting Base

    100mm

  • Operating Temperature

    -40/+140 Degree F (-40/+60 Degree C)

  • Bubble Level

    Illuminated

  • Pan bar

    (2) Telescopic pan bar included

  • Height

    Tripod: 28.7-58.6" (73-149cm)

  • Weight

    AGILE 20S: 10.8 lb (4.94kg)
    Tripod Carry Weight: 9 lb (4.12kg)

About OZEN 20AL1HDS

Delivers 150mm-class performance for EFP & OB applications

Counterbalance
(16) increments of adjustable & repeatable counterbalance for fast set-up typical of ENG/EFP-type use. CNC-machined selector-dial mechanism facilitates crisp, repeatable increment-selection.

AGILE 20/20S enables the operator to quickly alternate between multiple camcorder-configurations of payloads between 4-28kg (8.8-61.6lbs).

Fluid Drag
AGILE 20/20S features a 9/9 + 0 fluid drag mechanism, which is incrementally adjustable and repeatable. The smooth, uniform fluid drag neither deviates nor deteriorates over time and usage.

The tremendous amount of fluid drag available at higher increments enables an experienced operator to acquire full-zoom pan/tilt-intensive images that are indistinguishable from those acquired in-close.

Camera Mounting Interface
AGILE 20/20S offers the choice of two industry-standard camera mounting interfaces enable seamless integration with nearly any brand of camera support already in use.

AGILE 20 with E-Z LOAD, compatible with the spring-loaded, capture-type camera mounting interface, facilitates fast set-up conducive to 'shoot & scoot' ENG-type use.

AGILE 20S with S-LOC delivers greater front-to-rear balance adjustment-range to accommodate exceptionally front-heavy or back-heavy payloads.

Ergonomics and compatibility
Experienced operators will appreciate:

• The familiar ergonomics of incremental pan/tilt fluid drag & counterbalance controls
• Distinguishable 90 degree-opposed pan & tilt brakes
• Replaceable pan bar rosettes for longer fluid head usability
• An illuminated bubble-level and spare camera plate screws and many other use-friendly features.

They' re all located where experienced operators expect, and operate likewise, precluding need to re-train 'muscle-memory'.

OZEN 20AL1HDS Features

  • Tripod Features
  • 99 lbs (45kg) payload capacity
  • 22mm-diameter heavy duty aluminum tubes are pinned to their joints - not glued
  • Twist-type brake levers with positive stops

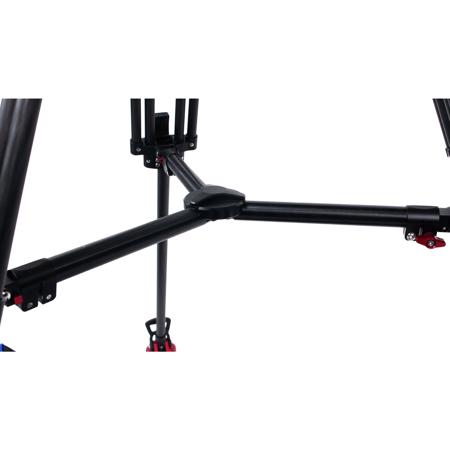

  • CONTENDER heavy-duty 2-position (flat & angled) mid-level spreader
  • Deep-tread rubber feet for better traction on smooth surfaces

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Achieve smooth, professional video shots with this stable OZEN video tripod system.
  • Enjoy precise control with the AGILE 20S fluid head, perfect for cinematic pans & tilts.
  • Confidently support heavy cameras; this robust tripod boasts a 99 lb (45kg) payload.
  • Quickly adapt to any terrain with the adjustable height range from 28.7-58.6 inches.
  • Benefit from illuminated bubble level, ensuring your shots are perfectly aligned every time.
  • Easily transport your video tripod with the included soft case for on-location shoots.

What's in the box:

  • Tripod (100AL1HD)
  • Fluid Head (AGILE 20S)
  • Mounting Plates (S-LOC)
  • 2x Pan Bar
  • Mid-Level Spreader
  • Rubber Feet
  • Soft Case
  • OZEN 2 Year Limited Warranty (Extended 2 Year Limited Warranty with Registration)
