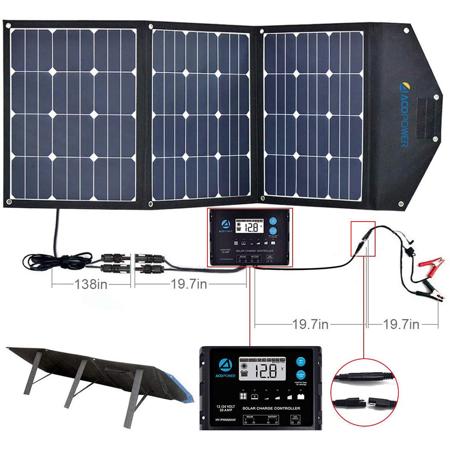

Papago ACOPOWER LTK 120W Foldable Solar Panel Kit,ProteusX 20A Charge Controller

Papago ACOPOWER LTK 120W Foldable Solar Panel Kit with ProteusX 20A Charge Controller

SKU: PAHYLTX40W0A
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Papago ACOPOWER LTK Specifications

120W Foldable Solar Panel

120W Foldable Solar Panel

Jump to...

  • Module Type

    3 x 40W

  • Maximum Power

    120W

  • Open-Circuit Voltage (Voc)

    24.64V

  • Maximum Operating Voltage (Vmp)

    20.88V

  • Short-Circuit Current (Isc)

    6.32A

  • Maximum Operating Current (Imp)

    5.97A

  • Dimensions

    Folded: 22 x 17.3 x 0.8" (560 x 440 x 20mm)
    Unfolded: 56.7 x 22 x 0.2" (1440 x 560 x 4mm)

  • Weight

    8.4 lbs (3.8kg)

20A Charge Controller

Jump to...

  • Nominal system voltage

    12V/24V DC

  • Rated charge/discharge current

    20A

  • Max. PV open circuit voltage

    50V

  • Grounding

    Common Negative

  • Battery Start Charging Voltage

    3V

  • Temperature Compensation Coefficient

    -24mV/ Degree C

  • Operating Temperature

    -40 Degree F to 140 Degree F (-40 Degree C to 60 Degree C)

  • Storage Temperature

    -40 Degree F to 185 Degree F (-40 Degree C to 85 Degree C)

  • Terminals

    Up to 10 AWG

  • Enclosure

    IP65

  • Dimensions

    5.59 x 3.7 x 1.06" (14.2 x 9.3 x 2.7cm)

  • Weight

    1.1 lbs (0.49kg)

About Papago ACOPOWER LTK

The ACOPOWER 120 Watt Monocrystalline Portable Solar Panel is designed for those that live life on the go and need continuous power while doing so. Featuring high efficiency solar panels, the 120W Solar Panel is your new best friend when you're far from home. Travel with ease using the charger's bungee loops which attach to your backpack. Unfold the device and expose the 120 watt Sunpower solar panel,. No matter where you go, keep your most important electronic devices powered up and connected to the world.

Papago ACOPOWER LTK Features

  • 120 Watt Portable Solar Panel Features
  • Light and portable handle design, sets up in one minute! Includes an external pocket for cables and accessories, 3 support legs for easy set up
  • Sunpower monocrystalline cells increase conversion efficiency up to 25%
  • This kit includes a portable solar panel suitcase; 20A LCD waterproof charge controller, alligator clamps for battery charging, a USB QC 3.0 port, a USB-C(Type C) port, a DC to DC adapter, different sizes of connectors, two pairs of MC-4 Connectors, and an SAE to SAE adapter
  • 3-USB Smart Charging Technology - The build-in smart IC chip identifies your device, and maximizes the charging speed while protecting your devices from overcharging and overloading. Charging current of USB ports is monitored and automatically adjusted according to the sunlight level
  • 20A LCD Charge Controller Features
  • Compatible with 8 battery-types: Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium
  • Waterproof design, suitable for indoor, outdoor, camping, boat, and RV use
  • 20 amps 12v/24v auto continuous charging capacity, enabling use of up to 12V/360watts, 24V/720watts
  • Large negative ground LCD display design. Presets for volts, amps, amp hours and battery
  • 5 charging states: soft, bulk, absorption, equalization and float, providing for 100% return of capacity and longer battery life. Over voltage, short circuit and reverse polarity protection

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 120 Watt Portable Solar Panel Highlights
  • Light and portable handle design, sets up in one minute
  • Includes an external pocket for cables and accessories, 3 support legs for easy set up
  • Sunpower monocrystalline cells increase conversion efficiency up to 25%
  • 20A LCD Charge Controller Highlights
  • Compatible with 8 battery-types: Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium

What's in the box:

  • Papago 120W Foldable Solar Panel
  • 20A Charge Controller
  • 2x MC4 Connectors
  • Alligator Clamps
  • User Manual
  • Papago 18 Month Limited Warranty for Solar and 1 Year Limited Warranty for Accessories
