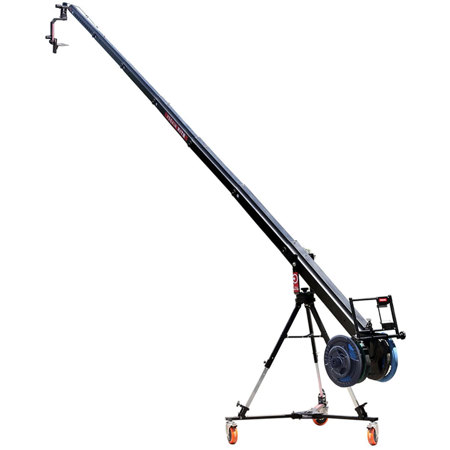

Proaim Kite-22 4.5' Telescopic Camera Jib Crane Popular Package with Sr. Pan Tilt Head and Joystick Controller

SKU: PAKITE22POPR MFR: KITE-22-POPULAR
Earn VIP Reward Points

Key Features

  • Capture stunning cinematic shots with the Proaim Kite-22 camera jib crane system.
  • Achieve smooth, professional camera movements with the included Sr. Pan Tilt Head.
  • Enjoy variable speed control for precise pan and tilt, perfect for dynamic scenes.
  • Supports up to 45lbs, this jib crane is ideal for various camera and lens setups.
  • The telescopic design extends to 19', offering versatile shooting perspectives.
  • Quickly set up on location with the robust LW-150 jib stand and D-33 Pro dolly.
See More Product Details
Special Order?Estimated to Ship: 08/13/2025
Calculate Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Proaim Kite-22 Specifications

Kite-22 Camera Jib Crane

Kite-22 Camera Jib Crane

Jump to...
  • Jib Arm Material

    High Grade Aluminum HE30

  • Jib Arm Shape

    Octagonal

  • Height from Ground

    19' (5.8m)

  • Jib Arm Thickness

    3mm

  • Jib Crane Length

    24.5' (7.5m)

  • Jib each Arm length

    4' (1.21m)

  • Crane Pan Lock

    Yes

  • Crane Tilt Lock

    No

  • Finish

    Black Powder Coated

  • Coupling Jib Arm Sections

    A union coupling design of Jib Arm is done by washer and Steel bolt and shank with external clamps as well as Pin Lock for double locking System

  • Jib Arm Break downs to

    7 Sections of 4' each

  • Camera Platform Leveling

    By Control Cable

  • Stress cable

    High carbon steel with electro galvanized 4mm tested wire at 800kg

  • Multiple Alignment

    Multiple user friendly alignment of Stress Cable is provided For making Jib Stand straight without any curve

  • Carrying Case size

    51" (129.54cm)

  • Jib Crane Weight

    66 lbs (30kg)

  • Max Camera Package Load Capacity

    45 lbs (20kg) (including Pan Tilt Head)

  • Jib Arm Octagonal Tube

    Outer Diameter:
    6.45" (164mm) (1st Section)
    6.06" (154mm) (2nd Section)
    5.66" (144mm) (3rd Section)
    5.27" (134mm) (4th Section)
    4.88" (124mm) (5th Section)
    4.48" (114mm) (6th Section)
    4.09" (104mm) (7th Section)

  • Jib Arm Octagonal Tube (Contd.)

    Inner Diameter:
    6.14" (156mm) (1st Section)
    5.74" (146mm) (2nd Section)
    5.35" (136mm) (3rd Section)
    4.96" (126mm) (4th Section)
    4.56" (116mm) (5th Section)
    4.17" (106mm) (6th Section)
    3.77" (96mm) (7th Section)

  • Jib Arm Height

    19' (5.79m) high at 24.5' (7.46m) length
    16.6' (5.05m) high at 22.3' (6.79m) length
    14.3' (4.35m) high at 19' (5.79m) length
    12.2' (3.71m) high at 15.10' (4.6m) length
    10' (3m) high at 12.8' (3.9m) length

Jib Tripod Stand (LW-150)

Jump to...
  • Weighing Capacity

    330 lbs (150kg)

  • Material Used

    Solid Aluminum

  • Hub Assembly Material

    High Grade Aluminum HE30

  • Bowl

    Mount: 5.9" (150mm)
    Thickness: 1.21" (30.8mm)

  • Stand

    Minimum Height With Bowl: 26" (66.04cm)
    Maximum Height With Bowl: 38" (96.52cm)

  • Distance from Center

    22" (55.88cm)

  • Weight

    Stand: 14.7 lbs (6.7kg)
    Spreader: 3.96 lbs (1.8kg)

  • Spreader

    Max Opening: 24" (60.96cm)
    Min Opening: 15" (38.1cm)

  • Length of Hard Case

    28.7" (72.8cm)

D-33 PRO Camera Dolly

Jump to...
  • Maximum Load capacity

    1763.7 lbs (800kg)

  • Material Used

    MS powder coated

  • Bolts

    Steel bolts with washers

  • Wheels Diameter

    5.85" (148.7mm)

  • Wheels Thickness

    1.94" (49.40mm)

  • Wheel Material

    Polyurethane

  • Central Distance

    28.34" (72cm)

  • Height From Ground

    9" (22.86cm)

  • Dolly Type

    Three leg Floor dolly

  • Wheel Lock

    Yes

  • Dimensions

    Folded: 33 x 11 x 8.66" (84 x 28 x 22cm)
    Doorway Width: 56.69" (144cm)

  • Weight

    33.51 lbs (15.2kg)

Sr. Pan Tilt Head

Jump to...
  • Pan-Tilt Material

    High Grade Aluminum

  • Max Camera Package Load Capacity

    16.5 lbs (7.5kg)

  • Pan movement

    360 degrees

  • Tilt movement

    360 degrees

  • Speed

    Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec (high speed)
    Slowest Speed : 2 minutes
    Highest Speed : 7 seconds.

  • Motors

    Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees

  • Gears

    2- Silver Big Gears (Dia- 89mm)
    2- Brass Small Gears (Dia- 14mm)

  • AC Adapter

    input: AC 100 - 240V
    output: DC 12V -2A

  • Cable Length

    29.5' (9m)

  • Cable Connector

    4-Pin XLR

  • Battery Cable

    9.8' (3m)

  • Minimum Height of head

    18.5" (47cm)

  • Maximum Height of head

    26" (66cm)

  • Weight

    15.8 lbs (7.2kg)

Joystick Controller

Jump to...
  • Joystick Controller

    2-Axis

  • Connectors

    2x 4-Pin XLR male connectors

  • Pan/Tilt Direction

    Yes

  • Upgraded with

    Damping knob

About Proaim Kite-22

It's time to elevate your filmmaking with the Proaim Kite-22 Popular Package, a professional camera crane system designed to deliver Hollywood-style "GLIDING" and "FLOATING" camera shots. This comprehensive package is engineered to capture everything from sweeping panoramas to intricately framed shots, adding a dynamic 'wow factor' to your visual storytelling.

The heart of this package is the Kite-22 telescopic jib arm, constructed from high-grade aluminum for robustness and stability. The arm sections are expandable from 4ft to 24.5ft in 3ft increments, offering flexibility and adaptability to your shooting needs. Unused sections can be stored in the tail as ballast weight, reducing your counterweight demand.

The package also includes a heavy-duty jib stand with a 150mm bowl and spreader, providing a solid base for the jib crane system. A compact and robust floor Dolly with 360-degree rotating wheels supports the stand, ensuring smooth and stable movement.

The 2-axis Senior Pan Tilt head, designed for DV, HDV, and broadcast cameras up to 16.5 pounds, offers 360-degree panning and tilting movement with reversal points. Controlled remotely, this head enhances your creative flexibility and can be connected to most pan tilts in minutes, saving valuable production time.

The joystick control system, operational from a flat surface in handheld mode or when attached to the bottom of the jib arm, provides proportional linear movement for precise control of the head's speed and direction. The joystick is touch-sensitive, allowing for nuanced adjustments to the speed of the head's movement.

The package also includes a LANC Zoom Controller, a universal controller for LANC and Panasonic Mini DV or HDV cameras. This sensitive thumb switch allows for variable-zoom speed from slow to fast, giving you complete control over your zoom level.

The Proaim Kite-22 Popular Package also comes with a universal adapter, offering power source plug capability for most countries, and a tool pouch with premium quality tools for easy adjustments on the go. All these components are packed in a high-impact protective case for safe transportation and storage.

With the Proaim Kite-22 Popular Package, you're not just investing in a camera crane system, you're investing in your creative vision. Capture the world as you see it, with the precision and professionalism of Hollywood productions.

Proaim Kite-22 Features

  • Modularly Designed Professional Crane transforms into various Lengths for Different Shooting Requirements
  • Aluminum Construction with payload 20kg/44lb ensures Strength, Reliability and Utmost Security
  • Precisely Constructed 2-Axis Motorized Senior Pan-Tilt Head with 360 Degree Panning & Tilting offers Infinite Smooth Angles with Ease
  • Sturdy Jib Stand Carries Heavy Load with Ease. Rock Solid Dolly offers Ultimate Stability to the entire Crane Setup
  • Comes in Protective Storage Cases

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning cinematic shots with the Proaim Kite-22 camera jib crane system.
  • Achieve smooth, professional camera movements with the included Sr. Pan Tilt Head.
  • Enjoy variable speed control for precise pan and tilt, perfect for dynamic scenes.
  • Supports up to 45lbs, this jib crane is ideal for various camera and lens setups.
  • The telescopic design extends to 19', offering versatile shooting perspectives.
  • Quickly set up on location with the robust LW-150 jib stand and D-33 Pro dolly.

What's in the box:

  • Kite-22 Telescopic Camera Jib Crane
  • 150mm Bowl Jib Stand with Spreader (LW-150)
  • D-33 Pro Dolly (D-33)
  • Sr. Pan Tilt Head with Joystick Controller & Accessories (PT-SR)
  • Proaim Lanc Zoom Controller (P-ZC-3DV)
  • Customized Storage Cases for Camera Jib Arm and Jib Stand & Accessories
  • Tools and Tool Pouch/Wrap
  • Proaim 1 Year Limited Warranty
