Proaim Kite-22 4.5' Telescopic Camera Jib Crane Wonder Package with Gold Pan Tilt Head and Joystick Controller

SKU: PAKITE22WDER MFR: KITE-22-WONDER
Earn VIP Reward Points

Key Features

  • Capture smooth, cinematic shots with the Proaim Kite-22 camera jib crane, offering superior stability.
  • Achieve dynamic camera movements; this jib crane supports up to 45lbs, ideal for various cameras.
  • Enjoy precise control with the included gold pan and tilt head, perfect for professional videography.
  • The heavy-duty jib stand ensures stable, secure operation, even during complex camera movements.
  • Portable dolly with locking wheels supports up to 1763.7 lbs, making location shoots a breeze.
  • Set up quickly with user-friendly design; get smooth, professional footage with minimal effort.
See More Product Details
Special Order?Estimated to Ship: 08/24/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Mike L : Is this in stock?  Would be nice to see an in/out-of-stock bullet on main page instead of ordering it only to find out it is in fact out-of-stock.
Shopper : Is this in stock?  Would be nice to see an in/out-of-stock bullet on main page instead of ordering it only to find out it is in fact out-of-stock.
Shopper : Why Did You Choose This?DWENDE R : “need it for a film shoot”

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Proaim Kite-22 Specifications

Kite-22 Telescopic Camera Jib Crane

Kite-22 Telescopic Camera Jib Crane

Jump to...
  • Jib Arm Material

    High Grade Aluminum HE30

  • Jib Arm Shape

    Octagonal

  • Height from Ground

    19' (5.8m)

  • Jib Arm Thickness

    3mm

  • Jib Crane Length

    24.5' (7.5m)

  • Jib each Arm length

    4' (1.21m)

  • Crane Pan Lock

    Yes

  • Crane Tilt Lock

    No

  • Finish

    Black Powder Coated

  • Coupling Jib Arm Sections

    A union coupling design of Jib Arm is done by washer and Steel bolt and shank with external clamps as well as Pin Lock for double locking System

  • Jib Arm Break downs to

    7 Sections of 4' each

  • Camera Platform Leveling

    By Control Cable

  • Stress cable

    High carbon steel with electro galvanized 4mm tested wire at 800kg

  • Multiple Alignment

    Multiple user friendly alignment of Stress Cable is provided For making Jib Stand straight without any curve

  • Carrying Case size

    51" (129.54cm)

  • Jib Crane Weight

    66 lbs (30kg)

  • Max Camera Package Load Capacity

    45 lbs (20kg) (including Pan Tilt Head)

  • Jib Arm Octagonal Tube

    Outer Diameter:
    6.45" (164mm) (1st Section)
    6.06" (154mm) (2nd Section)
    5.66" (144mm) (3rd Section)
    5.27" (134mm) (4th Section)
    4.88" (124mm) (5th Section)
    4.48" (114mm) (6th Section)
    4.09" (104mm) (7th Section)

  • Jib Arm Octagonal Tube (Contd.)

    Inner Diameter:
    6.14" (156mm) (1st Section)
    5.74" (146mm) (2nd Section)
    5.35" (136mm) (3rd Section)
    4.96" (126mm) (4th Section)
    4.56" (116mm) (5th Section)
    4.17" (106mm) (6th Section)
    3.77" (96mm) (7th Section)

  • Jib Arm Height

    19' (5.79m) high at 24.5' (7.46m) length
    16.6' (5.05m) high at 22.3' (6.79m) length
    14.3' (4.35m) high at 19' (5.79m) length
    12.2' (3.71m) high at 15.10' (4.6m) length
    10' (3m) high at 12.8' (3.9m) length

Jib Tripod Stand (LW-150)

Jump to...
  • Weighing Capacity

    330 lbs (150kg)

  • Material Used

    Solid Aluminum

  • Hub Assembly Material

    High Grade Aluminum HE30

  • Bowl

    Mount: 5.9" (150mm)
    Thickness: 1.21" (30.8mm)

  • Stand

    Minimum Height With Bowl: 26" (66.04cm)
    Maximum Height With Bowl: 38" (96.52cm)

  • Distance from Center

    22" (55.88cm)

  • Weight

    Stand: 14.7 lbs (6.7kg)
    Spreader: 3.96 lbs (1.8kg)

  • Spreader

    Max Opening: 24" (60.96cm)
    Min Opening: 15" (38.1cm)

  • Length of Hard Case

    28.7" (72.8cm)

D-33 PRO Camera Dolly

Jump to...
  • Maximum Load capacity

    1763.7 lbs (800kg)

  • Material Used

    MS powder coated

  • Bolts

    Steel bolts with washers

  • Wheels Diameter

    5.85" (148.7mm)

  • Wheels Thickness

    1.94" (49.40mm)

  • Wheel Material

    Polyurethane

  • Central Distance

    28.34" (72cm)

  • Height From Ground

    9" (22.86cm)

  • Dolly Type

    Three leg Floor dolly

  • Wheel Lock

    Yes

  • Dimensions

    Folded: 33 x 11 x 8.66" (84 x 28 x 22cm)
    Doorway Width: 56.69" (144cm)

  • Weight

    33.51 lbs (15.2kg)

Sr. Pan Tilt Head

Jump to...
  • Pan-Tilt Material

    High Grade Aluminum

  • Max Camera Package Load Capacity

    16.5 lbs (7.5kg)

  • Pan movement

    360 degrees

  • Tilt movement

    360 degrees

  • Speed

    Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec (high speed)
    Slowest Speed : 2 minutes
    Highest Speed : 7 seconds.

  • Motors

    Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees

  • Gears

    2- Silver Big Gears (Dia- 89mm)
    2- Brass Small Gears (Dia- 14mm)

  • AC Adapter

    input: AC 100 - 240V
    output: DC 12V -2A

  • Cable Length

    29.5' (9m)

  • Cable Connector

    4-Pin XLR

  • Battery Cable

    9.8' (3m)

  • Minimum Height of head

    18" (45.72cm)

  • Maximum Height of head

    23" (58.42cm)

  • Weight

    15.8 lbs (7.2kg)

Joystick Controller

Jump to...
  • Joystick Controller

    2-Axis

  • Connectors

    2x 4-Pin XLR male connectors

  • Pan/Tilt Direction

    Yes

  • Upgraded with

    Damping knob

  • Weight

    1.7 lbs (810g)

  • UPC Code

    718117847875

About Proaim Kite-22

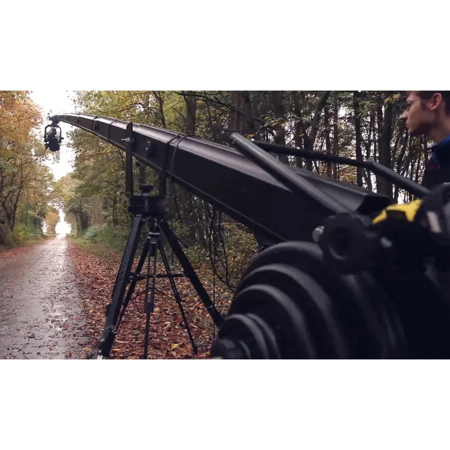

Let the Proaim Kite-22 4.5' Telescopic Camera Jib Crane Wonder Package elevate your video production to cinematic heights. Designed for professionals seeking durability and versatility, this high-quality camera crane system offers a robust construction and a flexible shot selection that caters to the dynamic needs of filmmakers and photographers alike.

Crafted from high-grade aluminum, the Kite-22's telescopic jib arm is both sturdy and reliable, ensuring steady and smooth footage. The arm's sections can be expanded from 4ft to an impressive 24.5ft in 3ft increments, with 1ft overlaps between sections for added stability. This feature allows you to customize the crane's length to suit your specific shooting requirements, whether you're capturing intimate indoor scenes or expansive outdoor landscapes.

The Gold Pan Tilt Head, included in this wonder package, boasts a payload capacity of up to 7.5kg/16.5lbs, accommodating a wide range of cameras and equipment. With 360-degree endless panning and tilting capabilities, controlled by a precision joystick, you can achieve fluid, sweeping movements that add a professional touch to your productions.

The joystick controller, with its 15mt long operating cable and AC adapter, provides intuitive control over the pan and tilt head. Its touch-sensitive design responds to the intensity of your movements, allowing for fine-tuned speed adjustments that enhance the creative control over your shots.

The D-33 Pro Dolly is a testament to the package's versatility, featuring smooth 360-degree rotating wheel bearings and an adjustable tripod holding system. Its inbuilt wheel lock ensures stability during static shots, while its compact and lightweight design makes it the perfect companion for on-the-go shoots.

Supporting the entire setup is the LW-150 Heavy Duty Jib Stand, specifically designed for the Kite-22. With a spreader for added stability, it confidently supports heavy loads, ensuring your equipment remains secure throughout the shoot.

For those using Sony & Canon cameras with a 2.5mm mini-jack LANC input or Panasonic models with a Cam Remote input, the Proaim Lanc Zoom Controller is an invaluable tool. It allows for smooth, variable-zoom speed control, from slow to fast, giving you the power to adjust your shot's focal length with precision.

Lastly, the package includes a tool pouch/wrap with various pockets to organize your hand tools efficiently, ensuring that you have everything you need for a quick setup and adjustments on location.

The Proaim Kite-22 4.5' Telescopic Camera Jib Crane Wonder Package is not just a piece of equipment; it's a comprehensive solution for filmmakers and photographers who demand the best in camera movement and control. It's a reliable partner in bringing your creative vision to life, shot after stunning shot.

Proaim Kite-22 Features

  • Aluminum Construction with payload 20kg/44lb ensures Strength, Reliability and Utmost Security
  • Precisely Constructed 2-Axis Motorized Senior Pan-Tilt Head with 360 Degree Panning & Tilting offers Infinite Smooth Angles with Ease
  • Comes in Protective Storage Cases

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture smooth, cinematic shots with the Proaim Kite-22 camera jib crane, offering superior stability.
  • Achieve dynamic camera movements; this jib crane supports up to 45lbs, ideal for various cameras.
  • Enjoy precise control with the included gold pan and tilt head, perfect for professional videography.
  • The heavy-duty jib stand ensures stable, secure operation, even during complex camera movements.
  • Portable dolly with locking wheels supports up to 1763.7 lbs, making location shoots a breeze.
  • Set up quickly with user-friendly design; get smooth, professional footage with minimal effort.

What's in the box:

  • Kite-22 Video Camera Jib Crane with Accessories
  • Gold Pan and Tilt Head with Accessories (PT-GOLD)
  • 150mm Bowl Jib Stand with Spreader (LW-150)
  • Zoom Control (P-ZC-3DV)
  • D-33 DOLLY (D-33)
  • Tools and Tool Pouch/Wrap
  • Customized Storage Cases
  • Proaim 1 Year Limited Warranty
