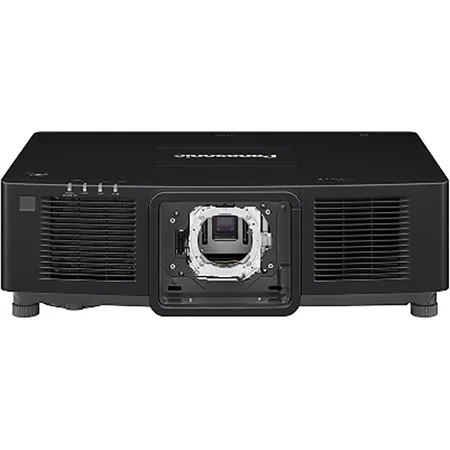

Panasonic PT-MZ11KL WUXGA 3LCD Laser Projector without Lens, Black

SKU: PANPTMZ11KLB MFR: PT-MZ11KLBU8
Earn VIP Reward Points

Key Features

  • Experience top performance with 11,000 lumens for brilliant, clear WUXGA projection.
  • Enjoy a durable build and consistent quality with a 20,000-hour laser light source.
  • Achieve a perfect fit in any venue with flexible 360-degree installation options.
  • Benefit from easy to use features, including versatile HDMI and Digital Link connectivity.
  • Project stunning visuals with a high 3,000,000:1 contrast ratio for deep blacks.
  • Get great value with a low 0.5W standby power consumption, saving energy costs.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Panasonic PT-MZ11KL Specifications

  • Color

    Black

  • Material

    Cabinet: Molded plastic

  • LCD panel

    Size: 1" (25.4mm) diagonal (16:10 aspect ratio)
    Display system: Transparent LCD panel (x3, R/G/B)
    Number of pixels: 2,304,000 (1920 x 1200)

  • Resolution

    WUXGA (1920 x 1200) pixels

  • Refresh rate

    60 Hz Refresh rate varies depending on scanning frequency

  • Light source

    Laser Diode

  • Light output

    Operating Mode:
    Normal: 11,000 lm
    Quiet: 7,700 lm

  • Time until light output declines to 50%

    Normal/Quiet: 20,000 hours

  • Filter Replacement Cycle

    20,000 hours

  • Contrast ratio

    3,000,000:1 (all white/all black)

  • Screen size

    80 - 600" (2.03 - 15.24m), 16:10 aspect ratio
    With ET-EMU100 Lens: 100 - 400" (2.54 - 10.16m), 16:10 aspect ratio (Lens Not Included)
    With ET-EMT800 Lens: 80 -500" (2.03 to 12.7m), 16:10 aspect ratio (Lens Not Included)

  • Center to corner zone ratio

    85%

  • Lens

    Lens Not Included

  • Lens shift

    Vertical: +/-60 % (+50 %, -20 % with ET-EMU100, +/-40 % with ET-EMW200, +/-50 % with ET-EMW300) (powered) (Lens Not Included)
    Horizontal: +/-20 % ( +/-19 % with ET-EMW200) (powered) (Lens Not Included)

  • Installation

    Ceiling/floor, front/rear, free 360-degree installation

  • Compatible Signal

    HDMI signal input:
    Video signal resolution: 480/60p,576/50p to 4096x2160
    Computer signal resolution: 640x480 to 3440x1440 (non-interlace)
    Dot clock frequency: 25 to 594MHz

    Digital Link signal input:
    Video signal resolution: 480/60p, 576/50p to 4096x2160
    Computer signal resolution: 640x480 to 1920x1200 (non-interlace)
    Dot clock frequency: 25 to 297MHz

    SDI signal input:
    HD-SDI, 3G-SDI signal

  • Terminals

    HDMI in 1: 2x HDMI 19-pin, Compatible with HDCP 2.3, Deep Color, 4K/60p signal input, CEC supported
    SDI IN: 1x BNC 3G/HD-SDI input
    Serial/Multi Sync In: 1x D-sub 9-pin (female) for external control (RS-232C compliant)
    Serial/Multi Sync Out: 1x D-sub 9-pin (male) for link control (RS-232C compliant)
    Remote 1 In: 1x D-sub 9-pin (female) for external control (parallel)
    Remote 2 In: 1x M3 for wired remote control

  • Terminals (Contd.)

    Digital Link: 1x RJ-45 for network and DIGITAL LINK connections (HDBaseTTM compliant), PJLink (class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.3 compatible, Deep Color compatible, 4K/60p signal input
    LAN: 1x RJ-45 for network connection, PJLink TM (class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible

  • Terminals (Contd..)

    DC Out: 1x USB Connector (Type A) for power supply (DC 5V, maximum 2A)
    USB: 1x USB Connector (Type A) for connecting USB memory and optional Wireless Module AJ-WM50 Series

  • Supported Internet Protocol version

    IPv4, IPv6

  • Operating noise

    35 dB (Normal)
    30 dB (Quiet)

  • Laser Classification

    Class 1 (IEC/EN 60825-1:2014)

  • Power supply

    AC 100V-240V, 50Hz/60Hz

  • Maximum power consumption

    615W (6.3-2.7A) (630VA) (The power consumption is 600 W at 200-240V)

  • On-mode power consumption

    Normal: 540 W (100-120V), 520 W (200-240V)
    Quiet: 360 W (100-120V), 340 W (200-240V)

  • Standby mode power consumption

    Normal: 10 W, When (Quick Startup) is set to (Off), and and terminal is not in use
    Eco: 0.5 W

  • BTU value

    Max 1,535 BTU

  • Operating environment temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Operating environment humidity

    10% to 80% (no condensation)

  • Country of Origin

    China

  • Power cord length

    9.84' (3m)

  • Dimensions (W x H x D)

    Without Lens:
    25.59 x 8.31 x 17.32" (650 x 211 x 440mm) (with the feet at shortest position and excluding protrusions)
    25.59 x 7.28 x 17.32" (650 x 185 x 440mm) (excluding the feet and protrusions)

  • Weight

    Without lens: 49.6 lbs (22.5kg) (Approx.)

  • UPC Code

    885170451452

About Panasonic PT-MZ11KL

World's Smallest, Lightest, and Quietest 11,000 lm LCD Projector
Introducing the smallest, lightest, and quietest LCD laser projector in its class with 11,000 lm, compact 22.5 kg (49.6 lbs) body, and quiet 30 dB operation. Optimized optical engine delivers a 25% increase in brightness.

Long-Life Energy-Saving Design Minimizes Problems
Multi-Laser Drive Engine and Backup Input enable continuous projection even in the event of trouble, and no light-source or filter maintenance is required for 20,000 hours. The series efficiently delivers high brightness.

Light, Bright, Quiet, and Harmonious
As the smallest and lightest 11,000 lm LCD laser projector in its class, PT-MZ11KL installs flexibly almost anywhere and delivers bright, immersive images in a wide range of applications, from conferences to edutainment. Its sophisticated body styling harmonizes with the spatial environment while quiet 30 dB operation limits distractions, ideal for hybrid meeting rooms, museums, or lecture halls.

World First: 11,000 lm on AC 100-240V
PT-MZ11KL is the first projector to deliver 11,000 lm on AC 100-240 V from a standard AC outlet, expanding application possibilities without special power-supply construction. The series evolved features enable resource-friendly installation: highlights include preactivated upgrade kits for Geo Pro , Remote Preview LITE, NFC function , Information Monitor, support for 4K input signals , black-level adjustment for curved screens, and eight optional lenses.

Perfectly Balanced Brightness and Color
Together with high-efficiency optical engine for immersive high-contrast images in well-lit rooms, PT-MZ11KL features Pure White Generator, an original technology that minimizes loss of light energy and balances rich color and high brightness. Dynamic Contrast NX includes new scene-recognition circuitry that detects light and dark areas of the image more precisely, while Detail Clarity Processor sharpens text edges for clear visibility.

Eco-Friendly Energy-Saving Design
PT-MZ11KL is highly efficient, consuming less energy than any projector in its class for highly sustainable daily operation. Light-source and filter replacement is extended to 20,000 hours, reducing waste. The projector is liquid cooled and features a dustproof structure for stable operation. Multi-Laser Drive Engine limits brightness loss should a diode fail, while Backup Input function maintains image display if the primary signal is interrupted.

Panasonic PT-MZ11KL Features

  • World's Smallest, Lightest, and Quietest 11,000 lm LCD Projector
  • The PT-MZ11KL delivers 11,000m on AC 100-240V, a World First
  • Long-Life Energy-Saving Design Minimizes Problems
  • Supports Art-Net DMX, PJLink, Crestron Connected V2, Crestron XiO Cloud, Extron XTP, and IPv6
  • High-contrast images with Dynamic Contrast NX

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience top performance with 11,000 lumens for brilliant, clear WUXGA projection.
  • Enjoy a durable build and consistent quality with a 20,000-hour laser light source.
  • Achieve a perfect fit in any venue with flexible 360-degree installation options.
  • Benefit from easy to use features, including versatile HDMI and Digital Link connectivity.
  • Project stunning visuals with a high 3,000,000:1 contrast ratio for deep blacks.
  • Get great value with a low 0.5W standby power consumption, saving energy costs.

What's in the box:

  • Panasonic PT-MZ11KL WUXGA 3LCD Laser Projector (Black)
  • Remote Control with Batteries
  • 9.84' Power Cord
  • 4x Lens Fixing Screw
  • (Lens Not Included)
  • Panasonic 3 Year Limited Warranty
