What is the payload capacity of the Proaim 14ft Camera Jib Crane?

The Proaim 14ft Camera Jib Crane can handle a payload of up to 8kg/17.6lb, making it suitable for a range of equipment, including Pan Tilt and 3-Axis Gimbals to Flat base fluid heads.

Is the Proaim 14ft Camera Jib Crane suitable for outdoor use?

Yes, the Proaim 14ft Camera Jib Crane is designed for both indoor and outdoor use. Its high-grade aluminum construction ensures durability and robustness in various shooting conditions.

What is the weight capacity of the Proaim Jib Stand?

The Proaim Jib Stand, made from CNC Aluminum, can carry loads up to 90kg/200lb, providing a solid foundation for the crane setup.

Does the Proaim 14ft Camera Jib Crane come with any additional features?

Yes, the Proaim 14ft Camera Jib Crane features an ergonomic camera platform, a dual arm design for enhanced stability, and a quick LCD monitor attachment. It also includes high-tensile weight closers for perfect balance.

Is the Proaim 14ft Camera Jib Crane easy to transport?

Yes, the Proaim 14ft Camera Jib Crane comes in high-impact protective packing for safe transportation and storage of your valuable equipment. It is designed to be a reliable travel companion for videomakers.

Shopper : Why Did You Choose This?JON J : Live-streaming baby

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Proaim Camera Jib Crane Specifications

Jib Crane

Jib Crane

Jump to...
  • Load Capacity

    Maximum: 17.6 lbs (8kg)

  • Material Used

    CNC made Aluminum Powder Coated

  • Jib Arm Shape

    Rectangle

  • Jib Arm Break downs into

    4 Parts

  • Length of Jib sections

    3.5' (1m) each

  • Camera Mount Bolt

    1/4"-20 and 3/8"-16

  • Variable shooting Lengths

    12, 9' (3.6, 2.7")

  • Jib Section Jointers

    Silver Aluminium

  • Bearing at Center Fork

    Pan Thrust bearing with washer made of stainless steel

  • Camera Tilt Angles

    Upto 270 degree

  • Locking Pin

    Stainless steel locking pin for stable or tilt camera angles

  • Pan Lock (For Jib)

    No

  • Tilt Lock (For Jib)

    No

  • Camera Mount plate

    Rectangle: 4.1 x 3.5" (10.5 x 9cm)

  • Camera Platform Levelling

    By stress cable: Stress Cable made of metal with adjusting turn buckle hook

  • Weight Holder Rod

    Made of MS Nickel chrome
    Length: 13.9" (355mm)
    Dia: 0.98" (25mm)

  • Weight Closures

    2pc. Made of MS Nickel chrome

  • Horizontal Movement

    Yes

  • Vertical Movement

    Yes

  • Horizontal/Vertical Movement Lock

    No

  • LCD Mount Provision

    Yes

  • Height Range from ground level

    15' (4.5m) (when stand height adjusted at 5')

  • Length from tripod to Camera Mount

    10.3' (3.1m)

  • Weight

    35 lbs (16kg)

Jib Stand

Jump to...
  • Material

    Aluminum, Black anodized

  • Features

    Safety Pin for Secure Pole

  • Base spread

    32 - 48" (81 - 122cm)

  • Height adjustment

    44 - 80" (111.7 - 203.2cm)

  • Completely collapsed height

    46" (117cm)

  • Outer Dia of top part of Stand

    2" (50mm)

  • Load Capacity

    200 lbs (90kg)

  • UPC Code

    53176786957

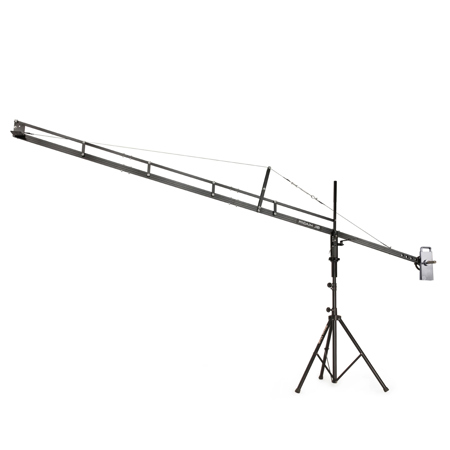

About Proaim Camera Jib Crane

Experience the perfect blend of functionality and quality with the Proaim 14ft Camera Jib Crane and Jib Stand. This user-friendly and cost-effective solution is designed to meet the needs of both indoor and outdoor shooting scenarios, making it a versatile addition to your filmmaking toolkit.

Constructed from high-grade aluminum, the Proaim 14ft Camera Jib Arm is robust, lightweight, and capable of handling a payload of up to 8kg/17.6lb. This makes it suitable for a range of equipment, from Pan Tilt and 3-Axis Gimbals to Flat base fluid heads.

The 14ft Crane is designed with fully ribbed sections, providing the strength needed for achieving higher angles. The adjustable metal wire system ensures superior stability, making it a reliable choice for capturing detailed and dynamic shots.

The jib arm features an ergonomic camera platform and a dual arm design for enhanced strength and stability. The SS locking pin, LCD monitor mounting arm, and weight closers are expertly crafted to make it a comprehensive solution for any crane application.

The Proaim Jib Stand, made from CNC Aluminum, can carry loads up to 90kg/200lb. This high-strength stand provides a solid foundation for the crane setup, ensuring stable shots every time.

Whether you're shooting in small indoor spaces or venturing into extreme outdoor environments, the Proaim 14ft Camera Jib Crane and Jib Stand is your perfect travel companion. It comes in high-impact protective packing for safe transportation and storage of your valuable equipment.

Capture your creative vision with the Proaim 14ft Camera Jib Crane and Jib Stand, a small investment that delivers big results. With quick and easy camera, pan tilt, or gimbal mounting, and smooth, jerk-free jib movements, this system is designed to help you achieve the perfect shots.

Proaim Camera Jib Crane Features

  • User-Friendly & Affordable Jib
  • High Build Quality with Payload up to 8kg/17.6 lbs
  • Versatile Jib Crane for Indoor/Outdoor Use
  • Professional. Simple. Powerful

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve smooth, cinematic shots with this Proaim 14' camera jib crane, offering superior stability.
  • Capture dynamic angles with a 270° tilt; this jib's robust build quality ensures lasting performance.
  • Enjoy versatile shooting lengths (12', 9') using this portable jib for various creative projects.
  • Set up quickly with the included jib stand, perfect for on-location shoots needing reliable support.
  • Confidently mount cameras up to 17.6 lbs; the weight capacity suits many professional setups.
  • Benefit from fluid horizontal/vertical movement, making your video production incredibly dynamic.

What's in the box:

  • 14' Jib Arm
  • Centre Post
  • Weight Shank with Closers
  • Weight Closers
  • Jib Stand
  • LCD Mounting Arm
  • Storage Bag
  • Proaim 1 Year Limited Warranty
