Just Reduced

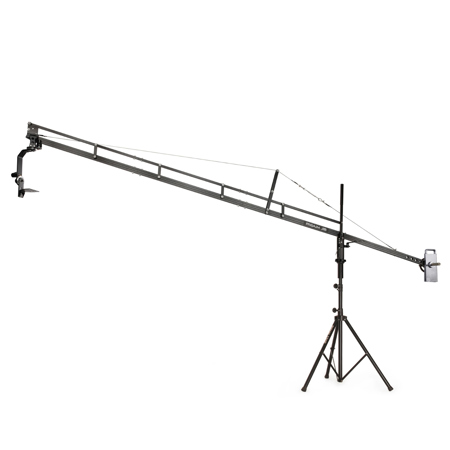

Proaim 14' Video DSLR Camera Jib Stand with Jr. Pan Tilt Head, Joystick Box

SKU: PAP14JSJRPP MFR: P-14-JS-JRPP
Earn VIP Reward Points

Key Features

  • Achieve cinematic shots with this 14' camera jib, offering smooth, professional movement.
  • Capture dynamic angles using the included Jr. pan tilt head with variable speed control.
  • The Proaim jib crane supports up to 17.6 lbs, perfect for DSLRs and smaller cameras.
  • Enjoy precise control with the 2-axis joystick, making complex camera moves easy.
  • This jib stand offers a height range up to 15', expanding your creative possibilities.
  • Built with CNC aluminum, this durable jib arm ensures stability for your valuable equipment.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Proaim Camera Jib Stand Specifications

Jib Crane

Jib Crane

Jump to...
  • Load Capacity

    Maximum: 17.6 lbs (8kg)

  • Material Used

    CNC made Aluminum Powder Coated

  • Jib Arm Shape

    Rectangle

  • Jib Arm Break downs into

    4 Parts

  • Length of Jib sections

    3.5' (1m) each

  • Camera Mount Bolt

    1/4"-20 and 3/8"-16

  • Variable shooting Lengths

    12, 9' (3.6, 2.7")

  • Jib Section Jointers

    Silver Aluminium

  • Bearing at Center Fork

    Pan Thrust bearing with washer made of stainless steel

  • Camera Tilt Angles

    Upto 270 degree

  • Locking Pin

    Stainless steel locking pin for stable or tilt camera angles

  • Pan Lock (For Jib)

    No

  • Tilt Lock (For Jib)

    No

  • Camera Mount plate

    Rectangle: 4.1 x 3.5" (10.5 x 9cm)

  • Camera Platform Levelling

    By stress cable: Stress Cable made of metal with adjusting turn buckle hook

  • Weight Holder Rod

    Made of MS Nickel chrome
    Length: 13.9" (355mm)
    Dia: 0.98" (25mm)

  • Weight Closures

    2pc. Made of MS Nickel chrome

  • Horizontal Movement

    Yes

  • Vertical Movement

    Yes

  • Horizontal/Vertical Movement Lock

    No

  • LCD Mount Provision

    Yes

  • Height Range from ground level

    15' (4.5m) (when stand height adjusted at 5')

  • Length from tripod to Camera Mount

    10.3' (3.1m)

  • Weight

    35 lbs (16kg)

Jib Stand

Jump to...
  • Material

    Aluminum, Black anodized

  • Features

    Safety Pin for Secure Pole

  • Base spread

    32 - 48" (81 - 122cm)

  • Height adjustment

    44 - 80" (111.7 - 203.2cm)

  • Completely collapsed height

    46" (117cm)

  • Outer Dia of top part of Stand

    2" (50mm)

  • Load Capacity

    200 lbs (90kg)

Jr. Pan Tilt Head

Jump to...
  • Material

    High Grade Aluminium

  • Load Capacity

    Up to 11 lbs (5kg)

  • Pan movement

    360 degrees

  • Tilt movement

    360 degrees

  • Speed

    Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec (high speed)
    Slowest Speed : 2 minutes
    Highest Speed : 7 seconds

  • Motors

    Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees

  • Gears

    2- Big Aluminum Gears (Dia-88mm)
    2- Small Brass Gears (Dia-13.5mm)

  • AC Adapter

    Input: AC 100 - 240V
    Output - DC 12V -2A

  • Cable Length

    24' (7.5m)

  • Cable Connector

    4-Pin XLR

  • Battery Cable

    9.8' (3m)

  • Height of head

    Minimum: 18.5" (47cm)
    Maximum: 22" (55.88cm)

  • Weight

    6.6 lbs (3kg)

Joystick Controller

Jump to...
  • Joystick Controller

    2-Axis

  • Connectors

    2x 4-Pin XLR male connectors

  • Pan/Tilt Direction

    Yes

  • Upgraded with

    Damping knob

  • Weight

    1.7 lbs (800g)

  • UPC Code

    718117847349

About Proaim Camera Jib Stand

Bring your videography to the next level with the Proaim 14ft Camera Jib Arm, a user-friendly and affordable jib that boasts a high build quality and a payload capacity of up to 8kg/17.6lb. This versatile jib crane is perfect for both indoor and outdoor use, providing professional, simple, and powerful solutions for your shooting needs.

Crafted from high-grade aluminum, the Proaim Crane is robust and functional, designed to accommodate a variety of shooting scenarios, including tight indoor spaces and expansive outdoor environments. Achieve detailed and dynamic shots with this lightweight camera crane system, which is designed for optimal performance with a small crew.

The 14ft Crane is equipped with fully ribbed sections for added strength, allowing for higher angle shots. Its adjustable metal wire system ensures superior stability, while the two-arm design enhances strength and stability. The jib arm also includes an ergonomic camera platform, SS locking pin, LCD monitor mounting arm, and weight closers, making it a comprehensive tool for any crane application.

The Jr. Pan-Tilt Head, complete with a 12V Joystick Control, offers 2-Axis Pan Tilt functionality, allowing for 360-degree pan and tilt movements. This feature provides the freedom to capture a wide variety of smooth shots. The Pan-Tilt Head is made from durable aluminum and can support up to 5 kg / 11 lb payload, making it suitable for DV/HDV and broadcast cameras.

The 12V Joystick Control, with its 24' long cable and AC adapter, offers intuitive control over pan/tilt movements, allowing you to take charge of speed and direction as needed. Its damping control ensures smooth endings, while the Dead Spot feature controls the sensitivity of the joystick on the pan tilt head, preventing unwanted movements.

The jib stand, made from CNC Aluminum, can carry loads up to 90kg/200lb, providing a solid foundation for the crane setup. This high-strength stand supports stable shots at all times.

The Proaim 14ft Camera Jib Arm is your perfect travel companion, designed for videomakers trekking through extreme environments in pursuit of the perfect shot. It comes in high-impact protective packing for safe transportation and storage of your valuable equipment. Unleash your creative vision with this small investment that delivers big returns.

Proaim Camera Jib Stand Features

  • User-Friendly & Affordable Jib
  • High Build Quality with Payload up to 8kg/17.6lb
  • Versatile Jib Crane for Indoor/Outdoor Use
  • Professional. Simple. Powerful

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve cinematic shots with this 14' camera jib, offering smooth, professional movement.
  • Capture dynamic angles using the included Jr. pan tilt head with variable speed control.
  • The Proaim jib crane supports up to 17.6 lbs, perfect for DSLRs and smaller cameras.
  • Enjoy precise control with the 2-axis joystick, making complex camera moves easy.
  • This jib stand offers a height range up to 15', expanding your creative possibilities.
  • Built with CNC aluminum, this durable jib arm ensures stability for your valuable equipment.

What's in the box:

  • 14' Video DSLR Camera Jib (P-14)
  • LCD Monitor Arm
  • Jib Stand (P-JS)
  • Jr. Pan Tilt Head with Joystick Box (PT-JR)
  • Universal Adapter
  • AC Adapter
  • Cable with Connector
  • Proaim Lanc Zoom Controller (P-ZC-3DV)
  • Storage Bag
  • Proaim 1 Year Limited Warranty
