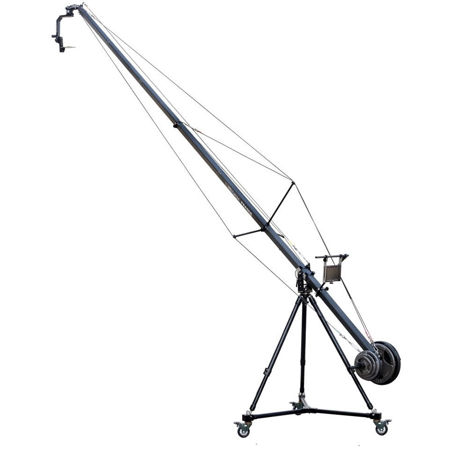

Proaim 20' Fraser Traveller Jib Production Package, 22.05 Lbs Jib Load Capacity

A new crane with 7 uniquely designed features focused on reducing setup time by 40% and ensuring ease of carrying!
The philosophy behind the new and unique design of the Fraser crane is to save your set up time so that you can channelize that energy & time into delivering perfect shots. The seamless fit between the dolly and the tripod, the perfect disc brakes on the fork, a convenient push-fit mechanism for the sections, a newly designed mounting of the pan tilt on the crane and a compact packing; everything has been designed keeping in mind the ease of carrying the crane and reducing the setup time.

Stronger. Lighter. Faster

Crane Section
The Aircraft Aluminum Crane Sections are ribbed, giving the structure 4x strength yet keeping the crane lightweight. Sections connect with each other quickly and easily by a tool-less push fit mechanism saving your valuable production time. Sections are powder coated which keeps it scratch free and making it elegant at the same time.

High Strength Stress Cables
The high strength stainless steel stress cables keep the crane setup completely rigid & straight. Cables get quickly connected to the crane with the easiest locking system which saves a lot of time. The stress cable also keeps the head plate parallel to the ground. To divide the load equally on all the stress cables, the rods of the stress cables have been kept at an angle of 120degrees from each other keeping the setup stable from every direction.

Freedom to Concentrate with New Features

Pan and Tilt Disc Lock
The disc lock enables the operator to move the crane on one axis when required or take completely static shots allowing you to concentrate on the shot and not worrying about unnecessary movements. The locks also provide protection for your equipment by securely locking the crane in place.

Self-Tilting LCD Mount
The LCD Mount comes with a self-tilting mechanism that keeps the monitor at eye level and hence enables the operator to view the monitor even when the crane is lifted totally upwards.

Dolly & Jib Stand
The jib-stand locks easily, safely & tightly into the dolly. Constructed from solid aluminum, the dolly & the jib-stand have an ample spread that pushes the center of gravity lower towards the ground providing a stable foundation for stable shots. The dolly gives you the flexibility to move the crane as & when required. Being telescopic, the stand's height can be adjusted according to shooting requirements.

Pan-Tilt Head Slide Mounting
Based on the principle of reducing setup time, the pan-tilt slide head mounting made quite easier & absolutely tool-less. In seconds, the head gets attached with the crane by sliding into the mounting of the crane smoothly & accurately. Just tighten the knobs & the head is safely mounted.

Pan-Tilt Head Leveling
The unique mounting also features a leveling feature so that you can level the head quickly after it has been mounted.

Technology That Lasts you a Lifetime!

PT-900 Pan Tilt Head
The technologically advanced 2-Axis Pan-Tilt Head has two Swiss-made Motors which provide the payload capacity of 5kg/11lb. The complete tools-free setup saves a lot of installation time. It is specially made for DSLR cameras. The signal transmitted between Main Control Box and Remote Head is serial digital signal. It enhances system reliability and control sensitivity. The high-strength aluminum & brass gears are engineered to withstand long hours of function and have minimum wear and tear. The remote head is compatible with Panasonic DV, Sony PMW and most Canon cameras..

Adjustable
A key feature that makes our remote head standout is the ability to adjust its camera basket height. This is fantastic for users that utilize different cameras for different jobs and for future compatibility.

Main Control box
Main Control box has speed control and separate direction knobs of Pan, Tilt and Zoom functions. You can turn off the Main Control Box to prevent accidents.

Damping Control
Damping is common for Pan & Tilt axis. It Calibrates Operation in 3 different modes-

Mode 1
When the pointer is at 7 o'clock - there is Delayed Movement with Smooth Start/Stop.

Mode 2
When the pointer is at 12 o'clock - there is Smooth Movement with Immediate Start/Stop.

Mode 3
When the pointer is at 5 o'clock - there is Real-Time Movement with Fast Start/Stop.

Reverse Directions
You can also reverse the Pan, Tilt, Zoom & Focus directions as & when required.

Head Control Handle
Head Control Handle controls 360deg. Pan and Tilt movement of the head. The green button accomplishes Recording function. The Black knob at the bottom performs ISO function while working with DSLR cameras.

Camera Lens Control Handle
Camera Lens Control Handle has Zoom, Focus & Iris controls. The green button accomplishes Zoom In/Out function. The Black knob at the bottom performs Focus function while working with DSLR cameras. The yellow Display button is to click picture. All these functions will be performed when FN button is positioned on top.

A Crane that travels with you!

Packaging
A giant structure that helps you capture wonderful shots & yet fits into a foam padded bag & a bag pack, making it easy for you to carry along anywhere.
