PanaVise Jr. Vacuum Base Pv

SKU: PAV209 MFR: 209
$31.49
$34.99
Save: $3.5 (10%)
Earn VIP Reward Points

Key Features

  • Enjoy secure mounting on smooth surfaces with this PanaVise Jr. vacuum base.
  • Achieve optimal angles with the 360-degree rotation of this versatile mount.
  • Durable build ensures this suction mount withstands daily photography tasks.
  • Easily adjust your equipment with the independent arm adjustability feature.
  • This PanaVise Jr. vacuum base offers strong suction for steady shots every time.
  • Vibration dampening ensures clear images using this reliable photography support.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

PanaVise Base Pv Jr. Specifications

  • Split-ball adjustability

    Rotation: 360 deg.
    Turn: 360 deg.
    Tilt: 210 deg.

  • Independent arm adjust ability

    140 deg.

  • Continuous heat tolerance

    Up to 350 deg. F (177 deg. C)

  • Intermittent heat tolerance

    Up to 450 deg. F (232 deg. C)

  • Vise opening

    Up to 73mm (2.87")

  • Jaw width

    1" (25.40mm)

  • Jaw height

    2" (50.80mm)

  • Base diameter

    86.4mm (3.40")

  • Height

    173mm (6.81")

  • Weight

    0.8 lbs (0.36kg)

  • UPC Code

    729315209006

About PanaVise Base Pv Jr.

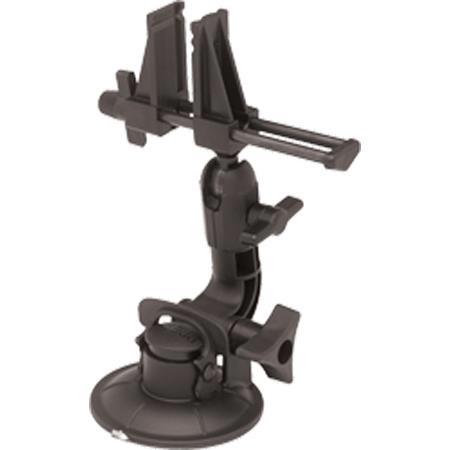

Overcome your work-holding challenges with the PanaVise 209 Vacuum Base PV Jr., a versatile and portable tool designed for light-duty applications. Ideal for a variety of projects such as electronics, hobbies, field repairs, model making, and jewelry crafting, this compact vise offers a robust solution for securing small items on smooth, flat, non-porous surfaces.

The PanaVise 209 Vacuum Base PV Jr. features a unique "split-ball" adjustment mechanism, controlled by a single knob, enabling head movement across three separate planes. This allows for a comprehensive range of positions, including a 210-degree tilt and 360-degree turns and rotations, providing you with the flexibility to work from virtually any angle.

The vise's rubber base, measuring 3-3/8" (86.4 mm) in width, is equipped with an integrated lever that, when flipped downwards, creates a powerful vacuum action. This secures the tool and the item held within its jaws, whether on horizontal or vertical planes.

The vise head assembly, constructed from durable, heat-tolerant materials, is capable of withstanding continuous heat up to 350 degrees F (177 degrees C) and intermittent heat up to 450 degrees F (204 degrees C). This makes it an excellent choice for tasks involving soldering, such as circuit board wiring and jewelry making.

The vise's jaws, made of reinforced thermal composite plastic, measure 2" (50.8 mm) tall x 1" (25.4 mm) wide and open to 2-7/8" (73 mm). The inner edges of the jaws feature grooves designed for reliable holding power, ensuring your workpiece stays secure. For delicate work, the fine/coarse adjusting knob allows you to control the jaw pressure, and an optional padded accessory (sold separately) can be used for holding extremely delicate items.

With the PanaVise 209 Vacuum Base PV Jr., you can easily adjust your workpiece into virtually any position, eliminating the need to adjust the overall position of your workstation. This compact, portable vise is a must-have tool for any hobbyist or professional in need of a reliable, flexible work-holding solution.

PanaVise Base Pv Jr. Features

  • The easy-to-use single knob controls head movement through 3-planes: 210 Degree Tilt, 360 Degree Turn & 360 Degree Rotation
  • Fine/coarse adjusting knob controls jaw pressure for delicate work
  • Grooved jaws are excellent for holding small objects and are made of reinforced thermal composite plastic [continuous heat tolerance to 350°F (177°C), intermittent heat up to 204 Degree C (450 Degree F)]
  • Jaws are 2" (50.8mm) tall, 1" (25.4mm) wide, and open to 2.875" (73mm)
  • Arm movement is 140°; positive indents control movement to prevent "flopping"; the control knob locks the arm firmly into place
  • Lever locks vacuum pad into place on any smooth, flat, non-porous surface; lift tab to release vise from surface

Key Features

  • Enjoy secure mounting on smooth surfaces with this PanaVise Jr. vacuum base.
  • Achieve optimal angles with the 360-degree rotation of this versatile mount.
  • Durable build ensures this suction mount withstands daily photography tasks.
  • Easily adjust your equipment with the independent arm adjustability feature.
  • This PanaVise Jr. vacuum base offers strong suction for steady shots every time.
  • Vibration dampening ensures clear images using this reliable photography support.

What's in the box:

  • PanaVise 209 Vacuum Base Pv Jr.
  • User's Manual
  • PanaVise Lifetime Limited Warranty
