This item is no longer available.

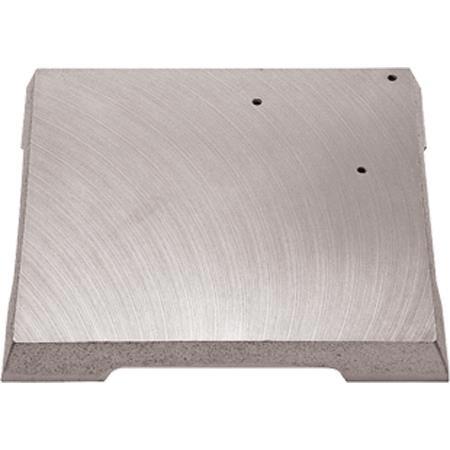

The PanaVise 310 surface plate base mount is an effective vise mounting solution that provides dependable portable stability for a variety of PanaVise work-holding products, as well as an extended level work area for items and additional tools. The base mount is forged in a single piece of precision cast iron (Blanchard ground), measures 10-3/4" x 10-3/4" across its top surface, is 1-1/4" tall and weighs 10 lb. Three pre-drilled holes are aligned in a triangle pattern in one of its corners. This hole pattern makes the PanaVise 310 compatible with the PanaVise 201 PV Jr. vise, the PanaVise 300 and 305 bases and associated vise combination products. The combination of the corner orientation of this mounting position, along with the 10 lb. weight of the base provides the dependable, non-tipping stability sufficient for most small-medium sized vise applications.
The slightly raised position onto four legs provides convenient gripping points for maneuvering the base and allows flipping to add or remove compatible work-holding tools. Four non-marring, anti-skid pads are included for the bottom of the legs to prevent scratching of work surfaces.
