PanaVise Micrometer Stand Combination for Workbench

Where precision and stability are paramount, the PanaVise 391 Micrometer Stand Combination for Workbench stands out as an indispensable tool. This specialized work-holding bundle is meticulously designed to offer a secure, stable, and easily adjustable platform for using delicate micrometer measuring devices.

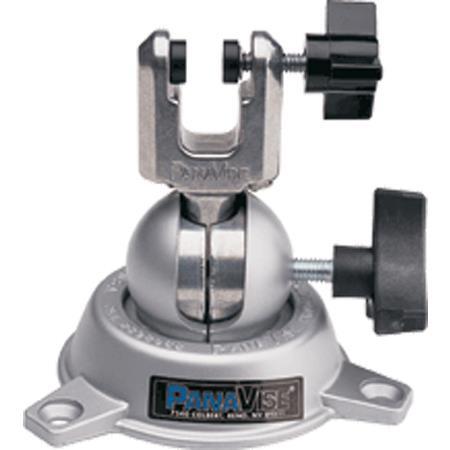

The PanaVise 391 Micrometer Stand features the robust PanaVise 385 Micrometer Head and the sturdy PanaVise 305 Low-Profile Base. This combination ensures a reliable and efficient work environment for precise measurements. The stand's unique ability to securely hold circuit boards and other small items, along with its load control knob, allows for adjustments along three separate planes - tilt, turn, and rotate.

The micrometer's Delrin-lined jaws not only hold circuit boards and other items securely but also contribute to the accuracy of measurements. The low-profile base keeps the held items close to the workbench, enhancing user comfort and control. The innovative "split-ball" feature controls head movement through three separate planes, ensuring precise positioning every time.

The PanaVise 391 Micrometer Stand is compatible with all 300 series vise heads or any accessory with a 5/8" diameter shaft. It can stand alone or be mounted to a workbench or base mount via a countersunk bolt circle, offering versatility in any workspace.

The PanaVise 385 Micrometer Head, standing at 3-1/8" tall and weighing 0.23 lb., mounts to the PanaVise 305 Low-Profile Base with a 5/8" shaft. The head features a side twist jaw lined with two thermoplastic Delrin pads, which open from 0 - 1/2", ensuring high stiffness and low friction for accurate readings.

The PanaVise 305 Low-Profile Base, with a height of 2-1/2" and a base diameter of 4-5/16", allows users to keep items comfortably close to the workbench. It can be secured to a work surface with 1/4" flat head screws or stand alone, thanks to its weight of 1.3 lb.

The PanaVise 391 Micrometer Stand's "split-ball" functionality allows for maneuvering along three separate planes with a single-load control knob. This range of mobility, including a 90-degree tilt to the side and a 360-degree rotation, allows users to position items in any desired orientation, reducing the need for constant adjustments.

Although the PanaVise 391 Micrometer Stand comes with the 385 Micrometer Head, it is designed to be compatible with a range of vise heads, including all PanaVise 300 series vise heads and any with a 5/8" diameter shaft. This compatibility allows users to expand their work-holding tool's capabilities as needed, making the PanaVise 391 Micrometer Stand a versatile addition to any workbench.
