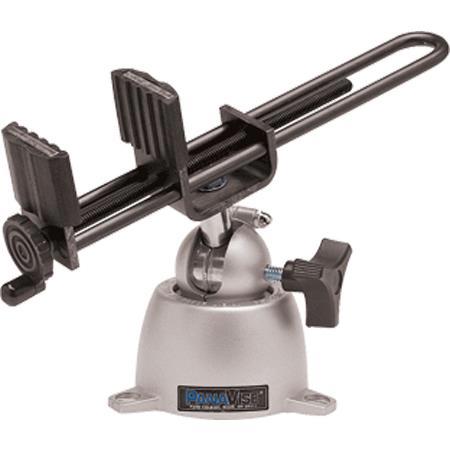

PanaVise Wide Opening Head

Let the PanaVise 396 Wide Opening Head Work-Holding Tool revolutionize your work process with its robust and reliable design. This heavy-duty tool is specifically engineered to securely hold larger and heavier objects, making it an indispensable asset for tasks involving drilling, milling, and other machining operations.

The PanaVise 396 features a sturdy head that can open up to a generous 6 inches, providing ample space for precise adjustments. The head is complemented by removable neoprene jaw pads, which are ribbed on one side and feature a wide 'V' notch on the other, allowing for versatile handling of both flat and round objects.

This durable work-holding tool is built on the PanaVise 300 standard base, known for its compatibility with a variety of tool and vise head options. The base is designed to accept all 300 series vise heads or any 5/8" diameter shaft, offering you the flexibility to customize your setup according to your specific needs.

One of the standout features of the PanaVise 396 is the PanaVise "split-ball" functionality. This innovative feature utilizes single-knob controls for head movement across three separate planes - tilt, turn, and rotate. With a 90-degree tilt, 360-degree rotation, and 360-degree angled turn, you can effortlessly maneuver your work item into any position without having to adjust the overall position of your workstation.

The PanaVise 396 Wide Opening Head Work-Holding Tool is a combination of two PanaVise components: the 366 wide opening vise head and the 300 standard base. The 366 vise head measures 11" in length and can open up to 6" with neoprene pads attached (6-1/4" with pads off). The body of the head above the stem is coated with black oxide to reduce glare from overhead work lights.

The PanaVise 300 standard base stands 3-3/4" tall with a 4-5/16" footprint and weighs 1.4 lb. To secure the entire unit to a workbench or an optional base mount, the 396 features a bolt circle at the bottom edge of the base, which is countersunk for three 1/4" flathead screws.

While the PanaVise 396 is primarily intended for use with the included 366 wide opening vise head attachment, it also offers compatibility with a range of other vise head accessories, making it a versatile addition to any workspace. Experience the difference of a high-quality, reliable work-holding tool with the PanaVise 396 Wide Opening Head.
