About Panavise CCTV Micro Angle Mount - Black

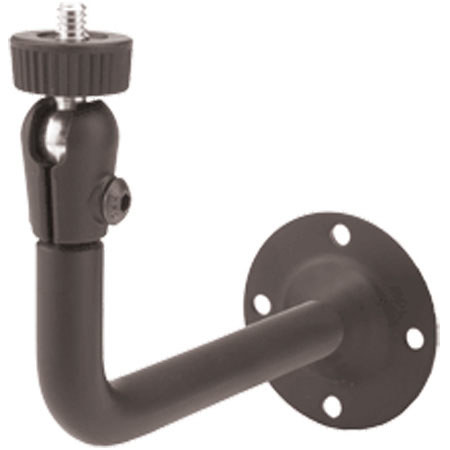

The black Angle Micro Mount from PANAVISE is an L-shaped mount that mounts your CCTV camera 4" from the wall. It features a 1/4"-20 thread mount with a lock ring for a secure attachment. Camera positioning is simple thanks to the mount's ability to tilt up to 190° and turn and rotate 360°. Included are knob and tamper-resistant set-screws for a secure setup.
Panavise CCTV Micro Angle Mount - Black Features
846L Angle Micro Mount Black
Another Great Choice for the Perfect Camera Installation!
For specialty installations that require a 90 degree bend!
0.5" (12.7mm) diameter solid steel shaft
Length of mount from base to front of mount: 4.0" (102mm)
Length of mount from bottom of angle to top of mount: 3.375" (85.7mm)
1/4-20 stud with lock-ring; adjustable at the camera (190 degree Tilt, 360 degree Turn & 360 degree Rotation)
Knob and tamper-resistant set-screw adjusting options included
Matching vinyl cover adds a finished look!
2" (50.8mm) round base with four 0.188" (4.8mm) holes on 1.6" (40.6mm) bolt circle
