Proaim Airwave XL Shock Absorber Arm for Camera Gimbals, 66-143 Lbs Capacity

The Proaim Airwave XL Shock Absorber Arm with dual spring configuration (two springs on each side), is the biggest of our Vertical Vibration Isolator arms. Our precision engineered system will accommodate payloads of 30-65kg (66-143 lbs), making it suitable for Remote Pan Tilt heads and any 3-Axis Gimbal system like DJI Ronin, MoVI and Shotover G1. It is custom designed to reduce vibration typically experienced when shooting from moving platforms on rough terrain or paved roads.

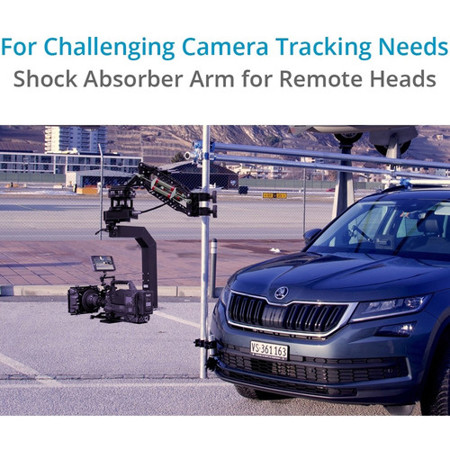

A finely balanced system of adjustable springs and hydraulic dampers give you a stable platform to achieve perfect results. It's a hard mount system, made for gimbals that you want to mount on vehicles such as cars, ATVs, boats, snowmobiles etc. The best results are achieved when used with the Vibration Isolator (sold separately).

Gimbal Mounting Options
There are two ways to attach your gimbal to the Airwave XL Arm. The L-Plate matches with Universal Ronin / MoVI mount for easy attachment of MoVI and Ronin Gimbals. Another option is Mitchell female mount for gimbals that uses the Mitchell Castle Nut with Ronin mount.

OVERSLUNG / UNDERSLUNG
The Airwave XL Arm connects to Mitchell plates and can mount either under or over slung as well as allowing the stabilized head to mount under or over slung.

Assembly Options
The Airwave XL Arm is fast to rig. It offers the option of Mitchell or Scaff mount systems depending on your preference. The Arm clamps on to a standard 38-65mm Pole. Simply clamp the Arm on Pole / Speed rail / Scaffold Mount (Optional) with two scaff clamps at the back of arm. You can even mount it directly onto the Mitchell Tripod stand via Mitchell configuration.
