Panasonic 300StudioPlus Camcorder Studio System

SKU: PC300STUDIOP

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Panasonic 300StudioPlus Camcorder Studio System Specifications

  • Camera Adapter: Input Connectors

    SDI: BNCx1
    BS: BNCx1
    DC: 5-pin
    Return Ctrl: 6-pin
    Battery: 2-pin

  • Camera Adapter: Output Connectors

    BS: BNCx1
    Genlock: BNCx1
    Remote: 10-pin
    Incom: XLRx1, 5-pin female
    VF: 15-pin Dsub
    Return: BNCx1
    DC: 2-pin

  • Camera Adapter: Hard Disk Space

    Input:
    24VDC, 4A
    12VDC, 6A
    Output:
    13VDC, 5A

  • Digital Base Station: Input Connectors

    Incom/Tally: 9-pin Dsub
    CA: BNCx1, from AG-CA300G
    Return Video: BNCx1
    Genlock: BNCx1
    DC 12V: XLRx1, 4-pin
    AC
    Remote: 10-pin

  • Digital Base Station: Output Connectors

    SDI: BNCx2
    Video: BNCx1
    CA: BNCx1
    Genlock Loop: BNCx1
    DC 24V: 5-pin
    Incom: XLRx1, 5-pin female

  • Digital Base Station: Hard Disk Space

    Input:
    100 - 240VAC, 50/60Hz, 1.6A - 0.6A
    12VDC, 1.1A
    Output:
    13VDC, 5A
    13VDC, 0.3A (Remote Power)

  • Remote Control: Inputs/Outputs

    Camera: 10-pin multi-connector
    Monitor: BNC x 1, 1 Vp-p (for menu setting)

  • Remote Control: Hard Disk Space

    12VDC

  • Remote Control: Power Consumption

    6W

  • Remote Control: Operating Temperature

    0deg. - 40deg.C (32deg. - 104deg.F)

  • Dimensions (W x H x D)

    Camera Adapter: 6.7 x 5.75 x 4.19" (17.01 x 14.6 x 10.64 cm)
    Digital Base Station: 17.06 x 1.75 x 14.19" (43.3 x 4.45 x 36.1 cm)
    Remote Control: 7.3 x 5.2 x 2.6" (18.5 x 13.21 x 6.6 cm)

  • Weight

    Camera Adapter: 3 lbs (1.36 kg)
    Digital Base Station: 11 lbs (4.98 kg)
    Remote Control: 2.87 lbs (1.3 kg)

About Panasonic 300StudioPlus Camcorder Studio System

The Panasonic 300StudioPlus offers expanded remote control capabilities to the basic 300Studio package. It includes the compact digital Base Station (AG-BS300) and lightweight camera adapter (AG-CA300G) and replaces the standard extension control unit with the advanced AJ-RC10 remote control, which provides more sophisticated control options including the ability to save and recall scene files. The AJ-RC10 remote control unit can also be extended to longer distances up to 90 m (approximately 295 ft) with optional cables.

The AG-BS300 digital base station, which features two HD/SD SDI outputs and a composite video output, connects with the AG-CA300G camera adapter via optional studio cables, available in 100 m (approximately 328 ft), 50 m (approximately 164 ft) and 25 m (approximately 82 ft) lengths.

Panasonic 300StudioPlus Camcorder Studio System Features

  • Optional cables for AJ-RC10 remote control unit available in lengths of 30, 60 or 90 meters
  • Optional accessories include the 300LenReturn cable, which enables access to return video for framing shots, a range of studio cables, shelf rack kit and rack unit
  • Optional battery plate required when using local battery sources (Anton Bauer, IDX, etc.)
  • The AG-CA300G Camera Adapter, lightweight and compact, mounts directly on the back of the camcorder, boosts mobility and allows the use of various professional batteries (with optional battery plate)
  • The AJ-RC10 is an advanced remote control unit that offers enhanced controls of the system's base station, along with an extended range of up to 90 meters (295 feet) with optional cables

Key Features

  • Optional cables for AJ-RC10 remote control unit available in lengths of 30, 60 or 90 meters
  • Optional battery plate required when using local battery sources

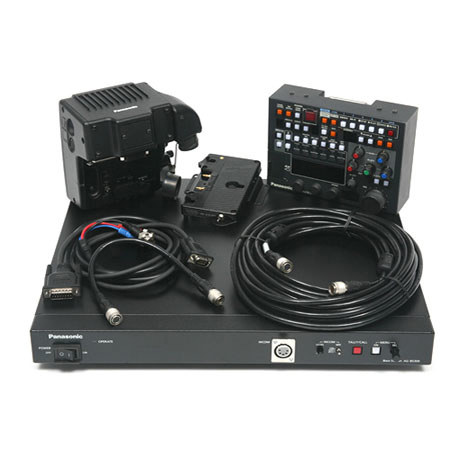

What's in the box:

  • Panasonic AG-CA300GPJ Camera Adaptor
  • AG-BS300PJ Digital Base Station
  • AJ-RC10 Remote Control
  • Panasonic 1 Year Warranty
  • Cables
