Review Summary
47" (1193.8mm)
IPS/Direct LED
1039 x 584 mm (40.91" x 22.99")
1920 x 1080 pixels
500 cd/m2
1400:1
500000:1
178 deg./178 deg.
Approx.60,000 hours (Backlight half-life)
Anti-glare Treatment (Haze 10 %)
1x BNC, 1x Pin Jack (set) (Shared with Component In)
1x HDMI Type A
1x BNC set, 1x Pin Jack (set) (Shared with Video In)
1x DVI-D 24-pin, 1x Stereo Mini Jack (M3) (Shared with PC In)
1x Mini D-Sub 15-pin, 1x Stereo Mini Jack (M3) (Shared with DVI-D In)
1x DVI-I 29-pin, 1x Pin Jack (set)
D-Sub 9-pin x 1/x 1, RS-232C Compatible
1x RJ45 (Web browser control only)
1x Input, 1x Output
8 Ohms 20W (10 W + 10 W)
110-127 V AC/220-240 V AC, 50/60 Hz
160 W
Approx. 0.3 W
Approx. 0.5 W
3.2mm (0.12") [Left/Top], 1.7mm (0.07") [Right/Bottom]
4.9mm (0.19") [Multi-Screen]
0 deg. to 40 deg. C / 32 deg. to 104 deg. F
10 % to 90 %
41.2 x 23.3 x 4.3" / 104.64 x 59.18 x 10.92cm
55.1lbs / 24.99kg (Approx.)

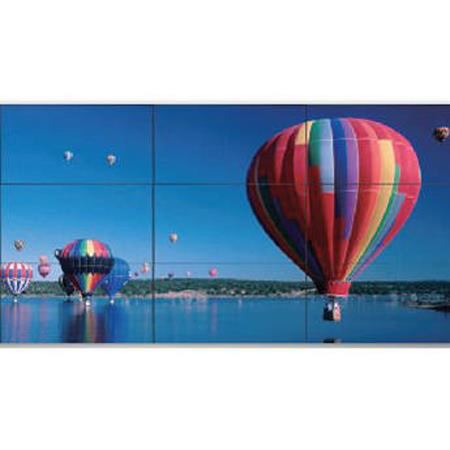

The Panasonic TH-47LFV50U 47" 3x3 1080p LED Display Video Wall Bundle lets you choose the video wall size to match your installation conditions. The AG layer scatters light reflected from the sun or illumination to reduce glare. This provides greater visibility. It is ideal for use in surveillance stations and public facilities. The black reproduction is maintained in dark areas while bright areas are displayed more brightly to achieve a high level of contrast. The IPS panel has a wide viewing angle, so colors don't change when the image is viewed from right or left angles. Information can be accurately relayed to groups of people in large areas, like public spaces.
The super-narrow bezel results in joints that are only 4.9mm (0.19") wide for video wall installations. Even in large-screen configurations, the screen borders can barely be seen, so images are powerful and natural. The Multi-Display function enlarges images up to five times their original size, both vertically and horizontally. It enlarges images by the same zoom ratio in both vertical and horizontal directions, such as 3x3 in order to effectively use vertically or horizontally elongated spaces. LCD display versatility can be further enhanced by freely selecting the zoom ratio to match the installation space. The use of a highly durable panel and electronic components allows continuous 24-hour operation, ideal for installation in public places, surveillance stations, etc. A built-in cooling fan automatically operates (when set to Auto) depending on the temperature. This prevents overheating in the upper screens of a multi-screen installation, which are easily subject to heating.
