Panasonic AG-AC130A Camcorder with Switronix Battery, Charger, Shoulder Mount
See all Panasonic items

Panasonic AG-AC130A AVCCAM 1/3" Handheld Production Camcorderer - Bundle - with Switronix XP-L90A 90wh Li-Ion Brick Style Battery, 48" Connecting Cable, Switronix Power Tap Charger, and Switronix HDV PRO Camera Shoulder Support

SKU: PCAGAC130APC

This item is no longer available.

Recommended Alternatives

Panasonic AG-CX20: Picture 1 regular
Panasonic AG-CX20 4K Ultra HD Compact Professional Camcorder, Black
$3,378.15$3,050.00
Panasonic AG-CX350: Picture 1 regular
Panasonic AG-CX350 4K Camcorder
$5,269.91$5,269.00
Panasonic AJ-PX380G: Picture 1 regular
Panasonic AJ-PX380G Camcorder Body
$8,395.00$6,300.00
Panasonic AJ-PX5100: Picture 1 regular
Panasonic AJ-PX5100 HDR-Ready Shoulder-Mount ENG Camera
$25,000.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Panasonic AG-AC130A Specifications

  • Image Device

    3x 1/3-type progressive 2.2 Mp CMOS
    Prism color separation

  • Lens

    22x optical zoom - 2x, 5x, 10x digital zoom - 3.9-86mm (28-616mm 35mm equivalent) - f/1.6-3.2 - 18 elements in 12 groups

  • Minimum Object Distance (M.O.D.)

    Approx. 3.3' (1 m)

  • Filter Diameter

    72mm

  • Minimum Illumination

    0.4 lux (f/1.6, gain +30 dB, shutter speed 1/30 second)

  • Signal System

    NTSC

  • Built-in Filters

    ND filter: OFF, 1/4, 1/16, 1/64

  • LCD Monitor

    3.45" (87.63mm) color LCD monitor with approx. 921K dots (16:9)

  • Viewfinder

    0.45" (11.43mm) color LCoS monitor with approx. 1226K dots (16:9)

  • Memory Card Slot

    2x SD/SDHC/SDXC slots

  • Shutter Speed

    60i mode: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 second - 30p mode: 1/30, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second - 24p mode: 1/24, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second

  • Slow Shutter

    60i mode: 1/8, 1/15, 1/30 second - 30p mode: 1/8, 1/15 second - 24p mode: 1/6, 1/12 second

  • Synchro Scan Shutter

    60i mode: 1/60.0 to 1/249.8 second - 30p mode: 1/30.0 to 1/249.8 second - 24p mode: 1/24.0 to 1/249.8 second

  • Shutter Opening Angle

    3-359.5deg. in 0.5deg. increments

  • Frame Rates

    24, 30, 60 fps

  • Gain Selection

    0/+3/+6/+9/+12/+15/+18/+24/+30 dB (+24 dB, +30 dB: USER button S.GAIN only)

  • Recording Media

    SD memory card (FAT12, FAT16 formats supported): 512 MB, 1 GB, up to 2 GB - SDHC memory card (FAT32 format supported): 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 32 GB - SDXC memory card (exFAT format supported): 48 GB, 64 GB (up to 2 TB)

  • Recording Formats

    AVCHD standard (MPEG-4 AVC/H.264), DV standard (AVI Type2)

  • Maximum Recording Time

    With 2x 64 GB SDXC cards: Approx. 12 hours in PH (highest-quality AVCHD); 48 hours in HE mode (lowest-quality AVCHD); 8.5 hours in DV mode

  • Video Signals

    PH mode: 1080/59.94i, 1080/29.97p, 1080/23.98pN, 720/59.94p, 720/29.97p, 720/23.98pN
    PM mode: 720/59.94p
    HA/HE mode: 1080/59.94i
    DV mode: 480/59.94i, 480/29.97p, 480/23.98p

  • Sampling Frequency

    4:2:0 (AVCHD)
    4:1:1 (DV)

  • Video Compression

    MPEG-4 AVC/H.264 (AVCHD)
    DV (DV)

  • Video Bitrates

    PH mode: Approx. 21 Mb/s (VBR)
    PM mode: Approx. 8 Mb/s (VBR)
    HA mode: Approx. 17 Mb/s (VBR)
    HE mode: Approx. 6 Mb/s (VBR)

  • Interval Recording

    1 sec / 10 sec / 30 sec / 1 min / 2 min interval, maximum 168 hours (1 week) recording (PH 1080/24p mode is fixed)

  • Audio Signal

    Dolby Digital 2-channel (AVCHD)
    48 kHz/16-bit, Linear PCM 2-channel (DV)

  • Audio Bitrates

    PH mode: 384 kb/s
    PM/HA/HE mode: 256 kb/s

  • Speaker

    1x 20mm diameter

  • Video Outputs

    HDMI: 1x HDMI Type A, VIERA Link not supported
    Composite Video: 1x Pin jack, 1.0 V [p-p], 75 ohm

  • Audio Input

    2x XLR 3-pin (input 1, input 2)
    Line/Mic/+48V switchable
    Line: 0 dBu
    Mic: -40 dBu / -50 dBu / -60 dBu switching via menu
    Built-in Mic In supports stereo microphones

  • Audio Output

    2x pin jack (channel 1 / channel 2), 316mV, 600 ohm output
    1x 3.5mm diameter stereo mini jack for headphones
    Via HDMI: 2-channel (linear PCM) & 5.1-channel (Dolby Digital)

  • Other I/O Connections

    Time Code Preset In/Out: Via Composite Video Out dual-purpose (In: 1V [p-p] to 4V [p-p], 10 k-ohm; Out: Low-impedance, 2.0+/-0.5V [p-p])
    Camera Remote: 1x 2.5mm diameter super mini jack (zoom, shutter speed); 1x 3.5mm diameter mini jack (focus, iris)
    Index Remote: 1x 2.5mm diameter super mini jack
    IEEE 1394: 1x 6-pin, digital output only
    USB 2.0 (Device): 1x Type Mini B, 4-pin USB 2.0

  • Power Requirements

    7.2V DC via battery
    7.3V DC via AC adapter

  • Power Consumption

    11.6W when recording

  • Operating Temperature

    0 to 40 Deg.C (32 to 104 Deg.F)

  • Operating Humidity

    10-80% (no condensation)

  • Dimensions (W x H x D)

    7 x 7.69 x 17.25" (180 x 195 x 438mm) excluding protrusions

  • Weight

    5.3 lb (2.4 kg) Camcorder main body only

  • UPC Code

    846431074148

8 Accessories for Panasonic AG-AC130A AVCCAM 1/3" Handheld Production Camcorderer - Bundle - with Switronix XP-L90A 90wh Li-Ion Brick Style Battery, 48" Connecting Cable, Switronix Power Tap Charger, and Switronix HDV PRO Camera Shoulder Support

  • All Accessories (8)
  • Bags & Cases (3)
  • Filters (1)
  • Headphones (1)
  • Microphones & Audio (1)
  • Zoom & Focus Control (2)
Porta Brace DVO2U DV Organizer Field Production Bag
Porta Brace DVO2U DV Organizer Field Production Bag
$313.37
camRade Run and Gun Large Bag for Professional Cameras Up to 23.62"
camRade Run and Gun Large Bag for Professional Cameras Up to 23.62"
$229.00
CamRade run&gunBackpack for Up to 20.47" Professional Cameras, Large
CamRade run&gunBackpack for Up to 20.47" Professional Cameras, Large
$249.00
ProOPTIC Pro Digital 72mm Multi Coated UV Ultra Violet Filter
ProOPTIC Pro Digital 72mm Multi Coated UV Ultra Violet Filter
$13.95
Sony MDR-7506 Professional Folding Headphones
Sony MDR-7506 Professional Folding Headphones
$99.99
Panasonic AGMC200G Super-Directional Phantom Mic
Panasonic AGMC200G Super-Directional Phantom Mic
$499.95
Panasonic Control w/Rocker, Start-Stop & Focus & Iris Controls, made by Vari
Panasonic Control w/Rocker, Start-Stop & Focus & Iris Controls, made by Vari
$235.00
VariZoom PFI Focus and Iris Control, Panasonic Cameras
VariZoom PFI Focus and Iris Control, Panasonic Cameras
$146.06

About Panasonic AG-AC130A

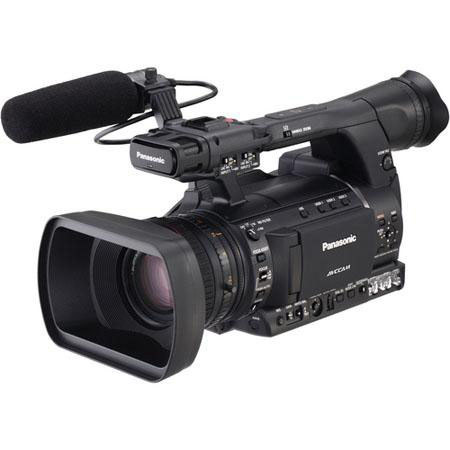

The Panasonic AG-AC130A is an upgrade version of the AG-AC130 camera. In addition to all the features of the AG-AC130, this AG-AC130A adds an expanded focus assist functionality and a "turbo speed" one-push auto focus function.

The AG-AC130A AVCCAM HD handheld camcorder offers a high-sensitivity 1/3", full-HD 2.2 megapixel U.L.T. (Ultra Luminance Technology) 3-MOS imager to capture native 1920 x 1080 or 1280 x 720 AVCHD utilizing the MPEG-4 AVC/H.264 codec. Coupling a 22x zoom lens with three independent adjustable rings (zoom, focus and iris), recordings look clean and crisp, without image degradation or dropouts and cover most shooting situations without the need for a wide-angle conversion lens.

The AC130A records video in four professional AVCCAM HD recording modes, including the highest-quality PH mode (average 21 Mbps/Max 24Mbps), the HA mode (approx.17 Mbps), the extended recording HE mode (approx. 6 Mbps) and a PM mode (approx. 8 Mbps, 720p only), which is ideal for shooting sports training and web video. With two SD Memory Card slots for relay or simultaneous recording, the AC130A can record up to 12 hours on two 64GB SD cards in PH mode, with automatic clip spanning across the two cards. In addition to SDXC and SDHC cards, the AC130A supports Panasonic's new SDHC full Class 10 UHS-1 (Ultra High Speed) Memory Cards, with transfer rates of 90MBs - 4-1/2 times as fast as the previous generation of SDHC media.

Panasonic AG-AC130A Features

  • Adorama Camera Valuable Bundle. Kit Includes.
  • Panasonic AG-AC130A Camcorder, CGA-E/625 7.2V Battery, AC Adaptor, AC Cable, DC Cable, Wireless Remote Control, Terminal Caps (2), Lens Cap, Lens Hood, Hand Strap, Button-Type Battery (Remote), Microphone Holder, Microphone Holder Screws (4), Microphone Holder Adaptor, Eye Cup, Shoulder Belt, Panasonic 1 Year Warranty.
  • XP-L90A 90wh Lithium-Ion ION Brick Style Battery with 3-Stud Mount, 14.4v, 6.3Ah with 4 LED Power Gauge.
  • HDV Camcorder XP Cable for Panasonic AG-AF100 / HMC40 / HMC70 / HMC80 / HMC150, 48" Length.
  • Power TAP Charger for PB70, PowerBase 70 Battery Pack.
  • HDV PRO Camera Shoulder Support.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • AG-AC130A Professional Camcorder
  • XP-L90A On-Board Battery
  • HDV Camcorder XP Cable
  • Power Tap Charger
  • HDV PRO Camera Shoulder Support

What's in the box:

  • Panasonic AG-AC130A Camcorder
  • Battery
  • AC Adapter
  • AC Cable
  • DC Cable
  • 2x Terminal Caps
  • Lens Cap
  • Lens Hood
  • Hand Strap
  • Wireless Remote Control
  • Battery
  • Microphone Holder
  • 4x Mic Holder Screws
  • Mic Holder Adapter
  • Eye Cup
  • Shoulder Belt
  • Panasonic 1 Year Warranty (2 Additional Years w/Online Registration)<br><b>Bundle</b>- Switronix XP-
  • Switronix 48 Connecting Cable
  • Switronix Power Tap Charger
  • Switronix HDV PRO Camera Shoulder Support
