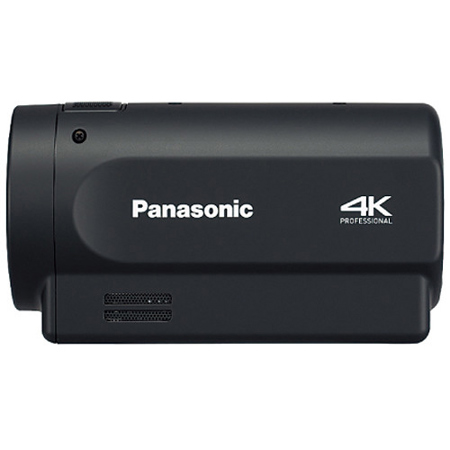

Panasonic Compact Camera Head for Memory Card Portable Recorder

SKU: PCAGUCK20GJ

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic Compact Head Specifications

  • Sensor

    1/2.3" MOS solid-state image sensor

  • Total Pixels

    Approx. 12.76 MP

  • Lens

    Zoom: Optical 20x motorized zoom

  • Aperture

    f/1.8-3.6

  • Focal Length

    f= 4.08-81.6mm
    35mm Conversion: 29.5-612mm
    (Hybrid OIS set to Off)

  • Filter Diameter

    49mm (1.9")

  • ND Filter

    Clear, 1/4, 1/16, 1/64 (built-in)

  • Minimum Focus Distance

    4.9' (1.5m) at zoom range
    1.2" (3 cm) at wide angle

  • IR Cut Filter

    Incorporates the On/Off control function

  • Zoom

    Zoom: 30x (HD), 22x (4K)
    Digital Zoom: 1.4x, 2x, 4x, 6x, 8x

  • Gain

    Automatic, Manual: 0-30 dB (1 dB step)

  • Super Gain

    33 dB, 36 dB
    In Auto mode, 3-30 dB (3 dB steps) can be selected with AGC limit setting

  • White Balance

    ATW, ATW LOCK, AWB A, AWB B, P3200K, P5600K, VAR (2000-15000K)

  • Shutter Speed

    59.94i/p Mode:
    1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

    29.97p Mode
    1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

    23.98p Mode:
    1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

  • Shutter Speed (Cont.)

    50i/50p Mode:
    1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

    25p Mode
    1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec.

  • Slow Shutter

    59.94i/p Mode:
    1/2, 1/4, 1/8, 1/15, 1/30 sec.

    29.97p Mode:
    1/2, 1/4, 1/8, 1/15 sec.

    23.98p Mode:
    1/2, 1/3, 1/6, 1/12 sec.

    50i/p Mode:
    1/2, 1/3, 1/6, 1/12, 1/25 sec.

    25p Mode:
    1/2, 1/3, 1/6, 1/12 sec.

  • Synchro Scan

    59.94i/p Mode:
    1/60-1/285.6 sec.

    29.97p Mode:
    1/30-1/206.5 sec.

    23.98p Mode:
    1/24-1/280.1 sec.

    50i/p Mode:
    1/50-1/209.2 sec.

    25p Mode:
    1/25-1/224.3 sec.

  • Minimum Illumination

    0.2 lux (slow shutter: 1/2 sec., gain: +36 dB)

  • Horizontal Resolution

    1300 TV (HDMI output of 2160p29.97 when 25p playback)
    1000 TV (HDMI output of 1080p59.94 when 50p playback)

  • Audio Input

    Built-in microphone (2-Ch stereo)

  • Connector

    20-pin dedicated interface for connecting to the AG-UMR20 Memory Card Portable Recorder

  • Power

    9 VDC (supplied from the AG-UMR20 Memory Card Portable Recorder)

  • Power Consumption

    0.6 A

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Operating Humidity

    10 to 80% (no condensation)

  • Dimensions

    2.5 x 2.8 x 5.1" (6.4 x 7.2 x 13cm) (excluding protrusion)

  • Weight

    Approx. 0.7 lb (325g)

  • UPC Code

    885170321076

About Panasonic Compact Head

High-Resolution, Progressive MOS Sensor
4K (UHD: 3840 x 2160) 29.97p/23.98p/25p, FHD (1920 x1080)59.94p/50p/23.98p image acquisition are newly supported.
HD image quality also dramatically improved.

• 29.5 mm Wide-Angle
Achieves wide-angle in spite of its compact size.

• Optical 20x zoom
Covers a range from 29.5 mm wide angle to 612mm close ups (35mm equivalent) for various applications.

• Intelligent Zoom (i.Zoom)
Allows shooting up to 30x in HD format (22x in 4K) with high resolution. Zooms in seamlessly from the optical tele-end.

• Digital zoom
This digital zoom ( x1.4/ x2/ x4/ x6/ x8) allows zooming without any change in brightness. Combining optical zoom + intelligent zoom enables zooming up to a maximum of 240x.(When using optical 20x zoom + i.Zoom + digital zoom 8x in HD format. The image quality decreases as the digital zoom magnification increases.)

Stable Images with the Five-Axis Hybrid Image Stabilizer

• Optical image stabilizer (HD/4K)
Equipped with a powerful optical image stabilizer (OIS) system. Images are strongly corrected even in situations where the camera is unstable, such as when mounted onto an arm.

• Five-Axis Hybrid Image Stabilizer (HD)
In HD mode, electronic image stabilization is added to the optical image stabilizer (OIS) system to detect and correct motions on five axes, including rolling motion. This is effective when shooting while walking.

Picture Adjustments like a High-End Cameras

• 16-Axis independent color correction
This function provides an independent effect to each of the 16 phases and saturation levels of video images. This fine color matching and rendering meet the needs of video production applications.

• Optical ND filter
The optical ND filter can be manually switched (CLEAR, 1/4, 1/16, 1/64). Resolution degradation from closing down the iris is prevented even in bright lighting.

• Shutter
The Slow Shutter and Synchro Scan functions are supported.

• Dynamic Range Stretch (DRS)
This function suppresses blocked shadows and blown highlights to produce excellent gradation for each shade when dark, bright and intermediate shades are all contained in the same scene.

• Gain/iris
The gain can be increased either with AUTO or 0 dB to 30 dB (in 1 dB units), plus super gain (33 dB/36 dB). Iris adjustment can also be adjusted independently from the gain.

• White balance
AWB A, B (two-value memory) / P3200K / P5600K /ATW / VAR (2000 K to 15000 K). A new Variable mode has also been added for a finer setting capability. This allows color reproduction to better match the shooting situation.

• Image adjustments
Detail, V-detail, Detail coring, Skin tone detail,Color temperature, Chroma level, Chroma phase, Matrix (Norm/Cinelike/Still-like), Master pedestal, Gamma (HD norm/Cine-like/Still-like), Black gamma, Knee, NR control

Versatile Camera Functions

• Auto Focus
High-speed, high-performance auto focus technologies enable speedy focusing, excellent tracking, and superb stability for higher-quality 4K images.

• Focus Assist
Focusing is aided by a Peaking Display (emphasizing in-focus areas by the use of coloring).

• Push Auto
Pressing the button during Manual Focus mode temporarily activates Auto Focus.

• Infrared (IR) Shooting mode
Helpful for nighttime observation and surveillance.

• Pre Rec
Constantly records video and sounds from approximately 3 seconds before ordinary recording starts, to prevent missing decisive moments.

• Rec Check
Plays approximately the last 3 seconds that were recorded for confirmation.

• Zebra
Select any two levels from among 50% to 105% in 5% steps.

• Filters supported
Commercially available lens filters (49 mm diameter) supported.

What's in the box:

  • Compact Camera Head for Memory Card Portable Recorder
  • Panasonic 1 Year Limited Warranty
