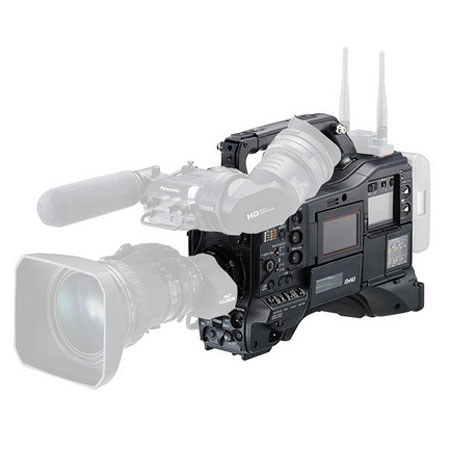

Panasonic AJ-HPX3100GJ 2/3" 2.2 megapixel P2 HD Camcorder
See all Panasonic items

Panasonic AJ-HPX3100GJ 2/3" 2.2 megapixel P2 HD Camcorder, Full Raster 1920x1080 Resolution, 4:2:2 10-bit Sampling, HD/SD-SDI

SKU: PCAJHPX3100
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Panasonic AG-CX20: Picture 1 regular
Panasonic AG-CX20 4K Ultra HD Compact Professional Camcorder, Black
$3,378.15
Panasonic AG-CX350: Picture 1 regular
Panasonic AG-CX350 4K Camcorder
$5,269.91$5,269.00
Panasonic HC-V900: Picture 1 regular
Panasonic HC-V900 Full HD Camcorder
$849.99
Panasonic HC-VX3: Picture 1 regular
Panasonic HC-VX3 4K UHD Camcorder
$999.99$997.99
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Panasonic AJ-HPX3100GJ Specifications

  • CCD Elements

    CCD Elements: CCD x 3 (2/3-type interline transfer type, RGB, 2,200,000 pixel)

  • Picture Elements

    Total: 2010 (H) x 1120 (V)

  • Lens Mount

    2/3-bayonet type

  • Optical Color Separation

    Prism system

  • CCl Filters

    A: 3200K, B: 4300K, C: 5600K, D: 6300K

  • ND Filters

    1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND

  • Quantizing

    14 bits

  • Horizontal Drive Frequency

    59.94 Hz: 74.1758 MHz, 50 Hz: 74.25 MHz

  • Sampling Frequency

    59.94 Hz: 74.1758 MHz, 50 Hz: 74.25 MHz

  • Digital Signal Process

    59.94 Hz: 74.1758 MHz, 50 Hz: 74.25 MHz

  • Programmable Gain

    -6 dB, -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB selectable

  • Digital Super Gain

    6 dB, 10 dB, 12 dB, 15 dB, 20 dB, 24 dB, 28 dB, 34 dB selectable

  • Super Gain

    30 dB, 36 dB, 42 dB selectable

  • Shutter Speed

    1/60 (50 Hz) sec., 1/100 (59.94 Hz) sec.,1/120 sec.,1/250 sec.,1/500 sec., 1/1000 sec., 1/2000 sec., HALF 180.0 deg, 172.8 deg, 144.0 deg, 120.0 deg, 90.0 deg, 45.0 deg

  • Shutter Speed - Syncro Scan

    1/61.7 sec. to 1/7200 sec. (1080/59.94i, 480/59.94i)
    1/30.9 sec. to 1/3600 sec. (1080/29.97p,480/29.97p)
    1/24.7 sec. to 1/2880 sec. (1080/23.98p,480/23.98p)
    1/51.4 sec. to 1/6000 sec. (1080/50i,576/50i)
    1/25.7 sec. to 1/3000 sec. (1080/25p,576/25p)

  • Sensitivity

    1080/59.94i: F11, 1080/50i: F12 (2000 lx, 89.9 % reflect)

  • Minimum Luminance

    0.005 lx (F1.4, S.GAIN 42 dB + DS.GAIN 34 dB)

  • Video S/N

    DNR ON: 59 dB, DNR OFF: 54 dB (standard)

  • Registration

    Less than 0.03 % (whole zone, without lens distortion)

  • Horizontal Resolution

    1,000 TV lines (at center standard)

  • Memory Card Recorder Section 1

    Recording Media: P2 card
    Recording Format:
    AVC-Intra 100/AVC-Intra 50/DVCPRO HD/ DVCPRO50/DVCPRO/DV Format switchable
    Recording Video Signal:
    1080/59.94i, 1080/29.97p over 59.94i, 1080/23.98p over 59.94i, 1080/23.98pA over 59.94i, 1080/29.97pN, 1080/23.98pN, 1080/50i, 1080/25p over 50i, 1080/25pN, 480/59.94i, 480/29.97p over 59.94i, 480/23.98p over 59.94i, 480/23.98pA over 59.94i, 576/50i, 576/25p over 50i

  • Memory Card Recorder Section 2

    Recording Audio Signal:
    AVC-Intra 100/50: 48 kHz, 16 bit/24 bit switchable, 4ch
    DVCPRO HD/DVCPRO 50: 48 kHz, 16 bit, 4ch
    DVCPRO/DV: 48 kHz, 16 bit, 2ch/4ch switchable
    Recording Playback Time:
    64GB P2card:
    AVC-Intra 100:
    P2card x 1: Approx. 64 min.
    P2card x 2: Approx. 128 min.
    AVC-Intra 50:
    P2card x 1: Approx. 128 min.
    P2card x 2: Approx. 256 min.
    DVCPRO HD
    P2card x 1: Approx. 64 min.
    P2card x 2: Approx. 128 min.
    DVCPRO 50

  • Memory Card Recorder Section 3

    P2card x 1: Approx. 128 min.
    P2card x 2: Approx. 256 min.
    DVCPRO/DV
    P2card x 1: Approx. 256 min.
    P2card x 2: Approx. 512 min.
    32GB P2card:
    AVC-Intra 100
    P2card x 1: Approx. 32 min.
    P2card x 2: Approx. 64 min.
    AVC-Intra 50
    P2card x 1: Approx. 64 min.
    P2card x 2: Approx. 128 min.
    DVCPRO HD
    P2card x 1: Approx. 32 min.
    P2card x 2: Approx. 64 min.
    DVCPRO 50
    P2card x 1: Approx. 64 min.
    P2card x 2: Approx. 128 min.
    DVCPRO/DV

  • Memory Card Recorder Section 4

    P2card x 1: Approx. 128 min.
    P2card x 2: Approx. 256 min.
    16GB P2card:
    AVC-Intra 100
    P2card x 1: Approx. 16 min.
    P2card x 2: Approx. 32 min.
    AVC-Intra 50
    P2card x 1: Approx. 32 min.
    P2card x 2: Approx. 64 min.
    DVCPRO HD
    P2card x 1: Approx. 16 min.
    P2card x 2: Approx. 32 min.
    DVCPRO 50
    P2card x 1: Approx. 32 min.
    P2card x 2: Approx. 64 min.
    DVCPRO/DV
    P2card x 1: Approx. 64 min.
    P2card x 2: Approx. 128 min.

  • Digital Video 1

    Sampling Frequency:
    AVC-Intra 100/AVC-Intra 50/DVCPRO HD:
    Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz)
    Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50 Hz)
    DVCPRO50: Y: 13.5 MHz, PB/PR: 6.75 MHz
    DVCPRO: Y: 13.5 MHz, PB/PR: 3.375 MHz
    Quantizing:
    AVC-Intra 100/AVC-Intra 50: 10 bit
    DVCPRO HD/DVCPRO50/DVCPRO/DV: 8 bit

  • Digital Video 2

    Video Compression:
    AVC-Intra100/AVC-Intra50: MPEG-4 AVC/H.264 Intra Profile
    DVCPRO HD: DV base compression (SMPTE 370M)
    DVCPRO 50/DVCPRO: DV base compression (SMPTE 314M)
    DV: DV compression (IEC 61834-2)

  • Digital Audio 1

    Frequency Response: 20 Hz to 20 kHz +/-1.0 dB (reference level)
    Dynamic Range:
    More than 85 dB (1 kHz, AWTD, 16 bit)
    More than 93 dB (1 kHz, AWTD, 24 bit)
    Distortion: Within
    0.1 % (1 kHz, reference level, 16 bit)
    0.05 % (1 kHz, reference level, 24 bit)
    Headroom: 18/20 dB selectable

  • GENLOCK In

    BNC x 1, 1.0V [p-p], 75Ohms (switchable to VIDEO IN or Return Video on menu)

  • SDI Out

    BNCx1
    HD SDI: 0.8 V [p-p], 75Ohms, SMPTE292M/299M standards
    SD SDI: 0.8 V [p-p], 75Ohms, SMPTE259M-C/272M-A/ITUR. BT656-4 standards

  • MON Out

    BNCx1 (switchable to HD SDI/SD SDI/Composite on menu)
    HD SDI: 0.8 V[p-p], 75Ohms
    SD SDI: 0.8 V[p-p], 75Ohms, SMPTE259M-C/272M-A/ITUR. BT656-4 standards
    Composite: 1.0V [p-p], 75Ohms

  • SDI In

    BNCx1 (switchable for VIDEO IN/Return Video/ GENLOCK IN, on menu)
    HD SDI: 0.8 V[p-p], 75Ohms, SMPTE292M/299M standards
    SD SDI: 0.8 V[p-p], 75Ohms, SMPTE259M-C/272M-A/ITUR. BT656-4 standards

  • Audio In

    CH1/CH2: XLR 3 pin x 2,LINE/MIC/MIC + 48V switchable
    LINE: 4 dBu (-3 dBu/0 dBu/4 dBu selectable on menu)
    MIC: -60 dBu (-60dBu/-50 dBu selectable on menu)
    MIC + 48V: Phantom +48 V, -60 dBu (-60dBu/-50 dBu selectable on menu)

  • MIC In

    XLR 5 pin x 1, Phantom +48 V (ON/OFF selectable on menu)
    -40 dBu (-50dBu/-40 dBu selectable on menu)

  • Wireless In

    25 pin D-SUB, -40 dBu

  • Audio Out

    CH1/CH2: XLR 5 pin x 1, balanced, low-impedance
    4 dBu (-3 dBu/0 dBu/4 dBu selectable on menu)

  • Phones Out

    Stereo mini jack x 2 (3.5mm diameter)

  • Speaker

    28mm round shape x 1

  • TC In

    BNCx1, 0.5 V [p-p] to 8 V [p-p], 10 kOhms

  • TC Out

    BNCx1, low impedance, 2.0 V [p-p] +/-0.5 V [p-p]

  • DC In

    XLR 4 pin x 1, DC 12 V (DC 11 V-17 V)

  • DC Out

    4 pin, DC 12 V (DC 11 V-17 V), max 1.5 A.

  • Lens

    12 pin

  • Right Connector

    2 pin, DC 12 V (DC 11 V-17 V)
    Output current: max. 4.5 A (to 50 W)

  • EVF

    20 pin

  • Remote

    10 pin for AJ-RC10G, AG-EC4G

  • GPS

    6 pin for AJ-GPS910G

  • USB

    2.0: HOST: 4-pin Type-A, DEVICE: 4-pin Type-B

  • Monitor

    81.28 mm (3.2 inches) LCD monitor, approx. 921,000 dots (16:9)

  • Power Supply

    DC12V (11V to 17V)

  • Power Consumption

    34W (main unit only)

  • Operating Temperature

    0deg.C to 40deg.C (32 deg.F to 104 deg.F)

  • Operating Humidity

    10 % to 85 % (relative humidity)

  • Keeping Temperature

    -20 deg.C to 60 deg.C (-4 deg.F to 140 deg.F)

  • Operating Time

    Approx. 150 min., when using DIONIC90 battery

  • Dimensions (W x H x D)

    140 mm x 270.5 mm x 335.8 mm (5.51 x 10.64 x 13.22")

  • Weight

    3.9 kg/8.68 lbs (main unit only)

9 Accessories for Panasonic AJ-HPX3100GJ 2/3" 2.2 megapixel P2 HD Camcorder, Full Raster 1920x1080 Resolution, 4:2:2 10-bit Sampling, HD/SD-SDI

  • All Accessories (9)
  • Bags & Cases (1)
  • Headphones (1)
  • Microphones (1)Required Item
  • Mic Stands (1)Required Item
  • Microphones & Audio (1)Required Item
  • Quick Release (1)
  • Cables & Adapters (1)
  • Batteries & Power Supply (1)Required Item
  • Lenses (1)Required Item
Panasonic AJ-MC900G Stereo Microphone
Panasonic AJ-MC900G Stereo Microphone
$2,028.49

Required

Panasonic AJ-MH800G Microphone Holder
Panasonic AJ-MH800G Microphone Holder
$471.51

Required

Audio-Technica BP4073 Line + Gradient Condenser Microphone, 9" Long
Audio-Technica BP4073 Line + Gradient Condenser Microphone, 9" Long
$819.00

Required

IDX IA200A 100 Watt AC Adaptor Power Supply, 2 Outputs
IDX IA200A 100 Watt AC Adaptor Power Supply, 2 Outputs
$461.00

Required

Fujinon HA42x9.7-BERD-U48 2/3" 42x ENG HDTV Lens, 2x Extender
Fujinon HA42x9.7-BERD-U48 2/3" 42x ENG HDTV Lens, 2x Extender
$94,700.00

Required

Panasonic SHAN-TM700 Quick-Release Tripod Adapter
Panasonic SHAN-TM700 Quick-Release Tripod Adapter
$494.50
Recommended
Slinger V2 BigBag Pro Video Handbag XL with Wheels
Slinger V2 BigBag Pro Video Handbag XL with Wheels
$159.95
Recommended
Sony MDR-7506 Closed-Back Over-Ear Professional Monitor Headphones
Sony MDR-7506 Closed-Back Over-Ear Professional Monitor Headphones
$113.00
Recommended
Hosa Technology 3' 3-Pin Straight XLR Male to Right Angle XLR Female Audio Cable
Hosa Technology 3' 3-Pin Straight XLR Male to Right Angle XLR Female Audio Cable
$13.95

About Panasonic AJ-HPX3100GJ

Panasonic AJ-HPX3100GJ 2/3" 2.2 megapixel P2 HD Camcorder
When ENG-style camera operators asked for a robust system with less weight, Panasonic delivered with the AJ-HPX3100GJ. The AJ-HPX3100GJ is Panasonic’s most lightweight and compact ?-inch 3-CCD sensor camera crammed with three 2-megapixel CCD sensors. The HPX3100 is capable of capturing full-HD 1920x1080 resolution footage thanks to its AVC-Intra codec. The HPX3100 is capable of shooting HD quality images at various frame rates and codecs giving operators maximum image flexibility.

Key Features

  • Master-quality 1920 x 1080 10-bit video with run-and-gun flexibility
  • Newly designed body with low center of gravity offers unobstructed views on both sides and weighs approx. 8.6 lbs (3.9kg) without accessories
  • 2.2 megapixel 2/3-type 3CCD provides high-resolution full-pixel HD images
  • High sensitivity of F11 (2000 lx) in 1080/59.94i mode or F12 (2000 lx) in 1080/50i, plus an excellent S/N ratio of 59 dB
  • One-clip recording function records multiple cuts in a single clip
  • New options (AJ-YDX30 proxy board available in early 2011) enable high-quality proxy video and wireless LAN capability
  • Chromatic Aberration Compensation (CAC) function compensates for and reduces lens error that may appear with very high resolution recording
  • Three-level Dynamic Range Stretch (DRS) function that varies the gamma correction to match the contrast within the image
  • Advanced 14-bit Digital Signal Processing (DSP) circuit with A/D conversion and 12-axis independent color compensation and detail
  • Records on high data transfer speed E-Series P2 cards (capacity up to 64GB)
  • Digital Zoom and Digital Super Gain
  • One-clip REC function that records up to 99 consecutive cuts as a single clip, greatly facilitating NLE news or documentary editing
  • Supports optional camera studio system (camera adapter, base station, VF adaptor and extension control unit)

Built for scripted-television, documentaries, short-films, cinema, and commercial applications; the Panasonic AJ-HPX3100 offers operators a video rig that is both expandable, compact, lightweight, and broadcast ready thanks to its use of readily available technology as well as the ability to future-proof your investment. Whether building up your workflow from scratch or adding to an existing arsenal of gear, the HPX3100 is a must for your production needs.

From the Manufacturer

The Panasonic AJ-HPX3100GJ is Panasonic's most compact, lightweight 2/3" P2 HD shoulder-mount camcorder ever. Featuring three 2/3" high density 2.2 million pixel CCDs, the HPX3100 acquires full-raster 1920 x 1080 resolution imaging with 4:2:2 10-bit sampling using the advanced AVC-Intra codec. Offering a new compact size (similar to the AG-HPX370) for added mobility, the two P2 slot camcorder records in multiple worldwide formats, in HD in AVC-Intra and in DVCPRO HD at 1080 in 24p, 25p, 30p, 50i and 60i and in SD (480i/586i) in DVCPRO50, DVCPRO and DV. AVC-Intra, the industry's most advanced compression technology, is a professional intra-frame video codec with bit rates of 50 and 100 Mbps, utilizing the High-10 and High-422 profiles of H.264 respectively. AVC-Intra provides high-quality 10-bit intra-frame encoding in two modes: AVC-Intra 100 for full-raster mastering video quality and AVC-Intra 50 Mbps for DVCPRO HD quality at half the bit rate, thereby doubling the record time on a P2 card.

Designed for scripted programming, documentary, nature, cinema and commercial production, the master-quality HPX3100 offers new features including 24-bit audio in AVC-Intra 100/50, wireless metadata input capability via wireless LAN and a high-quality proxy recording (option). The HPX3100 is equipped with six advanced gamma settings, including Film-Rec 600% mode (made popular by the VariCam), film-like shutter controls and intuitive film camera-like operation. It also features a built-in reverse scan that allows unique setups such as mounting the camera upside down or usage of an ultra prime lens or an anamorphic lens adapter to create a 2.35:1 aspect image.

Panasonic AJ-HPX3100GJ Features

  • Master-quality 1920 x 1080 10-bit video with run-and-gun flexibility
  • Newly designed body with low center of gravity offers unobstructed views on both sides and weighs approx. 8.6 lbs (3.9kg) without accessories
  • Power consumption approximately 34W for the camera recorder only, about 23% lower than a conventional model
  • 2.2 megapixel 2/3-type 3CCD provides high-resolution full-pixel HD images
  • High sensitivity of F11 (2000 lx) in 1080/59.94i mode or F12 (2000 lx) in 1080/50i, plus an excellent S/N ratio of 59 dB
  • One-clip recording function records multiple cuts in a single clip
  • New options enable high-quality proxy video and wireless LAN capability
  • Chromatic Aberration Compensation (CAC) function compensates for and reduces lens error that may appear with very high resolution recording
  • Three-level Dynamic Range Stretch (DRS) function that varies the gamma correction to match the contrast within the image
  • Advanced 14-bit Digital Signal Processing (DSP) circuit with A/D conversion and 12-axis independent color compensation and detail
  • Records on high data transfer speed E-Series P2 cards (capacity up to 64GB)
  • Digital Zoom and Digital Super Gain
  • One-clip REC function that records up to 99 consecutive cuts as a single clip, greatly facilitating NLE news or documentary editing
  • 2 disc/4 position ND/CC optical filter
  • High-resolution, flip-out 3.5" color LCD monitor
  • Optional color or black-and-white type viewfinder
  • Supports optional camera studio system (camera adapter, base station, VF adaptor and extension control unit)
  • New AJ-YDX30 proxy board available in early 2011
  • Wireless LAN available in early 2011

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Digital Zoom and Digital Super Gain
  • 2 disc/4 position ND/CC optical filter
  • High-resolution, flip-out 3.5 color LCD monitor
  • Optional color or black-and-white type viewfinder
  • New AJ-YDX30 proxy board available in early 2011
  • Wireless LAN available in early 2011

What's in the box:

  • Panasonic AJ-HPX3100GJ 2/3 2.2 megapixel P2 HD Camcorder
  • Shoulder Strap
  • Front Audio Volume Knob
  • Control Knob Screw
  • AUDIO Connector Cap
  • XLR Connector Cap
  • GPS Connector Cap
  • Software
  • Panasonic 1 Year Warranty (Plus 4 Additional Years with Online Registration)
