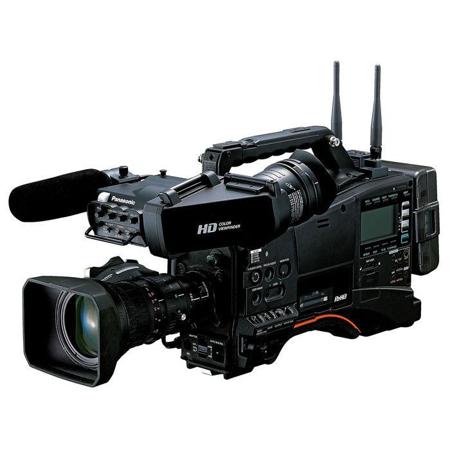

Panasonic AJ-PX380G Shoulder Mount Camcorder Studio910 Package, Includes AG-CVF15 Color Viewfinder, XT17x4.5 BRM 17X Fujinon Lens and BT-LH910 Monitor

The shoulder-type AJ-PX380G Camera Recorder raises broadcast picture quality and compact, lightweight mobility while adding functions that enhance network-based workflows and enabling simple, excellent cost performance operation. Its 1/3-type 2.2-megapixel 3MOS sensors achieve high sensitivity, high S/N and a wide dynamic range. AVC-ULTRA (AVC-ULTRA is the name of Panasonic's professional video codec family. The AJ-PX380G does not support all of the formats included in the AVC-ULTRA family) codecs let you select the most suitable bit rate for your purpose, from high-quality 1080/60p (50p) 4:2:2 10 bit recording to low-rate streaming and FTP transmission, for broadcast-level image acquisition.

Network functions support wired LAN, wireless LAN and 4G/LTE connectivity. A built-in Camera Adaptor function allows simple base station connection with two BNC cables for SDI input. All of this allows the AJ-PX380G to provide simple and cost efficient solution to a wide range of applications, from news gathering to relay, live streaming and studio camera operation.

Network Functions to Expedite News Gathering and Image Acquisition Workflows
• Clips are automatically uploaded to an FTP server while recording (Rec during Uploading)
• Stable Full-HD images are on-air streamed by a special mode (QoS mode)
• Recorded clips can be previewed and metadata can be checked and edited on a smartphone, tablet or PC/Mac
• P2 ROP APP for iPad enables an advanced wireless camera remote function
• The P2 Cast cloud service is provided by Panasonic for broadcast and production use

Direct Linking for Simpler Studio Camera Workflows
• The built-in CA (Camera Adaptor) function eliminates the need for a Camera Adaptor and VF Interface Box. The return signal can be monitored without VF Interface Box
• Two BNC cables enable SDI (video/audio) input of REMOTE, INTERCOM, RETURN, GENLOCK and TALLY communication
• Maximum extension of 100 m (328 feet) (via 5C-FW BNC cable)
• Also supports conventional systems using the AG-CA300G Camera Adaptor. DC Power can be supplied from the transmission cable

Ultra Lightweight
In addition to its compact, lightweight mobility, the camera section offers 3MOS sensors and versatile features to meet broadcast demands for high picture quality and advanced functions.

Compact, Lightweight, 1/3 Shoulder-Type
The camera-recorder weighs approximately 2.7 kg (6.0 lbs.) and only about 4.75 kg (10.47 lbs.) with the lens and EVF (AJ-PX380GF included) mounted. This combines with the compact body size for excellent mobility in news gathering and other active uses.

1/3-Type Bayonet Mount Interchangeable Lenses
Broadcast and professional 1/3-type zoom lenses available from various manufacturers in a wide range of variations and performance can be used.

High Sensitivity, Low Noise, 1/3-Type 3MOS Sensors
2.2-megapixel 1/3-type 3MOS (RGB) image sensors offer full-pixel HD (1920 x 1080) resolution, F11 (59.94 Hz) or F12 (50 Hz) sensitivity and low noise. They also achieve rich gradation and vibrant color reproduction. The 1/3-type image sensors achieve the same maximum 600% level of dynamic range as other high-end shoulder-type models.

600% Dynamic Range
Rich data is captured all the way from highlights to shadows, to render truly realistic images. Features such as color grading also expand post-production flexibility.

FILM-REC Gamma
This function was made possible by the new 600% dynamic range. It achieves a cinematic latitude that exceeds the CINE-LIKE D mode in their previous 1/3-type camera recorder. Gamma curves can be selected from 7 modes (HD/SD/FILMLIKE 1/FILMLIKE 2/FILMLIKE 3/FILM-REC/VIDEO-REC).

DRS (Dynamic Range Stretch)
Suppresses blocked shadows and blown highlights to achieve a visually wide dynamic range.

Built-in Electronic Level Gauge
The electronic level lets you easily confirm camera tilting on the LCD monitor screen. It helps to keep the camera level during handheld shooting, low-angle shooting and high-angle shooting.

High-Quality Image Processing and Versatile Image Settings

CAC (Chromatic Aberration Compensation)
When using a CAC compatible lens, the small amount of circumjacent chromatic aberration (circumjacent blur) that is not corrected by the lens is compensated by this process.

Advanced Flash Band Compensation (FBC)
This function detects and precisely compensates the flash bands (bands of light and dark) that often occur in cameras equipped with a MOS sensor.

Setting Items
H detail, V detail, detail coring, skin tone detail, chroma level, chroma phase, color correction, master pedestal, knee (auto/manual/ off), matrix (norm1/norm2/fluo/cine-like), high color, white clip.

Advanced Focus Assist Functions
A variety of focus assist functions support quick and accurate focusing in manual focus mode.

Focus-in-Color
Emphasizes the image areas in focus by marking the edges in red, green or blue.

Expand
Enlarges the center portion for increased visibility.

Focus Bar
The meter graphically displays the focus level.

Professional Shooting Functions
• Scan Reverse
• Digital Zoom
• Electronic Shutter with Slow Shutter Capability
• Shockless Auto White Balance
• AWB
• Three-position Gain Selector
• +36 dB Super Gain
• Optical ND Filters
• Color HD Viewfinder/Monitor
• User Interface "SmartUI"

Versatile Shooting Assist Functions
• User Buttons: Frequently used functions can be assigned to three User Buttons
• Scene Files/User Files: Scene files let you select either of six preset files from the menu on SmartUI according to the shooting situation and up to eight settings can be stored onto an SD memory card
• WFM/Vectorscope: Simplified waveform and vectorscope display
• Zebra: Select any two levels from 0% to 109% in 1% steps
• Mode check: Displays a list of the camera settings
• Y-GET: Measures brightness at center and displays numerical data
• Marker Display: Displays a center marker, safety zone marker and frame marker
• Front mic input volume knob (ON/OFF and CH can be allocated)

Ultra Quality
AVC-ULTRA broadcast codec provides high-quality, 4:2:2 10-bit recording. microP2 card slot included.

AVC-ULTRA Supported as Standard
From mastering to streaming, the image quality and bit rate can be selected to match the application. Panasonic's professional A/V codec family, AVC-ULTRA, is provided as standard equipment to meet the particular needs of broadcasting and video production.

AVC-Intra
An intra-frame compression method that is highly suited to image production, AVC-Intra100/50 codec (10-bit quantization, 4:2:2 sampling).

AVC-LongG
This inter-frame compression method achieves high quality HD recording at a low bit rate. Ideal for providing on-air content direct from the shooting location and for workflows using content transferred over the internet. Three bit rates are available: AVC-LongG50/25/12 Mbps. AVC-LongG25 provides 4:2:2 10 bit quality at a bit rate of approximately 25 Mbps.

AVC-Proxy
Low-bit-rate, high-resolution, high-sound quality proxy video (Quick Time/H.264) is also recorded with the actual data. Also includes metadata for efficient offline editing.

Full Frame Progressive Recording
1080/60p (50p) full frame progressive recording is supported in the AJ-PX380G. In addition to being able to record with the AVC-Intra100 or AVC-LongG25/LongG12 codec, the AJ-PX380G is capable of camera through output from the SDI OUT 1 terminals.

HD/SD Multi Format/Multi Codec
In addition to 1080/60i, the AJ-PX380G supports 24p, 30p, 60p and 720p multi HD format and SD recording. 59.94 Hz/50 Hz switchable is convenient for use in productions headed for global use. DVCPRO HD/ DVCPRO50/DVCPRO/DV recording is also supported.

High-Quality 24 Bit Four Channel Audio Recording
AVC-Intra and AVC-LongG modes support 24 bit/48 kHz/4 CH digital audio recording. (16 bit for AVC-LongG12, DVCPRO HD, DVCPRO 50, DVCPRO and DV). The audio source can be selected for each channel, choosing from mic-in, line-in and wireless receiver.

Standard-Equipped microP2/P2 Card Slots
The AJ-PX380G comes with two slots for microP2 cards, the broadcast-use memory card downsized to match the size of a conventional SD Memory Card and one P2 card slot.

Content Protection System (CPS)
A security function featured on the microP2 card. The content recorded on the card is locked with a password to protect against unauthorized access. This prevents data from being stolen and enables secure media control.

Ultra High Speed
Network functions enable automatic file transfers and on-air streaming. Camera extension systems require no external Camera Adaptor.

• Wired/Wireless LAN, 4G/LTE Network Functions
• Full-HD Streaming Supported
• Built-in Camera Adaptor for Camera Studio Systems
• Camera Remote System Compatibility
• Transferring Recorded Clips Automatically
• Direct Connection to The LiveU Video Uplink Solution
• 3G-SDI Output and HD SDI Input
• The P2 ROP App for Wireless Control using iPad
