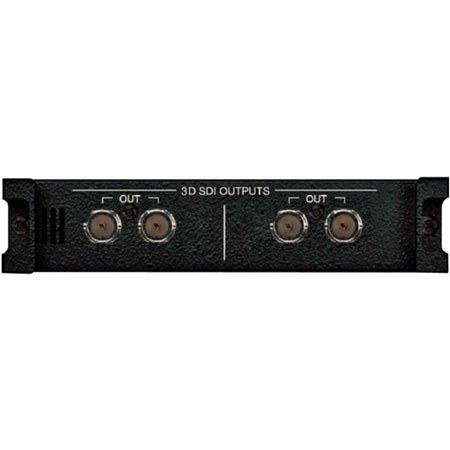

Panasonic AV-HS04M7D 3D SDI Output Board
See all Panasonic items

Panasonic AV-HS04M7D 3D SDI Output Board for AV-HS450N Switcher

SKU: PCAVHS04M7D MFR: AV-HS04M7D
Be the first to review this itemAsk a Question
$5,824.95
OR
$486/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Elevate your productions with this Panasonic 3D SDI Output Board for seamless video switching.
  • Enjoy versatile compatibility; this switcher board supports multiple formats like 1080/59.94i.
  • Ensure reliable connectivity with 6 SDI output channels, expandable to 8, for professional setups.
  • Experience high video quality with up-conversion on inputs 13-16, enhancing your visual output.
  • Simplify real-time streaming; this I/O module offers easy integration with AV-HS450N switchers.
  • Create dynamic visuals with features like color correction and input signal reversing functions.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Panasonic AV-HS04M7D Specifications

  • Input

    Number of Channels: (L, R) x 8 [9] channels
    Frame Synchronizer, Freeze: Yes
    Up-converter (IN13 to 16): Yes
    Color collector (IN 9 to 16): Yes
    Input signal reversing function(horizontal/vertical): Yes
    Input signal position correction function(horizontal/vertical): Yes

  • SDI Output

    Number of Channels: 6 [8] ch
    L, R: Yes
    MIX: Yes
    Side-by-Side: Yes

  • DVI OUT

    Number of Channels- 2 [3] channels L, R- Yes
    MIX- Yes

  • BKGD

    CUT- Yes
    MIX- Yes
    WIPE- Yes

  • Keys

    Number of Channels- (L, R) x 1 ch
    CUT- Yes
    MIX- Yes
    WIPE- Yes
    DVE-Yes
    Lum, Linear, Chroma, Full- Yes

  • PinP

    Number of Channels- (L, R) x 1 ch
    Square (PinP1)- Yes

  • DSK

    Number of Channels- (L, R) x 2 ch
    Lum, Linear- Yes

  • FMEM

    Number of Channels- 4 channels

  • MV

    Number of Channels- (L, R) x 1 ch

  • Aux

    Number of Channels- (L, R) x 4 ch

  • Format Support

    1080/59.94i, 1080/50i, 1080/23.98PsF, 1080/24PsF,720/59.94p, 720/50p

About Panasonic AV-HS04M7D

An advanced addition to your AV-HS450 switcher, the Panasonic AV-HS04M7D 3D SDI Output Board is a specialized, optional 3D board designed to elevate your live production capabilities. This innovative output board supports up to nine 3D cameras when operating in 3D mode, making it an ideal solution for applications requiring multiple inputs and outputs.

The AV-HS04M7D 3D SDI Output Board is compatible with both 1080/59.94i and 1080/50i formats, providing versatility in both 2D and 3D modes. With the utilization of SDI standard inputs, this output board delivers vertical and horizontal reversing capabilities, along with position correction across all 16 channels.

Designed for on-site adaptability, the AV-HS04M7D 3D SDI Output Board enables correction to be performed directly on the site using an optional 3D rig. It also supports on-site chroma key compositing with Primatte chroma key technology, applicable to both left and right channels.

This output board is engineered to facilitate simultaneous video transmission using cross point buttons, enhancing the efficiency of your live production. It also offers a range of effects such as cut, dissolve, and wipe, which can be utilized as simultaneous transitions in various 3D productions, including sports recording, commercial production, and event recording.

In essence, the Panasonic AV-HS04M7D 3D SDI Output Board is a powerful tool that brings a new level of sophistication and flexibility to your live 3D productions.

Panasonic AV-HS04M7D Features

  • Optional 3D board for the AV-HS450
  • Allows for live production
  • Supports up to nine 3D cameras in 3D mode
  • Can be used in applications with multiple I/O
  • Offers vertical/horizontal reversing and position correction for all 16 channels using SDI standard inputs
  • Simultaneous video transmission using cross points button
  • Correction on site via a 3D rig (optional)
  • On site chroma key compositing using primate chroma key
  • Supports up to 9 cameras in 3D mode
  • Can be used in applications with multiple inputs/outputs
  • Compatible formats in 3D mode - 1080/59.94i, 1080/50i, 1080/23.98PsF, 1080/24PsF, 720/59.94p and 720/50p
  • Compatible formats in 2D mode - 1080/59.94i, 1080/50i, 1080/23.98PsF, 1080/24PsF, 720/59.94p, 720/50p, 480/59.94i and 576/50i
  • Effects such as cut, dissolve and wipe can be used as simultaneous transitions in sports recording, commercial production, event recording and other 3D productions

Warranty Information

This product has a limited warranty of 12 months.
