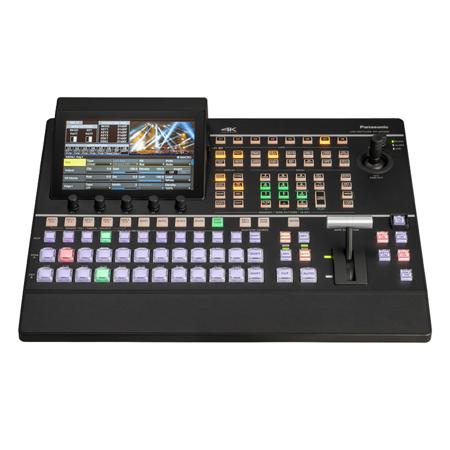

Panasonic AV-UHS500 4K/12G-SDI Compatible Compact Live Switcher

SKU: PCAVUHS500 MFR: AV-UHS500
Be the first to review this itemAsk a Question
$19,845.00
OR
$1654/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Create stunning live productions with the Panasonic AV-UHS500's 4K/12G-SDI support.
  • Enjoy reliable connectivity with this compact live switcher, perfect for broadcast environments.
  • Experience versatile compatibility with HDMI and SDI inputs, making integration a breeze.
  • Easily manage your video sources using the user-friendly interface for seamless switching.
  • Stream in real-time with confidence, thanks to the switcher's robust and stable performance.
  • Achieve high video quality with advanced color correction tools for a professional finish.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Panasonic AV-UHS500 Specifications

Video Terminal

Video Terminal

Jump to...

  • SDI In 1 to SDI In 8 Terminals

    8 lines (plus another maximum of 8 lines when using the OPTION unit)
    Connectors: BNC x 8
    Color space conversion function
    Frame synchronizer function
    Connectors to equipped with simple format converters
    Connectors to equipped with up-converters
    Connectors to equipped with color correctors

  • SDI In 1 to SDI In 8 Terminals (Contd.)

    12G-SDI: 12G-SDI, SMPTE ST 2082-10 standard complied with
    3G-SDI: 3G-SDI, SMPTE292 standard complied with (Compatible with Level-A/Level-B)
    HD-SDI: HD-SDI, SMPTE292M standard complied with

  • HDMI In 1 - HDMI In 2 Terminals

    2 lines (plus another maximum of 6 lines when using the OPTION unit)

    Video format inputs: 720p/59.94 Hz, 720p/50 Hz, 1080i/59.94 Hz, 1080i/50 Hz, 1080p/59.94 Hz, 1080p/50 Hz, 1080p/29.97 Hz, 1080p/25 Hz, 1080p/24 Hz, 1080p/23.98 Hz, 2160p/59.94 Hz, 2160p/50 Hz, 2160p/29.97 Hz, 2160p/25 Hz, 2160p/24 Hz, 2160p/23.98 Hz

  • HDMI In 1 - HDMI In 2 Terminals (Contd.)

    PC format inputs: 4K (3840 x 2160, 60 Hz), WQHD (2560 x 1440, 60 Hz), WUXGA (1920 x 1200, 60 Hz), UXGA (1600 x 1200, 60 Hz), WSXGA+ (1680 x 1050, 60 Hz), SXGA (1280 x 1024, 60 Hz), WXGA (1280 x 768, 60 Hz), XGA (1024 x 768, 60 Hz)

    Mode: Full/Fit-H/Fit-V
    Scaler, Frame synchronizer and Color space conversion function
    Connectors: HDMI x 2
    This connector does not support the CPRM technologies

  • SDI Out 1 to SDI Out 5 Terminals

    5 lines (plus another maximum of 8 lines when using the OPTION unit)
    Connectors: BNC x 5
    Down-converter to 1080p, Color space conversion function
    PGM, PVW, CLN, ME PGM, MV1 to MV2, AUX1 to AUX4, Key Out can be assigned

  • HDMI Out 1 to HDMI Out 2 Terminals

    2 lines (plus another maximum of 6 lines when using the OPTION unit)
    Connectors: HDMI x2
    Not support Scaler (Only system format is available)
    Color space conversion function
    PGM, PVW, CLN, ME PGM, MV1 to MV2, AUX1 to AUX4, Key Out can be assigned

  • Signal Formats

    2160/59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 1080/59.94p, 50p, 29.97PsF, 25PsF, 24PsF, 23.98PsF, 59.94i, 50i, 720/59.94p, 50p

  • Signal Processing

    R: G: B 4: 4: 4 8 bit / 4: 2: 2 10 bit (Only for HDMI)
    Y: CB: CR 4: 2: 2 10 bit

  • ME Number

    1ME

Synchronous Terminal

Jump to...

  • REF Terminal Reference Input/ BB Outputs

    In Genlock mode: Black burst or Tri-level Sync input signals (with loop-through)
    Loop-through output is performed in external sync mode
    If loop-through output is not going to be used, provide a 75 Ohm termination
    Connectors : BNC x 2

  • REF Terminal Input/ BB Outputs (Contd.)

    Same field frequencies as those of the system formats supported
    With the 24.00p format, Black Burst input signal is not supported
    With the 1080/23.98PsF format, black burst with 10 Field ID (SMPTE318M standard met) or Trilevel Sync signals supported
    BB signals are output from two connectors in the internal sync mode

  • Video Delay Time

    1 line (H): When the frame synchronizer setting is [Off] and neither the up-converter nor the down-converter is operating
    1 frame (F): When the frame synchronizer setting is [On] and the up-converter and down-converter are operating

Control Terminal

Jump to...

  • LAN Terminal

    Compatible with 1000BASE-TX and AUTO-MDIX (For IP control)
    Connecting cable: LAN cable (CAT5e), max. 100 m (328 ft), STP (Shielded Twisted Pair) cable recommended
    Connectors : RJ-45

  • TALLY GPI Terminal

    Input: 8 inputs general-purpose, photocoupler sensing
    Output: 19 outputs; selected from R/G tally, general-purpose
    Alarm: 1 output, open collector output (negative logic)

General

Jump to...

  • Power Supply

    AC 100 V to 240 V, 50 Hz/60 Hz

  • Current Consumption

    1.5 A

  • Ambient Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Ambient Operating Humidity

    10 % to 90 % (no condensation)

  • Storage Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Humidity

    10 % to 90 % (no condensation)

  • Dimensions (W x H x D)

    17.31 x 6.68 x 14.18" (440 x 170 x 360mm) (excluding protrusions)

  • Weight

    Approx. 15.4 lbs (7kg)

About Panasonic AV-UHS500

Before you dive into the world of live video production, consider the AV-UHS500 4K/12G-SDI Compatible Compact Live Switcher. This sophisticated and advanced piece of technology is designed to handle high-quality 4K video signals, making it a perfect choice for professional videographers and broadcasters.

This high-tech live switcher is not just compact and easy to transport, but it's also packed with innovative features typically found in high-end models. It delivers 4K video production with the same ease of operation as HD, making it a versatile tool for various video production needs.

The AV-UHS500 is ideal for a range of settings, from university lecture halls and corporate conference rooms to remote production sites. Its flexible scalability, with support for 12G-SDI/3G-SDI/HDMI, ensures easy setup and high-quality 4K video production.

This professional live switcher supports multiple 4K/3G/HD formats, including 2160/59.94p and 1080/59.94p. It features a built-in frame synchronizer for all inputs and a Genlock function for synchronizing systems based on external sync signals.

The AV-UHS500 comes with eight standard SDI inputs, two standard HDMI inputs, five standard SDI outputs, and two standard HDMI outputs. It also offers various built-in conversion functions, including up/down conversion, HDR/SDR conversion, ITU-R BT.2020/BT.709 conversion, scaler function, and color correction function.

Enhance your creativity with its versatile transitions and effects. From standard wipe, mix, and cut transitions to a variety of DVE transitions patterns, this compact live switcher has it all. It also features five keyers, video memory, four AUX buses, and various memory functions for smooth live production.

The AV-UHS500 also includes a PTZ camera control function, enabling 4K/HD Integrated Cameras to be controlled directly from the switcher. It also features two independent MultiViewer output functions, providing the display of up to 16 split screens on a single screen.

With its 178 mm (7 inches) LCD Monitor and easy-to-use control panel, the AV-UHS500 ensures enhanced operability. It can be expanded with a variety of functions as required using five optional units.

In conclusion, the AV-UHS500 4K/12G-SDI Compatible Compact Live Switcher is a sophisticated, advanced, high-tech, professional, and innovative tool that is designed to meet all your live video production needs.

Panasonic AV-UHS500 Features

  • 12G-SDI/3G-SDI/HDMI Support
  • UHD/HD Multi-Format Support
  • Frame Synchronizer for All Inputs
  • Eight Standard SDI Inputs, Two Standard HDMI Inputs Five Standard SDI Outputs, Two Standard HDMI Outputs
  • Various Built-in Conversion Functions, Including Up/Down Conversion
  • Versatile Transitions and Effects
  • Five Keyers
  • Video Memory
  • Four AUX Buses, DSK 1 and 2 Can Also Be Assigned
  • Various Memory Functions for Smooth Live Production
  • Animation Wipe
  • Clip Converter
  • Supports TSL5.0
  • SDHC/SDXC Memory Card Slot
  • PTZ Camera Control Function
  • Two MultiViewer Functions
  • 178 mm (7 inches) LCD Monitor with Excellent Visibility and Easy-to-Use Control Panel
  • Expandable with a Variety of Functions as Required Using Five Optional Units

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Create stunning live productions with the Panasonic AV-UHS500's 4K/12G-SDI support.
  • Enjoy reliable connectivity with this compact live switcher, perfect for broadcast environments.
  • Experience versatile compatibility with HDMI and SDI inputs, making integration a breeze.
  • Easily manage your video sources using the user-friendly interface for seamless switching.
  • Stream in real-time with confidence, thanks to the switcher's robust and stable performance.
  • Achieve high video quality with advanced color correction tools for a professional finish.

What's in the box:

  • AV-UHS500 4K/12G-SDI Compatible Compact Live Switcher
  • Panasonic 1 Year Limited Warranty
