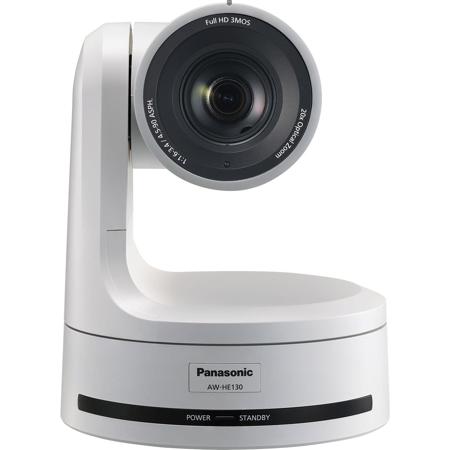

Panasonic AW-HE130W 720p Full HD Integrated Pan/Tilt/Zoom PTZ Camera, 20x Optical Zoom, White

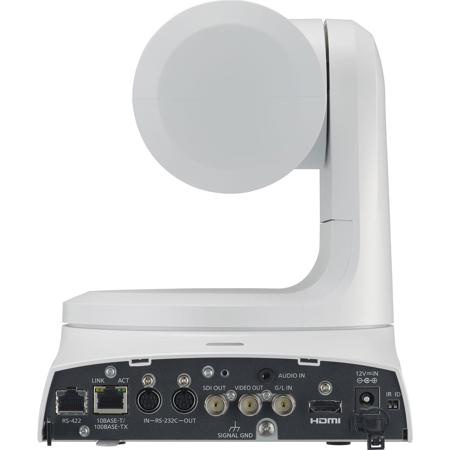

Introducing a new PTZ camera capable Production Quality Full HD video output up to 1080/60p via IP transmission, in addition to 3G-SDI and HDMI. Equipped with three newly developed 1/2.86 MOS sensors for high sensitivity, a superior S/N ratio and high resolution. The AW-HE130W/K also supports PoE+, so the camera only needs one LAN cable for its power supply, control and video output. Presenting the new standard in versatile, high-quality remote production with 3G-SDI, IP-Streaming and POE+.

Full HD Video Output Via IP Transmission
In addition to 3G-SDI and HDMI output, production quality full HD video output via IP transmission is supported with the AW-HE130W/K. The camera delivers up to four channels of IP streaming video (H.264), with a maximum quality level of 1080/60p at 24 Mbps 1. Simultaneous transmission to as many as 14 devices is also supported. 2 Flexible system setup is possible to meet various application needs.

Transmit IP Video Without A Separate Encoder Reduces Cost and Simplifies Installation
There is no need for the separate encoder normally required when streaming video and audio via IP. Systems can be built with exceptional cost/performance benefits.

Supporting POE+ 3 for Lower Installation Cost
By connecting to network devices that support the IEEE 802.3at POE+ standard, power can be supplied via LAN cable. Since it is not necessary to install a power supply or even a local A.C. outlet, installation costs can be significantly reduced.

IP Control with Image Monitoring Using PC, Mac and Mobile Terminals
Using an IP browser, such as Internet Explorer or Safari, it is possible to set up and control the camera from a remote location, This feature simplifies the management of cameras around a campus or across a worldwide enterprise network. IP video monitoring and remote camera control can also be performed from mobile terminals such as an iPhone, iPad or Android device.

Flexible IP Control Architecture Simplifies System Design and Operation
Up to 100 x AW-HE130W/K cameras can be controlled via IP from a single AW-RP120G, AW-RP50 or PC. An AW-HE130W/K can also be simultaneously controlled by up to five AW-RP120G or AW-RP50's via IP. AK-HRP200G can be used for precise color adjustment.

Three Newly Developed 1/2.86-Type MOS Sensors for High-Level Video Capture and Production
Equipped with three newly developed 1/2.86-type full HD MOS sensors and DSP (Digital Signal Processor), AW-HE130W/K achieves high sensitivity, a high S/N ratio and high resolution through the use of advanced video processing.

Optical Image Stabilizer And Digital Extender For Capturing Clear Images At Any Distance

Optical Image Stabilization System (OIS)
Automatically minimizes the effect of small vibrations from the surface where the camera is mounted caused; whether this is caused by the opening and closing of doors, nearby speakers or other disturbances.

High Performance 20x Zoom Lens/1.4x Digital Extender Zoom
In addition to a sharp, fast F1.6, 20x optical zoom lens, the AW-HE130W/K is equipped with an innovative 1.4x digital extender that can increase the effective focal length of the lens by 40% while delivering smooth, high resolution video.

Advanced Color Adjustment Capabilities for Precision Imaging

Independent Color Correction Function with 12 Color Axes + 3 Skin Tone Axes
In addition to the conventional 12 axes, three additional axes have been added for the skin tone area. This makes it possible to reproduce skin tones with greater precision.

Color Temperature Adjustment Mode
In addition to the usual white balance modes, a new vari able Color Temperature-based function has been added. This makes it easier to make the precise camera adjustments required for different lighting conditions.

Dynamic Range Stretch (DRS) / Hybrid Digital Noise Reduction (Hybrid DNR)
Black defects, halation and washed-out colors are minimized for video images with a visually broad dynamic range (DRS). In addition, with Hybrid Digital Noise Reduction (Hybrid DNR), two types of noise reduction, 2D and 3D, are used together to enable clear video capture under a wide range of lighting conditions, with minimal after-image blurring or image degradation.

Equipped with Night Mode for Infrared Shooting
The AW-HE130W/K can deliver high-quality monochrome video in total darkness, when the camera's Night Mode is used in conjunction with an optional IR illuminator.

Freeze During Preset function
The new Freeze During Preset function may be enabled to freeze the video during preset playback. The immediately preceding still image is output during preset movements so that the swiveling movement is not displayed, making operations possible with one camera.

Supports Multiple Formats for Flexible Output
In addition to typically supported formats, the camera supports output formats required for specialized applications, including 1080/29.97p, 1080/25p, 1080/23.98p. Remote control video capture can now be more easily performed for specialized applications such as teleproduction and scientic research.

Audio Input Function
The AW-HE130W/K also supports audio input, embedding and encoding. The input from the camera's switchable mic/line input can be combined with the HD-SDI, HDMI and streaming outputs for mixing, recording or transmission.

Excellent Quietness
Thanks to its fan-less design and advanced pan-tilt mechanism, the AW-HE130W/K is very quiet and greatly reducing audio noise during video capture.

Exceptional Pan-Tilt Mechanism Performance for Smooth Moves During Video Capture
Thanks to a highly evolved pan-tilt design, the AW-HE130W/K achieves smoother and more natural movement during on-air shots. The pan-tilt head also has a wide shooting range, with a pan range of +/-175 Degree and a tilt range of -30 Degree to 210 Degree . The newly developed pan-tilt drive provides high-speed operation at maximum 60 Degree /s, excellent response to remote control operation and highly precise stop control. These features combine to accurately capture fast-action sports scenes or smooth concert footage. The noise level during operation is also very low, at NC35 or less, which is ideal for use in quiet environments.
