Panasonic AW-HE20 Specifications

Imaging

Imaging

Jump to...
  • Image Sensor

    1/2.8"-Type MOS

  • Horizontal Resolution (TV Lines)

    1000 TV Lines

  • IR Cut Filter

    No

  • Built-In ND Filter

    None

  • Focus Control

    Autofocus
    Manual Focus

Exposure Control

Jump to...
  • Shutter Type

    Electronic Rolling Shutter

  • Shutter Speed

    1/16000 to 1 Second

  • Gain

    0 to 42 dB

  • Precise Scan Rate Control

    Yes

  • Minimum Illumination

    0.4 Lux

  • Flip / Mirror Support

    Image Flip

  • White Balance

    3200 to 5600K
    Presets: ATW, AWB

  • Focal Length

    3.9 to 46.8mm

  • Optical Zoom Ratio

    12x

  • Field of View

    Horizontal: 71 to 6 Degree
    Vertical: 43 to 3 Degree
    Diagonal: 79 to 7 Degree

  • Maximum Aperture

    f/1.6 to 2.8

  • Minimum Focus Distance

    Wide: 1.0' (0.3m)
    Entire Zoom Range: 4.9' (1.5m)

Video Capture

Jump to...
  • External Recording Modes

    SDI/BNC / HDMI:
    1920 x 1080p at 25/29.97/50/59.94 fps
    1920 x 1080i at 50/59.94 fps
    1280 x 720 at 50/59.94 fps

  • Audio Recording

    2-Channel 16-Bit 48 kHz AAC LC Audio

  • Broadcast Output

    NTSC/PAL

  • IP Streaming

    H.264, H.265, MJPEG, RTP, RTSP, TCP, UDP:
    1920 x 1080 at 5.00p, 10p, 14.99p, 25p, 29.97p, 50p, 59.94p
    1280 x 720 at 5.00p, 10p, 14.99p, 25p, 29.97p, 50p, 59.94p
    640 x 360 at 5.00p, 10p, 14.99p, 25p, 29.97p, 50p, 59.94p

Control

Jump to...
  • Presets

    100 via IP

  • Movement Range

    Pan: 340 Degree (-170 to 170 Degree )
    Tilt: 120 Degree (-30 to 90 Degree )

  • Supported Control Protocols

    IP
    RS-232
    RS-422

Interface

Jump to...
  • Video I/O

    1x BNC (3G-SDI) Output
    1x HDMI Output
    1x USB-B 2.0 Output
    1x RJ45 (NDI) Output

  • Audio I/O

    1 x 1/8" (3.5mm) TRS Stereo Mic/Line Input

  • Other I/O

    1x RJ45 (LAN) Input
    1x Mini-DIN 8-Pin (RS-232) Input
    1x Mini-DIN 8-Pin (RS-232) Output
    1x RJ45 (RS-422) Output

  • Built-In Speaker

    No

  • PoE Support

    PoE+ 802.3at

  • Power I/O

    1 x Barrel (10.8 to 13.2VDC) Input

  • Power Consumption

    Device: 10.8 to 13.2 VDC at 1.3 A
    PoE: 42.5 to 57 VDC at 0.4 A

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -4 to 122 Degree F (-20 to 50 Degree C)

  • Operating Humidity

    20 to 90%

General

Jump to...
  • Color

    Black

  • OS Compatibility

    macOS 10.12 to 10.15
    Windows 10 to 11 (32/64-Bit)

  • Sound Level

    NC40

  • Dimensions (W x H x D)

    6.5 x 6.9 x 6.9" (165.1 x 176.2 x 176.1mm) (Without Protrusions, Bracket)

  • Weight

    4.2 lbs (1.9kg) (Body Only)

  • UPC Code

    885170399549

About Panasonic AW-HE20

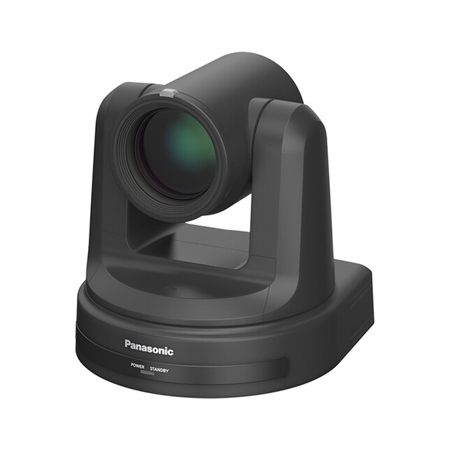

Enhance your visual experience with the Panasonic AW-HE20 Full HD PTZ Camera, a sophisticated blend of innovative technology and precision engineering. This high-tech, full HD 3G-SDI/HDMI/IP/USB PTZ camera, available in sleek black, is the ultimate solution for diverse settings, from educational institutions to conference rooms and places of worship.

Experience crystal-clear imaging with the advanced 1/2.8" MOS sensor and an unparalleled 3.9 to 46.8mm zoom lens. The AW-HE20 delivers unmatched clarity and detail, making it an ideal choice for capturing both distant subjects and intimate close-ups. With an impressive 12x optical zoom, this state-of-the-art camera ensures every visual is captured with utmost precision.

The AW-HE20 offers a robust array of output options, including 3G-SDI, HDMI, USB, and IP outputs, facilitating a seamless live video production workflow. Its RJ45 LAN streaming support puts it at the forefront of connectivity, enabling real-time sharing and broadcasting with ease. Additional features like auto white balance and RS-232/RS-422 serial control ensure ease of operation and optimal video quality.

In the era of interconnectivity, the AW-HE20's advanced IP capabilities allow users to monitor surveillance zones and execute PTZ actions from remote locations via any web browser. Its expansive 170 Degree panning range and -30 to 90 Degree tilt range provide comprehensive coverage, ensuring nothing escapes its watchful eye.

Beyond visuals, the AW-HE20 supports mic and line audio input, allowing for embedding and encoding. This ensures that the audio accompanying your visuals is crisp and clear. Audio output to IP is seamlessly supported via popular video compression formats like H.264, H.265, and MJPEG.

Installation is simplified with PoE+ (Power-over-Ethernet+), reducing the need for additional cables and lowering installation costs. Powering up the camera is as simple as using just a single LAN cable.

The AW-HE20 also boasts webcam capabilities and compatibility. Through USB and UVC communication, this PTZ camera can effortlessly integrate as a webcam with computers, adding to its repertoire of applications. Compatibility with existing FEC-40 wall mounts ensures the AW-HE20 fits seamlessly into your current setup while maintaining the sturdiness and reliability that professionals demand.

In the realm of high-definition visual capture, the Panasonic AW-HE20 PTZ Camera stands as a testament to advanced technology and precision. Elevate your visual content and experience the difference today.

Panasonic AW-HE20 Features

  • Exceptional 1/2.8" MOS sensor with 12x optical zoom for clear imaging
  • Crystal-clear 1080p video output with versatile 3G-SDI, HDMI, USB, and IP outputs
  • PoE+ (Power-over-Ethernet+) support simplifying setup and reducing installation costs
  • Convenient USB and UVC communication enabling webcam functionality for computers
  • Remote control and IP video monitoring accessible through an IP browser, from both computers and mobile devices
  • Integrated audio capabilities with input, embedding, encoding, and IP audio output via H.264/H.265/MJPEG
  • Generous 170 Degree panning and -30 to 90 Degree tilt range for comprehensive monitoring coverage
  • Advanced H.265/H.264/MJPEG video compression facilitating efficient data storage and streaming
  • Smooth RTSP/RTMP streaming compatibility to cater to diverse broadcasting needs
  • RJ45 LAN streaming support bolstering consistent online broadcasting
  • Innovative camera web interface with expanded control, including a sleek dark mode
  • Compatible with popular FEC-40 wall mounts for reliable installations

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning Full HD video with this PTZ camera, perfect for broadcasting and streaming.
  • Experience smooth, remote control with 12x optical zoom for detailed close-ups during events.
  • Easily connect via 3G-SDI, HDMI, IP, or USB for versatile integration with your existing setup.
  • Achieve professional-grade audio with the 3.5mm mic input, ensuring clear sound quality every time.
  • Enjoy flexible installation with PoE+ support, simplifying setup and reducing cable clutter.
  • Operate in low light conditions with minimum illumination of 0.4 lux, great for any environment.

What's in the box:

  • Panasonic AW-HE20 Full HD 3G-SDI/HDMI/IP/USB 12x PTZ Camera (Black)
  • AC Adaptor
  • Power Cable
  • Drop-Prevention Wire
  • Mount Bracket
  • 2x Cable Ties
  • Cable Fixing Bracket
  • Lens Cap
  • 4x M4x10mm Screws
  • 2x M4x6mm Screws
  • M2.6x5mm Screw
  • Panasonic 1 Year Limited Warranty
