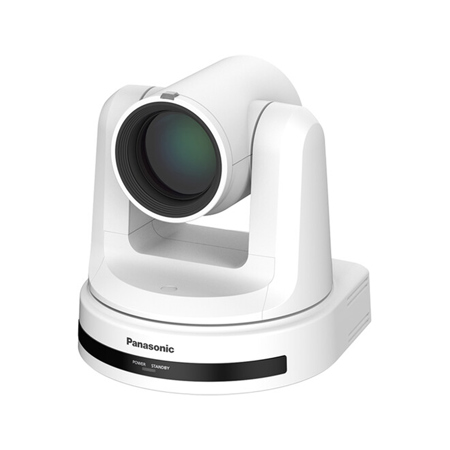

Panasonic AW-HE20 Full HD 3G-SDI/HDMI/IP/USB 12x PTZ Camera, White

SKU: PCAWHE20WP MFR: AW-HE20WP
Earn VIP Reward Points

Key Features

  • Capture crystal-clear Full HD video with this Panasonic PTZ camera's advanced 1/2.8" MOS sensor.
  • Experience smooth, precise control with a wide pan and tilt range, perfect for live events.
  • Streamline your setup using PoE+ for simultaneous power and network connectivity via Ethernet.
  • Easily integrate this PTZ camera into existing systems with 3G-SDI, HDMI, IP, and USB outputs.
  • Achieve professional-grade zoom with the 12x optical zoom, ensuring every detail is captured.
  • Remotely manage up to 100 camera presets via IP, ideal for broadcast studios and conferences.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Panasonic AW-HE20 Specifications

Imaging

Imaging

Jump to...
  • Image Sensor

    1/2.8"-Type MOS

  • Horizontal Resolution (TV Lines)

    1000 TV Lines

  • IR Cut Filter

    No

  • Built-In ND Filter

    None

  • Focus Control

    Autofocus
    Manual Focus

Exposure Control

Jump to...
  • Shutter Type

    Electronic Rolling Shutter

  • Shutter Speed

    1/16000 to 1 Second

  • Gain

    0 to 42 dB

  • Precise Scan Rate Control

    Yes

  • Minimum Illumination

    0.4 Lux

  • Flip / Mirror Support

    Image Flip

  • White Balance

    3200 to 5600K
    Presets: ATW, AWB

  • Focal Length

    3.9 to 46.8mm

  • Optical Zoom Ratio

    12x

  • Field of View

    Horizontal: 71 to 6 Degree
    Vertical: 43 to 3 Degree
    Diagonal: 79 to 7 Degree

  • Maximum Aperture

    f/1.6 to 2.8

  • Minimum Focus Distance

    Wide: 1.0' (0.3m)
    Entire Zoom Range: 4.9' (1.5m)

Video Capture

Jump to...
  • External Recording Modes

    SDI/BNC / HDMI:
    1920 x 1080p at 25/29.97/50/59.94 fps
    1920 x 1080i at 50/59.94 fps
    1280 x 720 at 50/59.94 fps

  • Audio Recording

    2-Channel 16-Bit 48 kHz AAC LC Audio

  • Broadcast Output

    NTSC/PAL

  • IP Streaming

    H.264, H.265, MJPEG, RTP, RTSP, TCP, UDP:
    1920 x 1080 at 5.00p, 10p, 14.99p, 25p, 29.97p, 50p, 59.94p
    1280 x 720 at 5.00p, 10p, 14.99p, 25p, 29.97p, 50p, 59.94p
    640 x 360 at 5.00p, 10p, 14.99p, 25p, 29.97p, 50p, 59.94p

Control

Jump to...
  • Presets

    100 via IP

  • Movement Range

    Pan: 340 Degree (-170 to 170 Degree )
    Tilt: 120 Degree (-30 to 90 Degree )

  • Supported Control Protocols

    IP
    RS-232
    RS-422

Interface

Jump to...
  • Video I/O

    1x BNC (3G-SDI) Output
    1x HDMI Output
    1x USB-B 2.0 Output
    1x RJ45 (NDI) Output

  • Audio I/O

    1 x 1/8" (3.5mm) TRS Stereo Mic/Line Input

  • Other I/O

    1x RJ45 (LAN) Input
    1x Mini-DIN 8-Pin (RS-232) Input
    1x Mini-DIN 8-Pin (RS-232) Output
    1x RJ45 (RS-422) Output

  • Built-In Speaker

    No

  • PoE Support

    PoE+ 802.3at

  • Power I/O

    1 x Barrel (10.8 to 13.2VDC) Input

  • Power Consumption

    Device: 10.8 to 13.2 VDC at 1.3 A
    PoE: 42.5 to 57 VDC at 0.4 A

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -4 to 122 Degree F (-20 to 50 Degree C)

  • Operating Humidity

    20 to 90%

General

Jump to...
  • Color

    White

  • OS Compatibility

    macOS 10.12 to 10.15
    Windows 10 to 11 (32/64-Bit)

  • Sound Level

    NC40

  • Dimensions (W x H x D)

    6.5 x 6.9 x 6.9" (165.1 x 176.2 x 176.1mm) (Without Protrusions, Bracket)

  • Weight

    4.2 lbs (1.9kg) (Body Only)

  • UPC Code

    885170399556

About Panasonic AW-HE20

For professionals seeking an advanced solution to their video conferencing and surveillance needs, the AW-HE20 Full HD 3G-SDI/HDMI/IP/USB 12x PTZ Camera in white is a sophisticated choice that delivers exceptional performance. This state-of-the-art PTZ camera is engineered to enhance teleworking experiences, from online meetings to virtual classrooms, by providing crystal-clear high-definition video quality, a broad shooting angle, and a powerful high-magnification zoom.

The AW-HE20 stands out with its high-tech capabilities, ensuring more effective communication through stable video transmission and superior image clarity. Its compatibility with a diverse array of systems, including SDI, HDMI, USB, and IP, offers users unparalleled flexibility in camera setup and operation. This innovative camera is designed to integrate seamlessly into various environments, making it a versatile tool for a range of professional applications.

As a high-quality entry model, the AW-HE20 boasts a compact design that allows for discreet installation in tight spaces without compromising functionality. This camera is Zoom Certified as a USB Camera, supporting UVC for easy integration with existing USB-based systems. The convenience of a single LAN cable connection for multiple camera units to a PC simplifies installation, enabling a clean and efficient setup that minimizes cable clutter.

The AW-HE20's PTZ functionality, with its 12x optical zoom, empowers users to capture detailed footage from a distance and adjust framing with precision, all controlled remotely for maximum convenience. Additionally, the free PTZ Virtual USB Driver software extends the camera's versatility, allowing it to function as a web camera for online conferencing services via LAN cable, even in scenarios where a USB cable cannot reach the camera's installation point.

With its dedicated mode for video conferencing (USB: Video Conference), the AW-HE20 is an ideal solution for web conferencing, ensuring professional-grade video quality that meets the demands of modern communication. Whether for corporate boardrooms, educational institutions, or high-security surveillance, the AW-HE20 Full HD PTZ Camera is engineered to deliver reliable, top-tier performance for any setting that requires cutting-edge video technology.

Panasonic AW-HE20 Features

  • High-Quality Video Streaming for More Comfortable Online Communication
  • Excellent System Flexibility to Achieve Smart Wiring and Smooth Operation
  • Compact Size and Excellent Functionality that do not Disturb the existing Video Streaming Environment
  • New camera web interface with expanded control and dark mode

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture crystal-clear Full HD video with this Panasonic PTZ camera's advanced 1/2.8" MOS sensor.
  • Experience smooth, precise control with a wide pan and tilt range, perfect for live events.
  • Streamline your setup using PoE+ for simultaneous power and network connectivity via Ethernet.
  • Easily integrate this PTZ camera into existing systems with 3G-SDI, HDMI, IP, and USB outputs.
  • Achieve professional-grade zoom with the 12x optical zoom, ensuring every detail is captured.
  • Remotely manage up to 100 camera presets via IP, ideal for broadcast studios and conferences.

What's in the box:

  • Panasonic AW-HE20 Full HD 3G-SDI/HDMI/IP/USB 12x PTZ Camera (White)
  • AC Adaptor
  • Power Cable
  • Drop-Prevention Wire
  • Mount Bracket
  • 2x Cable Ties
  • Cable Fixing Bracket
  • Lens Cap
  • 4x M4x10mm Screws
  • 2x M4x6mm Screws
  • M2.6x5mm Screw
  • Panasonic 1 Year Limited Warranty
